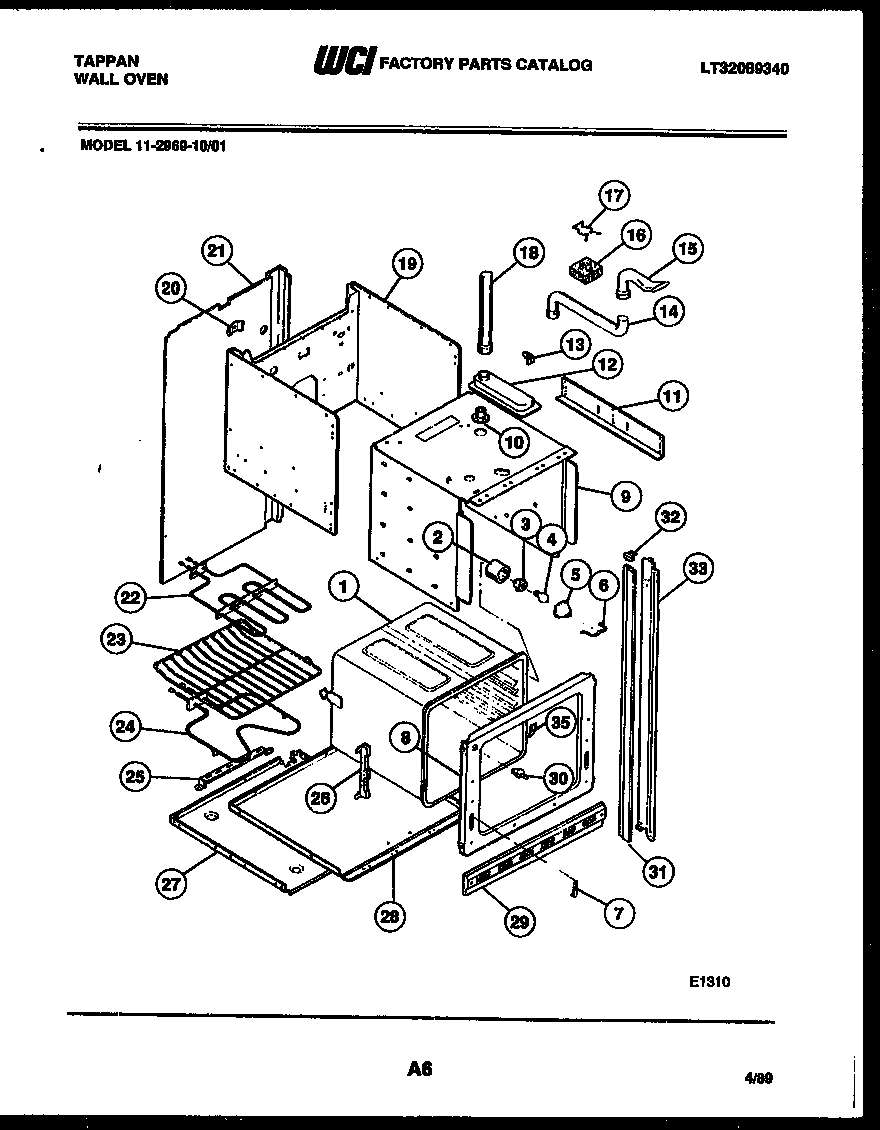

11-2969-00-01 05 – BODY PARTS

Products

Position	Product
*22887	WCI 3204204
*22887	BRACKET-OVEN VENT
*22887	CLIP CAPILLARY (2)
1	WCI 3204205
2	WCI 3016243
3	316116400 Frigidaire Oven Light Socket
4	316538904 Frigidaire Oven Lamp Light
5	5304524341 Frigidaire Lens
6	WCI 3016244
7	WCI 3019063
8	WCI 3204203
9	WCI 3202445
10	TUBE-OVEN VENT
11	SUPPORT-HEIGHT ADJUSTMENT (2)
12	WCI 3016324
13	WCI 3016326
14	DUCT-VENT PIPE
15	WCI 3016331
16	WCI 3016302
17	Clip,insulator
18	Duct,oven vent ,center
19	WCI 3202448
20	WCI 3016281
21	WCI 3203859
22	5303016247 Frigidaire Broil Element
23	WCI 3202442
24	318255101 Frigidaire Oven Bake Element
25	WCI 3016248
26	WCI 3201631
27	WCI 3202447
28	SHIELD-INSULATION
29	WCI 3202237
30	WCI 3051531
31A	WCI 3016321
31	WCI 3016322
32	TRIM-CAP RH
32A	TRIM-CAP LH
33	WCI 3202185
35	WCI 3202082
