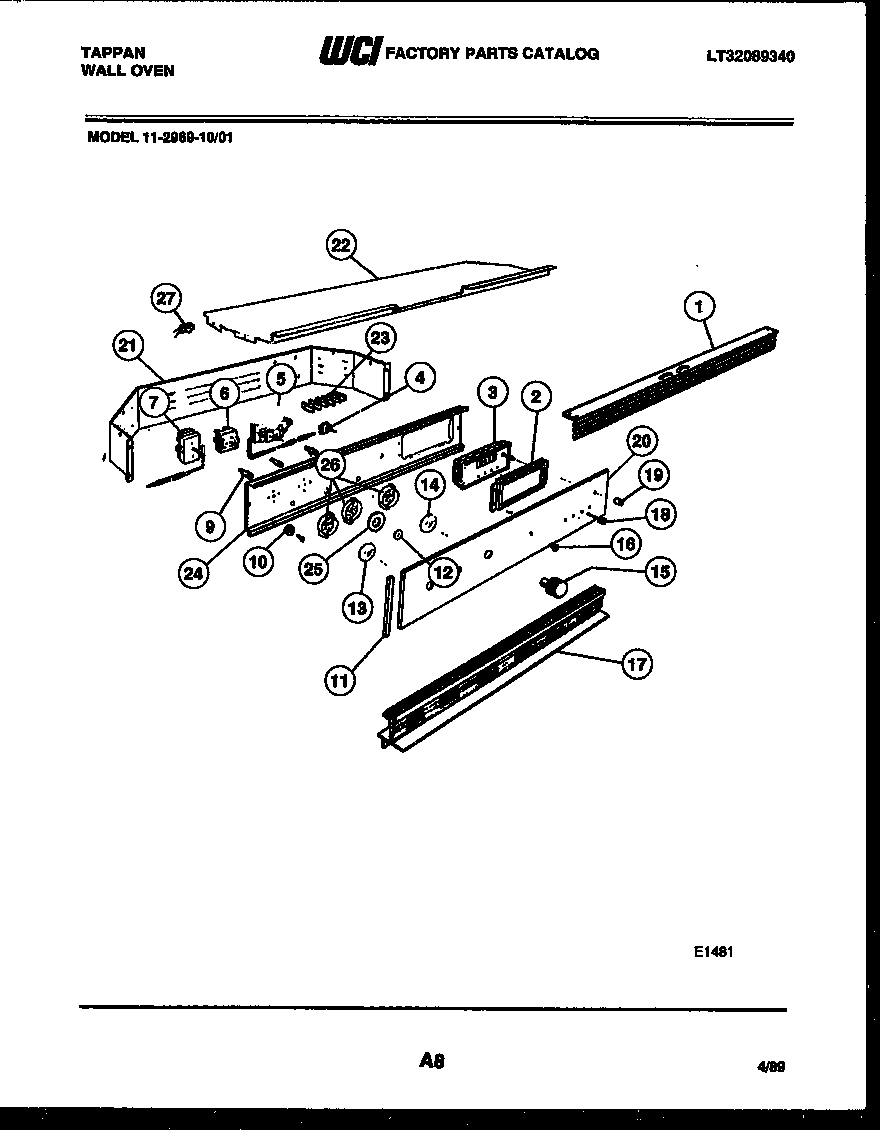

11-2969-00-01 06 – CONTROL PANEL

Products

PositionProduct
*22889SLEEVE-IND IT (4)
1WCI 3203897
2WCI 3202088
3WCI 3202089
4WCI 3202196
5WCI 3202198
6WCI 3202197
7WCI 3202091
9AWCI 3202193
9LIGHT-IND- OVEN (2)
9BWCI 3202195
10WCI 3202093
11TRIM-CONT. PANEL GLASS (2)
12WCI 3203884
13DIAL – THERM UPPER
14DIAL – THERM LOWER
15KNOB (3)
16WCI 3016305
17TRIM-CENT. VENT
18BUTTON-CLOCK
19WCI 3016292
20GLASS-CONTROL PANEL
21HOUSING-CONT
22COVER-CONT HOUSING
235304409888 Frigidaire Oven Terminal Block with Hardware
24PLATE-INST. MTG
25DIAL-SEL. SW.
26LAMP ASSY.-DIAL (3)
27SWITCH-THERMAL
