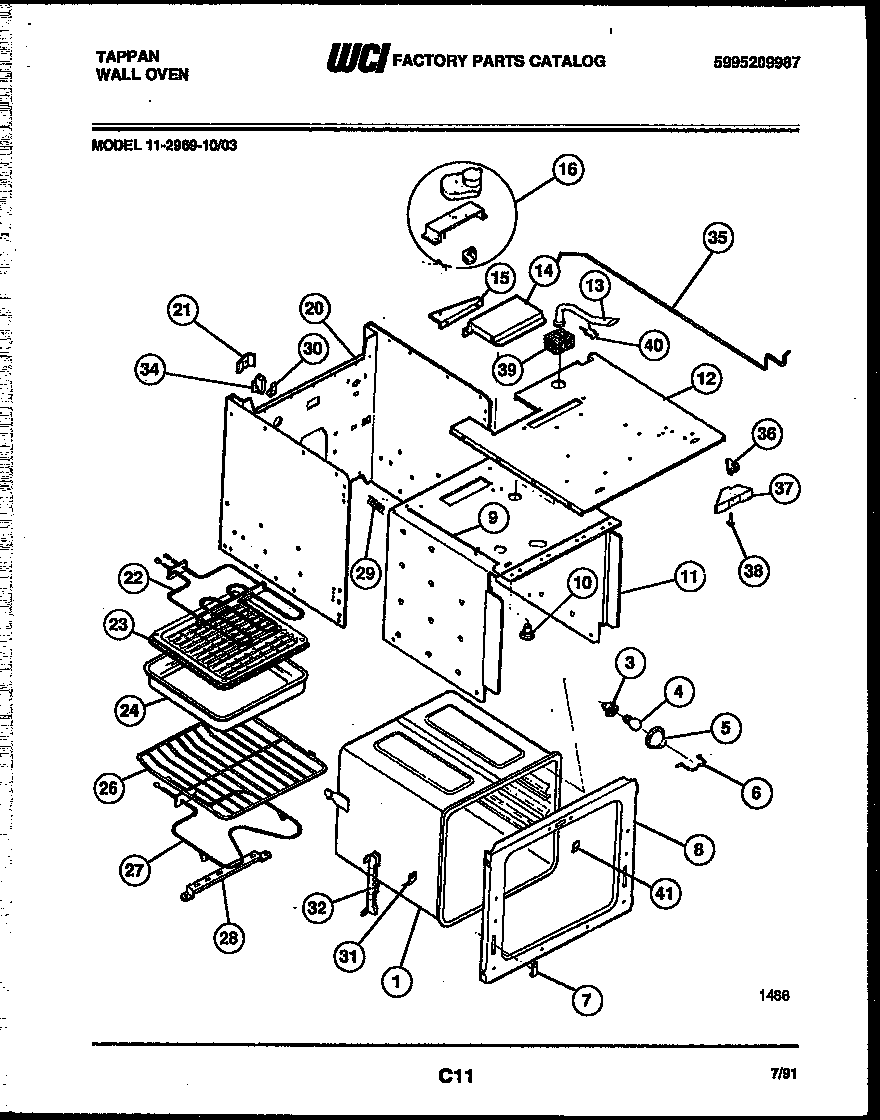

11-2969-00-03 04 – BODY PARTS

Products

Position	Product
*54213	WCI 5300009126
*54213	INSULATION – BACK (NON-ILLUSTRATED)
*54213	WCI 19100180295
*54213	WCI 3016319
*54212	WCI 5303271040
1	SWITCH
3	316116400 Frigidaire Oven Light Socket
4	316538904 Frigidaire Oven Lamp Light
5	5304524341 Frigidaire Lens
6	WIRE, GLASS RETAINER
7	WCI 3019063
8	WCI 3202449
9	WCI 3202077
10	TUBE-OVEN VENT
11	WCI 3202445
12	WCI 3203747
13	WCI 3016301
14	WCI 3016296
15	BRACKET-MOTOR MTG
16	WCI 5303016242
20	WCI 3203861
21	WCI 3016281
22	5303016247 Frigidaire Broil Element
23	WCI 5303017712
24	WCI 5303016973
26	WCI 3202442
26	WCI 3202443
27	318255101 Frigidaire Oven Bake Element
28	WCI 3016248
29	WCI 3204114
30	WCI 3202384
31	WCI 3201632
32	WCI 3201631
34	SWITCH – OVEN LIGHT
35	WCI 3016241
36	LATCH-DOOR
37	HOUSING-DOOR LATCH
38	AXLE – HINGE (2)
39	WCI 3016302
40	Clip,insulator
41	WCI 3202082
