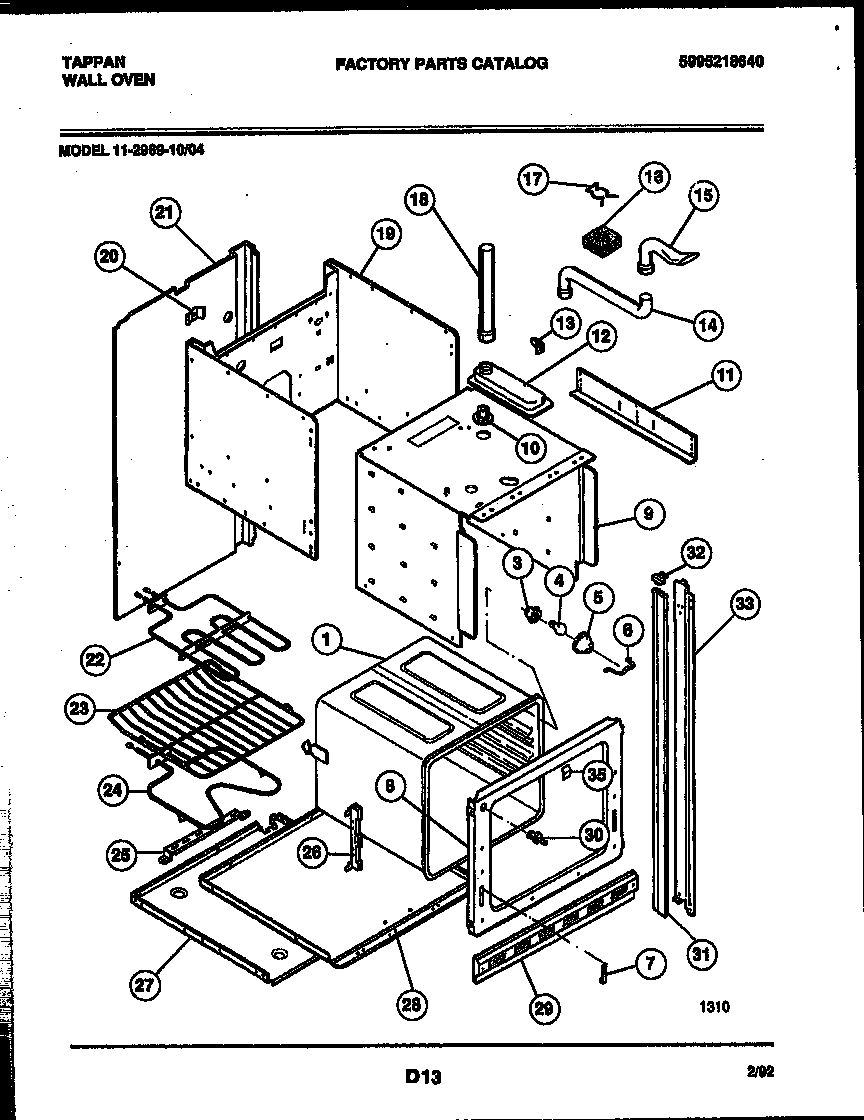

11-2969-00-04 05 – BODY PARTS

Products

PositionProduct
*66262WCI 3201632
*662625303284616 Frigidaire Range Bulb Clip Thermostat
*66261BRACKET-OVEN VENT
*66261WCI 3204204
1WCI 3204205
3316116400 Frigidaire Oven Light Socket
4316538904 Frigidaire Oven Lamp Light
55304524341 Frigidaire Lens
6WIRE, GLASS RETAINER
7WCI 3019063
8WCI 3204203
9WCI 3202445
10TUBE-OVEN VENT
11SUPPORT-HEIGHT ADJUSTMENT (2)
12WCI 3016324
13WCI 3016326
14DUCT-VENT PIPE
15WCI 3016331
16WCI 3016302
17Clip,insulator
18Duct,oven vent ,center
19WCI 3202448
20WCI 3016281
21WCI 3203859
225303016247 Frigidaire Broil Element
23WCI 3202442
24318255101 Frigidaire Oven Bake Element
25WCI 3016248
26WCI 3201631
27WCI 3202447
28SHIELD-INSULATION
29WCI 3202237
30WCI 5301314211
31WCI 3016322
31AWCI 3016321
32AWCI 5303271107
32WCI 5303271106
33TRIM-BODYSIDE, (2)
35WCI 3202082
