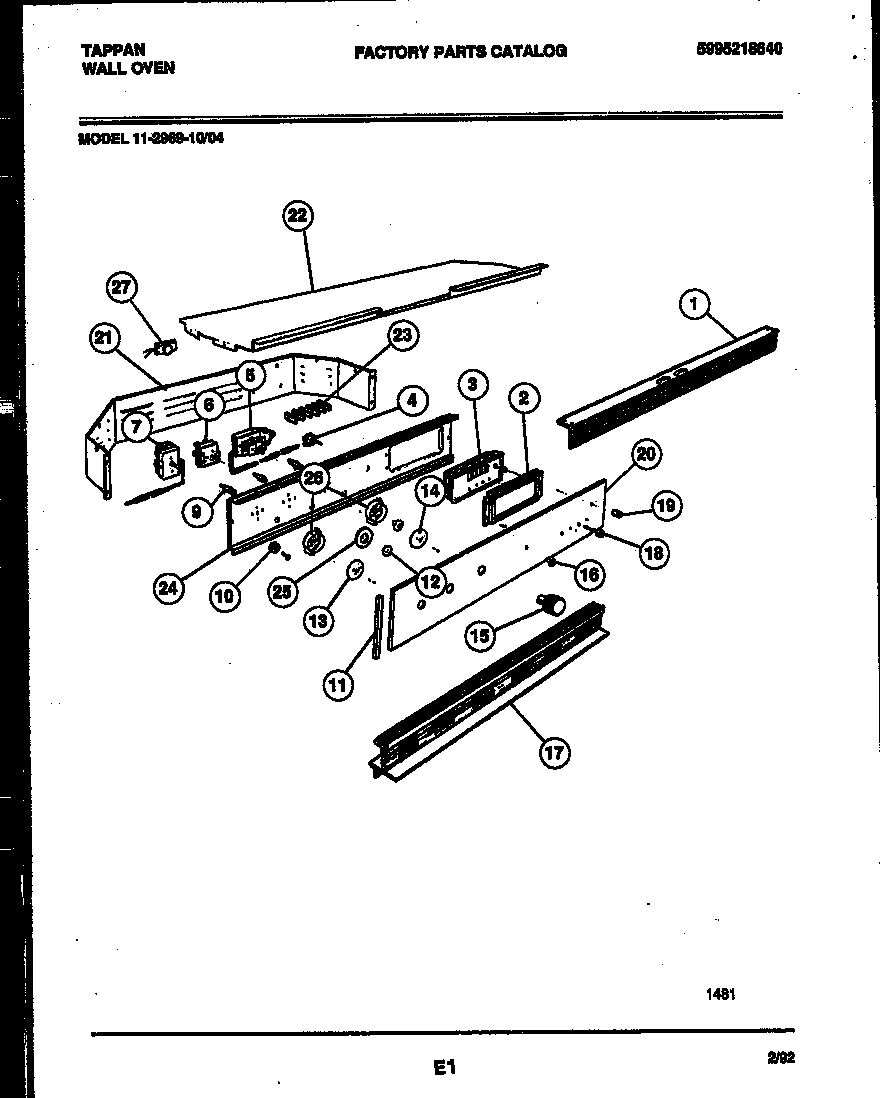

11-2969-00-04 06 – CONTROL PANEL

11-2969-00-04 06 – CONTROL PANEL

Written by

in

11-2969-00-04 06 – CONTROL PANEL

Products

PositionProduct
1WCI 5303284619
2WCI 3202088
3WCI 3202089
4SWITCH/OVEN LIGHT, PUSH BUTTON, BLACK, FLUOR-OVEN
5WCI 3202198
6WCI 3202197
7WCI 5303206499
9BWCI 3202195
9LIGHT-IND- OVEN (2)
9AWCI 3202193
10WCI 3202093
11TRIM-CONTROL PNL GLASS
12WCI 3203884
13DIAL – THERM UPPER
14DIAL – THERM LOWER
15KNOB (3)
16WCI 5303016305
17TRIM-CENT. VENT
18WCI 3131730
19WCI 5303016292
20GLASS-CONTROL PANEL
21HOUSING-CONT
22COVER-CONT HOUSING
235304409888 Frigidaire Oven Terminal Block with Hardware
24PLATE-INSTRUMENT MTG
25DIAL-SEL. SW.
26LAMP ASSY.-DIAL (3)
27SWITCH-THERMAL
