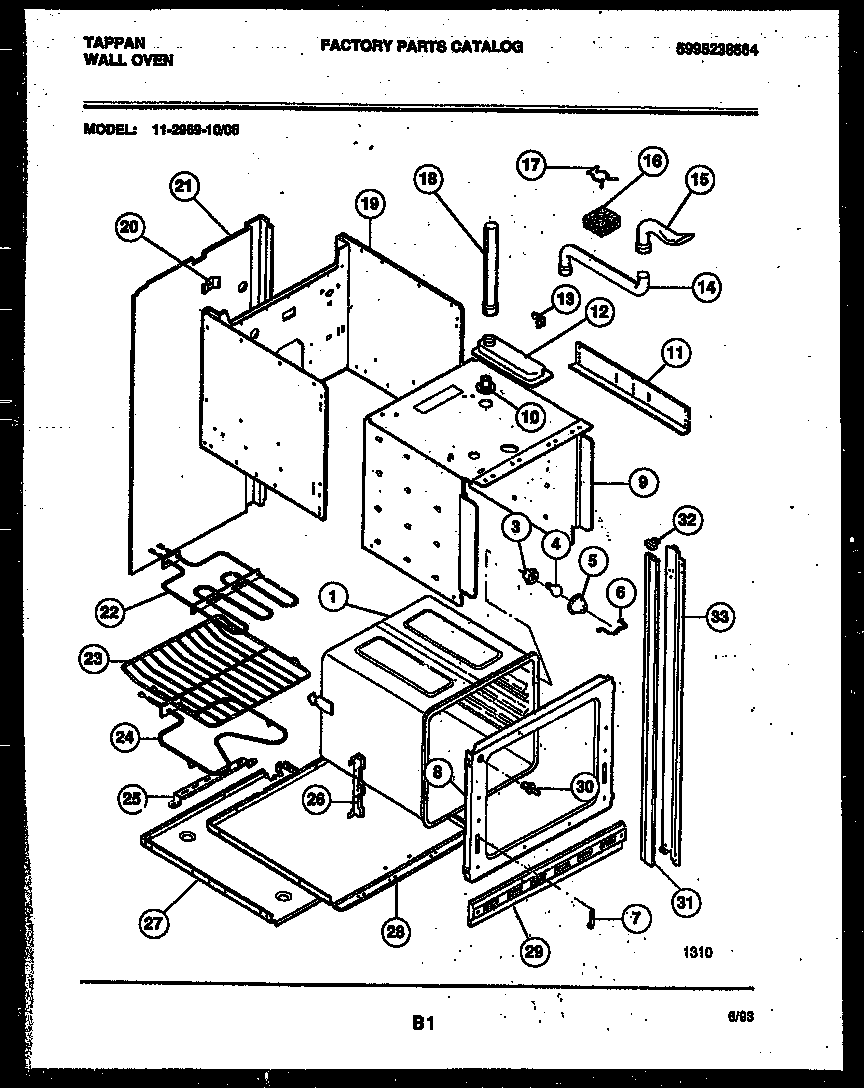

11-2969-00-05 05 – BODY PARTS

Products

Position	Product
*85877	WCI 3204204
*85877	WCI 5303271040
*85877	5303284616 Frigidaire Range Bulb Clip Thermostat
1	LINER-OVEN ASSY
3	SOCKET-LIGHT/LAMP, OVEN
4	316538904 Frigidaire Oven Lamp Light
5	5304524341 Frigidaire Lens
6	WIRE, GLASS RETAINER
7	WCI 3019063
8	FRONT-OVEN
9	WCI 3202445
10	TUBE-OVEN VENT
11	SUPPORT-HEIGHT ADJUSTMENT (2)
12	WCI 3016324
13	WCI 3016326
14	DUCT-VENT PIPE
15	WCI 3016331
16	WCI 3016302
17	Clip,insulator
18	Duct,oven vent ,center
19	WCI 3202448
20	WCI 3016281
21	WCI 3203859
22	5303016247 Frigidaire Broil Element
23	WCI 5303299366
24	318255101 Frigidaire Oven Bake Element
25	WCI 3016248
26	WCI 3201631
27	WCI 3202447
28	SHIELD-INSULATION
29	TRIM-BASE
30	WCI 5301314211
31A	WCI 3016322
31	WCI 3016321
32	WCI 5303271106
32A	WCI 5303271107
33	TRIM-BODYSIDE, (2)
