11-4369-00-01 02 – CONTROL PANEL

11-4369-00-01 02 – CONTROL PANEL

Written by

in

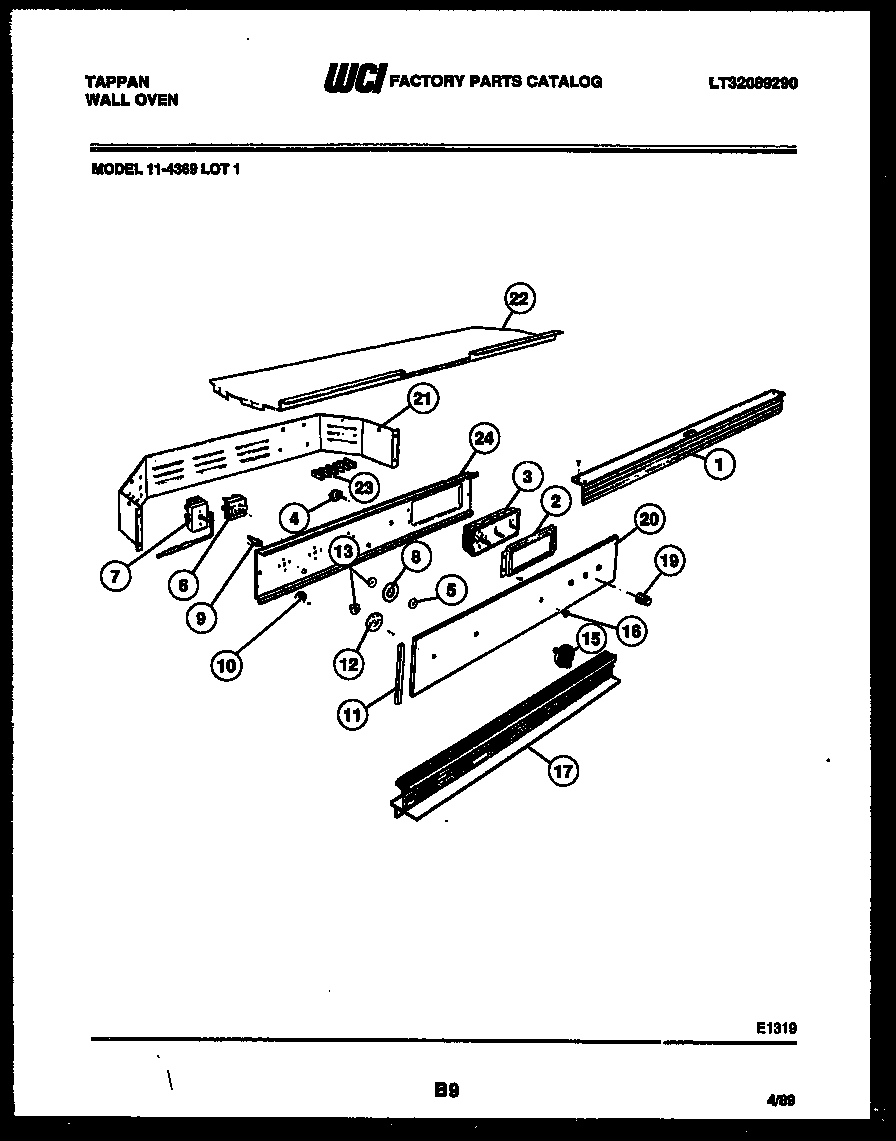

11-4369-00-01 02 – CONTROL PANEL

Products

PositionProduct
*23060SLEEVE-IND IT (4)
1WCI 3203938
2WCI 3202088
3WCI 3203878
4WCI 3202196
5WCI 3203884
6WCI 3203879
7WCI 3203880
8DIAL-SELECTOR SWITCH
9LIGHT-IND- OVEN (2)
10WCI 3202093
11TRIM-CONT. PANEL GLASS (2)
12DIAL-THERM (2)
13SPACER-DIAL (3)
15KNOB (3)
16WCI 3016305
17WCI 3202101
19KNOB-CLOCK
20WCI 3203937
21WCI 3016250
22COVER – CONT HOUSING
235304409888 Frigidaire Oven Terminal Block with Hardware
24PLATE – INST MTG
