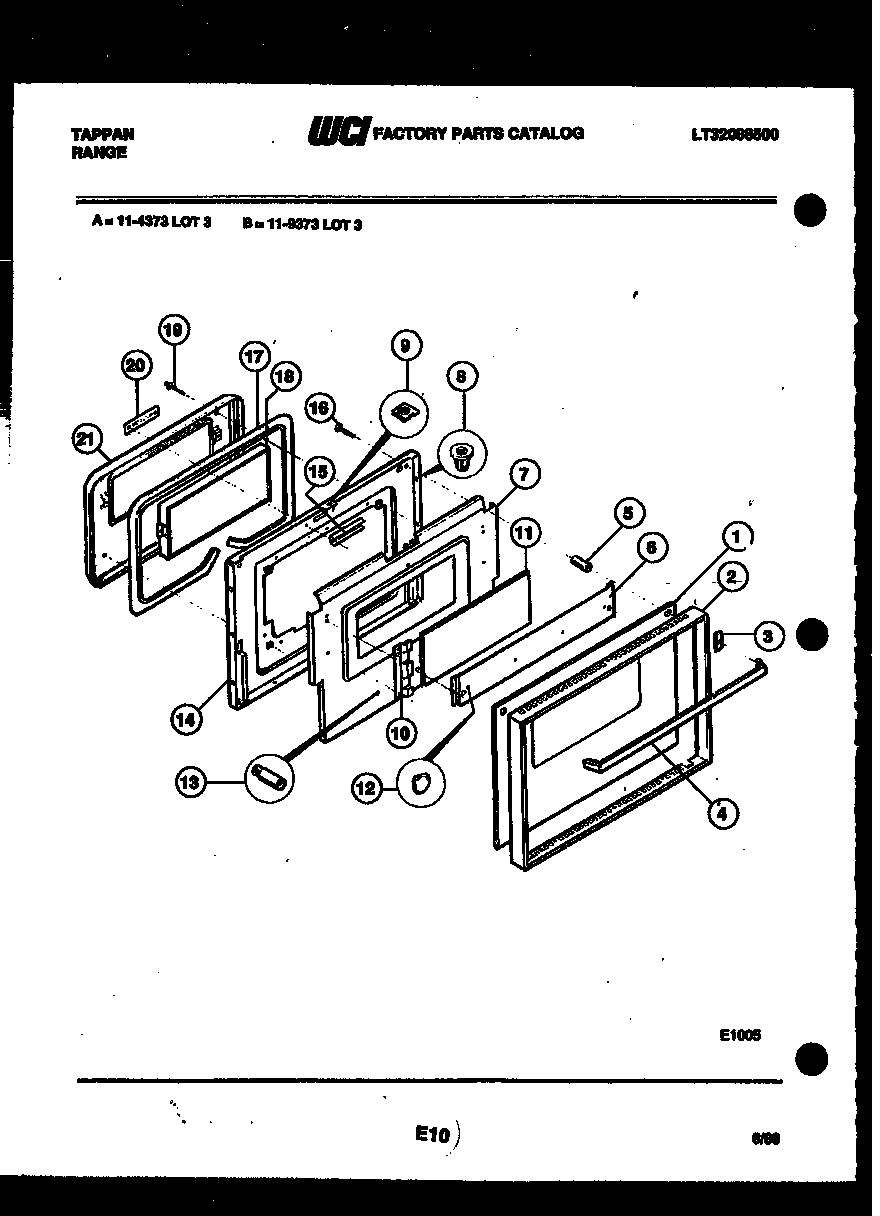

11-4373-00-03 03 – UPPER DOOR PARTS

11-4373-00-03 03 – UPPER DOOR PARTS

Written by

in

11-4373-00-03 03 – UPPER DOOR PARTS

Products

PositionProduct
*174705303300265 Frigidaire Oven Screw
*17471INSULATION 1/8 X 14 X 18 CERAFELT
*17471INSULATION 1/4 X 18 1/2 X 24
*17470INSULATION 1 1/2 X 14 X 18
*17470INSULATION 1 1/2 X 18 1/2 X 24
1WCI 276T101P09
2ASCREW-DR ASSY 8-18 X 1/2“ PH WR HD SPC (3)
2BSCREW-DR ASSY 8A X 3/8“ PH TR HD (10)
2WCI 740T468P05
3SPACER-HANDLE (2)
4WCI 296T055P08
5WCI 665T131P06
6WCI 655T363F03-18
7WCI 655T396F01
8FSTNR-SPACER (2)
9FSTNR 8AU TYPE (3)
10WCI 072T760F01-18
11GLASS, MIDDLE
12PLUG BTTN-FRNT FRAME (4)
13FASTENER-SPACER (5/8“ NYLON) (5)
13FASTENER-SPACER 1/2
14LINER-DOOR
15CHANNEL-REINFORCEMENT
16WCI 636T138P04
17WCI 641T004P01
18GLASS-PACKAGE (VIS.)
19SCREW SHIELD
20WCI 3013608
21WCI 381T064W04-86
22WCI 241T017P96
