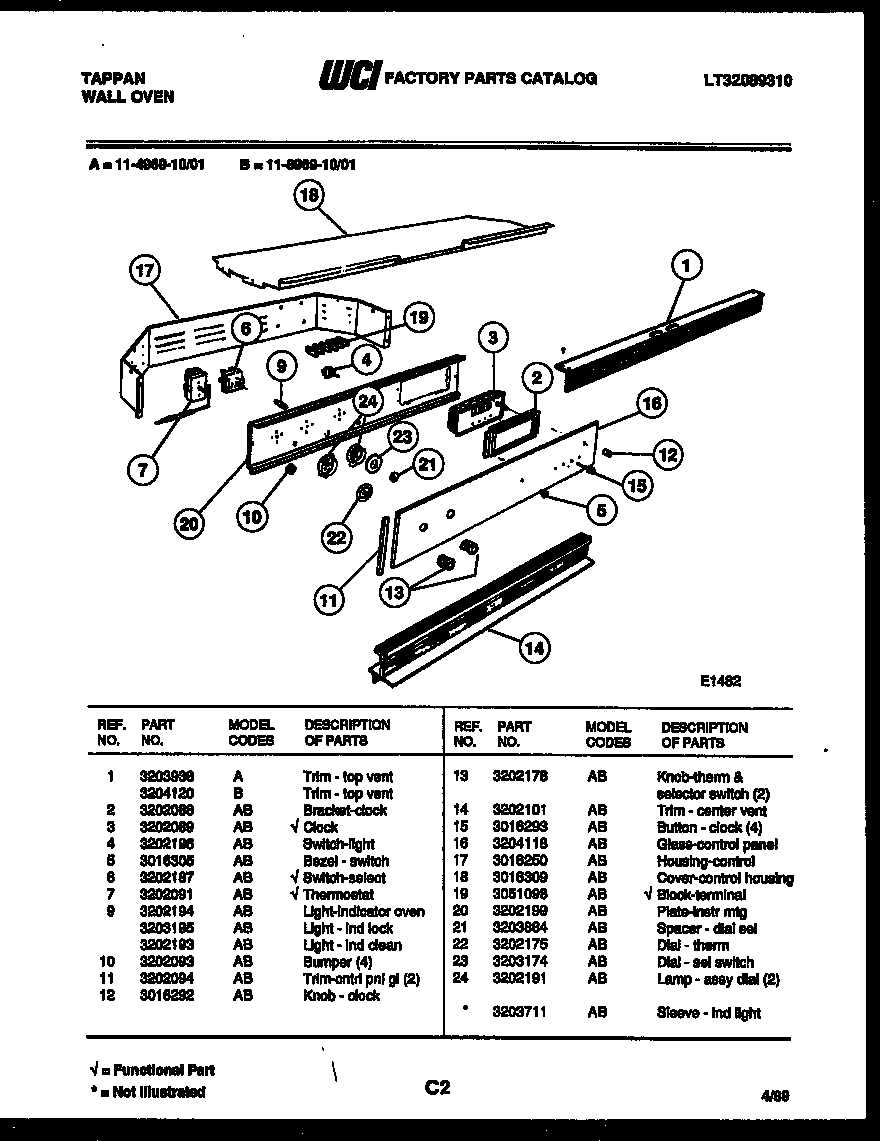

11-4969-00-01 02 – CONTROL PANEL

Products

PositionProduct
*23104SLEEVE-IND IT (4)
1WCI 3203938
2WCI 3202088
3WCI 3202089
4WCI 3202196
5WCI 3016305
6WCI 3202187
7WCI 3202091
9LIGHT-IND- OVEN (2)
9AWCI 3203195
9BWCI 3202193
10WCI 3202093
11TRIM-CONT. PANEL GLASS (2)
12WCI 3016292
13KNOB (3)
14WCI 3202101
15BUTTON-CLOCK
16BELT
17WCI 3016250
18COVER – CONT HOUSING
195304409888 Frigidaire Oven Terminal Block with Hardware
20PLATE – INST MTG
21WCI 3203884
22DIAL – THERM UPPER
23WCI 3203174
24LAMP ASSY.-DIAL (3)
