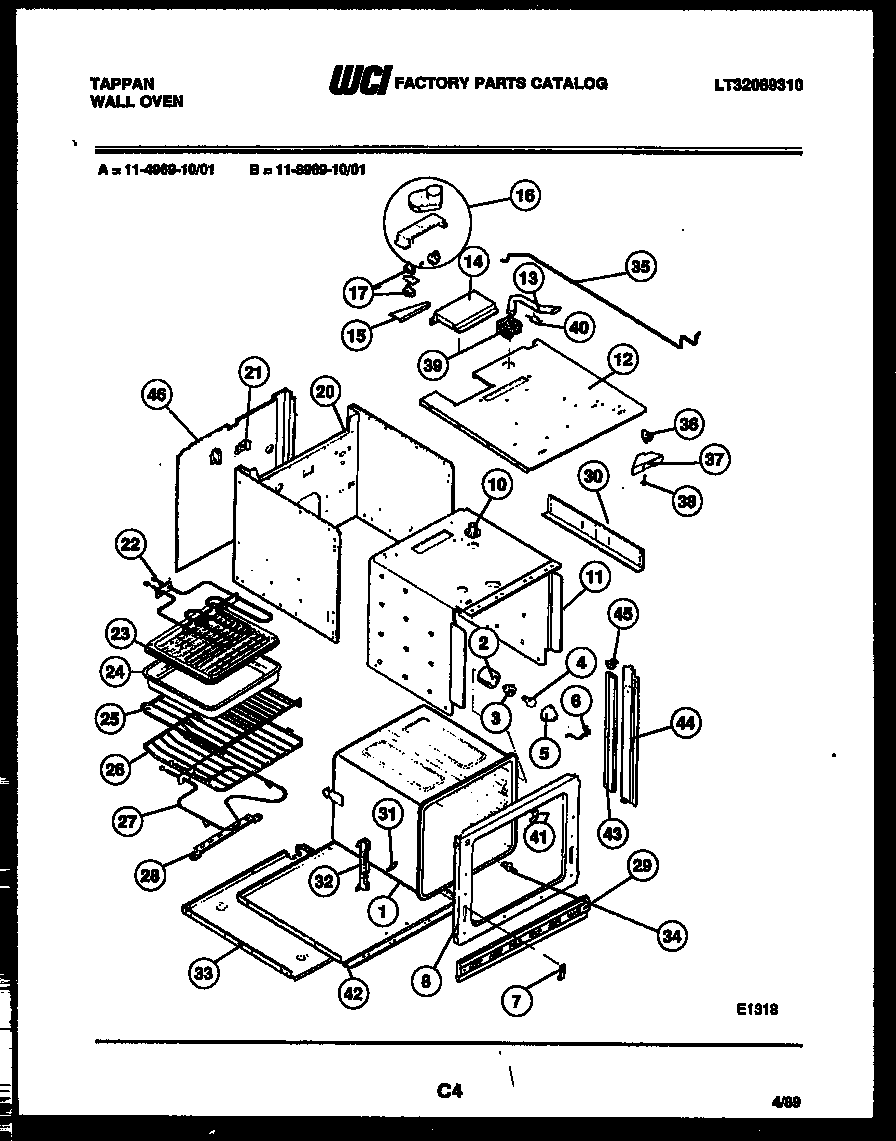

11-4969-00-01 04 – BODY PARTS

Products

Position	Product
*23108	INSULATION-WRAP
*23108	CLIP CAPILLARY (2)
*23108	INSULATION – BACK (NON-ILLUSTRATED)
*23108	PLUG BUTTON (NON-ILLUSTRATED)
1	WCI 3016269
2	WCI 3016243
3	316116400 Frigidaire Oven Light Socket
4	316538904 Frigidaire Oven Lamp Light
5	5304524341 Frigidaire Lens
6	WCI 3016244
7	WCI 3019063
8	WCI 3019070
10	WCI 3016245
11	WCI 3016272
12	WCI 3016249
13	WCI 3016301
14	WCI 3016296
15	BRACKET-MOTOR MTG
16	WCI 3016242
17	WCI 3202430
20	WCI 3016275
21	WCI 3016281
22	5303016247 Frigidaire Broil Element
23	WCI 3019066
24	WCI 3018808
25	318345216 Frigidaire Oven Rack
27	318255101 Frigidaire Oven Bake Element
28	WCI 3016248
29	WCI 3016283
30	SUPPORT-HEIGHT ADJUSTMENT (2)
31	WCI 3201632
32	WCI 3201631
33	WCI 3016277
34	318394803 Frigidaire Oven Switch
35	WCI 3016241
36	WCI 3202387
37	WCI 3016271
38	WCI 08012004
39	WCI 3016302
40	Clip,insulator
41	WCI 3202082
42	SHIELD-INSUL BASE
43A	WCI 3016280
43	WCI 3016279
44	WCI 3203745
45	TRIM-CAP RH
45A	TRIM-CAP LH
46	WCI 3016314
