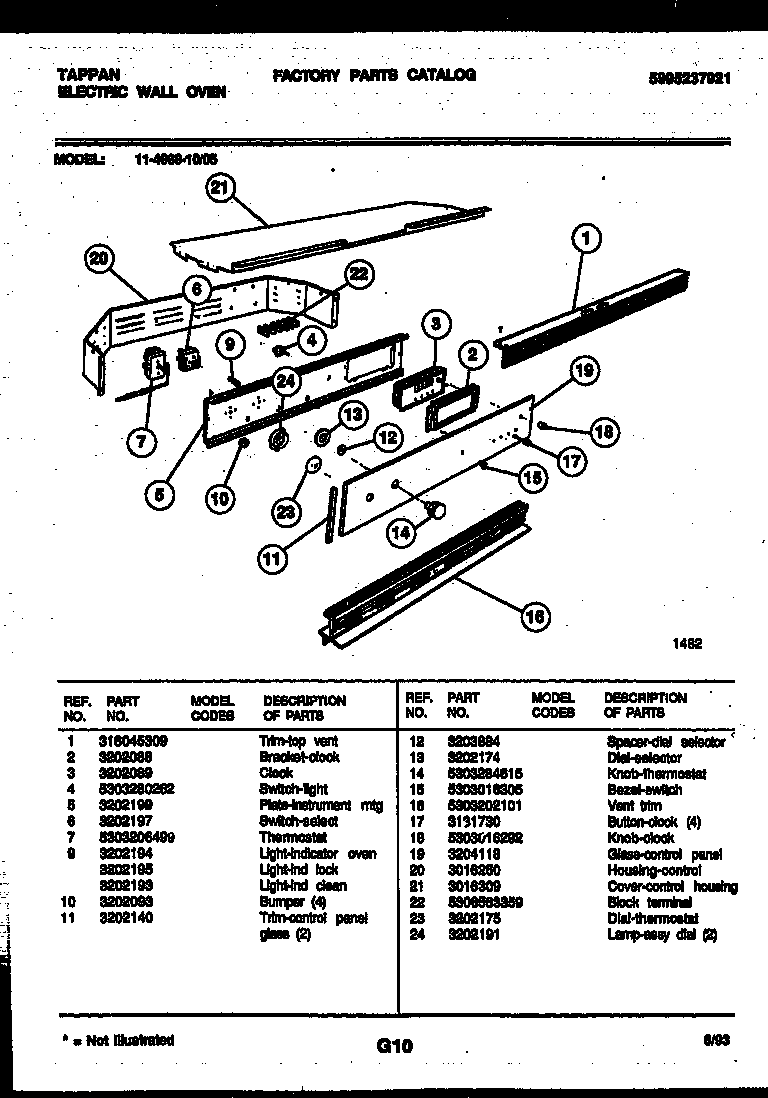

11-4969-00-05 02 – CONTROL PANEL

11-4969-00-05 02 – CONTROL PANEL

Written by

in

11-4969-00-05 02 – CONTROL PANEL

Products

PositionProduct
1WCI 316045309
2WCI 3202088
3WCI 3202089
4SWITCH-OVEN LIGHT, PUSH
5PLATE – INST MTG
6WCI 3202197
7WCI 5303206499
9BWCI 3202193
9AWCI 3202195
9LIGHT-IND- OVEN (2)
10WCI 3202093
11TRIM-CONTROL PNL GLASS
12WCI 3203884
13DIAL-SEL. SW.
14KNOB (3)
15WCI 5303016305
16WCI 5303202101
17WCI 3131730
18WCI 5303016292
19BELT
20WCI 3016250
21COVER – CONT HOUSING
225304409888 Frigidaire Oven Terminal Block with Hardware
23DIAL – THERM UPPER
24LAMP ASSY.-DIAL (3)
