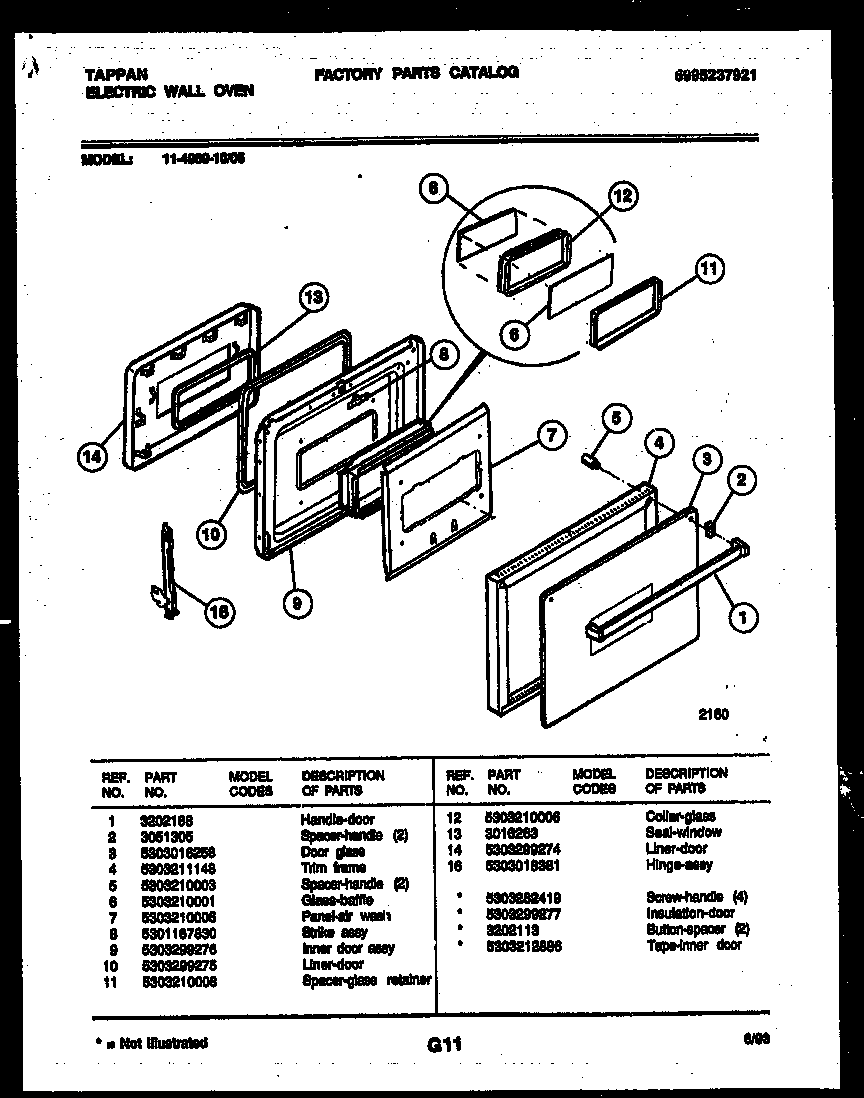

11-4969-00-05 03 – DOOR PARTS

11-4969-00-05 03 – DOOR PARTS

Written by

in

11-4969-00-05 03 – DOOR PARTS

Products

PositionProduct
*85737Plug,button
*85737SCREW, HANDLE
*85737WCI 5303299277
*85737TAPE-INNER DOOR 45“
1WCI 3202188
2SUPPORT-FLU LIGHT RECEPT
3WCI 5303016258
4WCI 5303211148
5SPACER-HANDLE MTG, (2)
6GLASS – BAFFLE (2)
7WCI 5303210005
8WCI 5301167830
9INNER DOOR ASSEMBLY
10SEAL, DOOR
11SPACER-GLASS
12WCI 5303210006
13WCI 3016263
14WCI 5303299274
16WCI 5303018381
