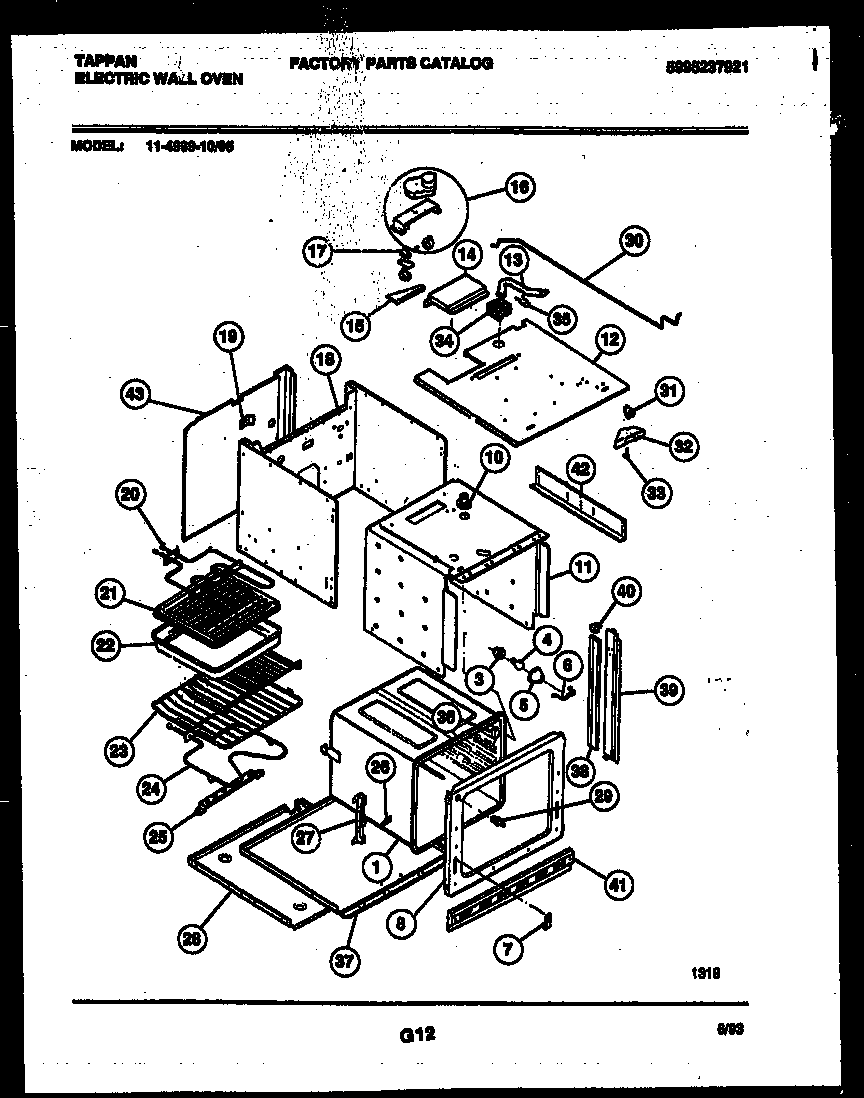

11-4969-00-05 04 – BODY PARTS

Products

Position	Product
*85743	WCI 19100180235
*85743	CABLE CLIP (2)
*85743	INSULATION – BACK (NON-ILLUSTRATED)
*85743	INSULATION (NON-ILLUSTRATED)
1	WCI 5303296870
3	SOCKET-LIGHT/LAMP, OVEN
4	316538904 Frigidaire Oven Lamp Light
5	5304524341 Frigidaire Lens
6	WIRE, GLASS RETAINER
7	WCI 3019063
8	WCI 5303299251
10	TUBE-OVEN VENT
11	WCI 5303299270
12	WCI 3016249
13	WCI 3016301
14	WCI 3016296
15	BRACKET-MOTOR MTG
16	WCI 5303016242
17	WCI 3202430
18	WCI 3016275
19	WCI 3016281
20	5303016247 Frigidaire Broil Element
21	WCI 3205234
22	WCI 5303292159
23	318345216 Frigidaire Oven Rack
24	318255101 Frigidaire Oven Bake Element
25	WCI 3016248
26	WCI 3201632
27	WCI 3201631
28	WCI 3016277
29	318394803 Frigidaire Oven Switch
30	WCI 3016241
31	LATCH-DOOR
32	WCI 3019069
33	AXLE – HINGE (2)
34	WCI 3016302
35	Clip,insulator
36	PLUG BUTTON (NON-ILLUSTRATED)
37	SHIELD-INSUL BASE
38	WCI 3016279
38A	WCI 3016280
39	WCI 5303291238
40	WCI 5303271106
40A	WCI 5303271107
41	WCI 5303299253
42	SUPPORT-HEIGHT ADJUSTMENT (2)
43	WCI 3016314
