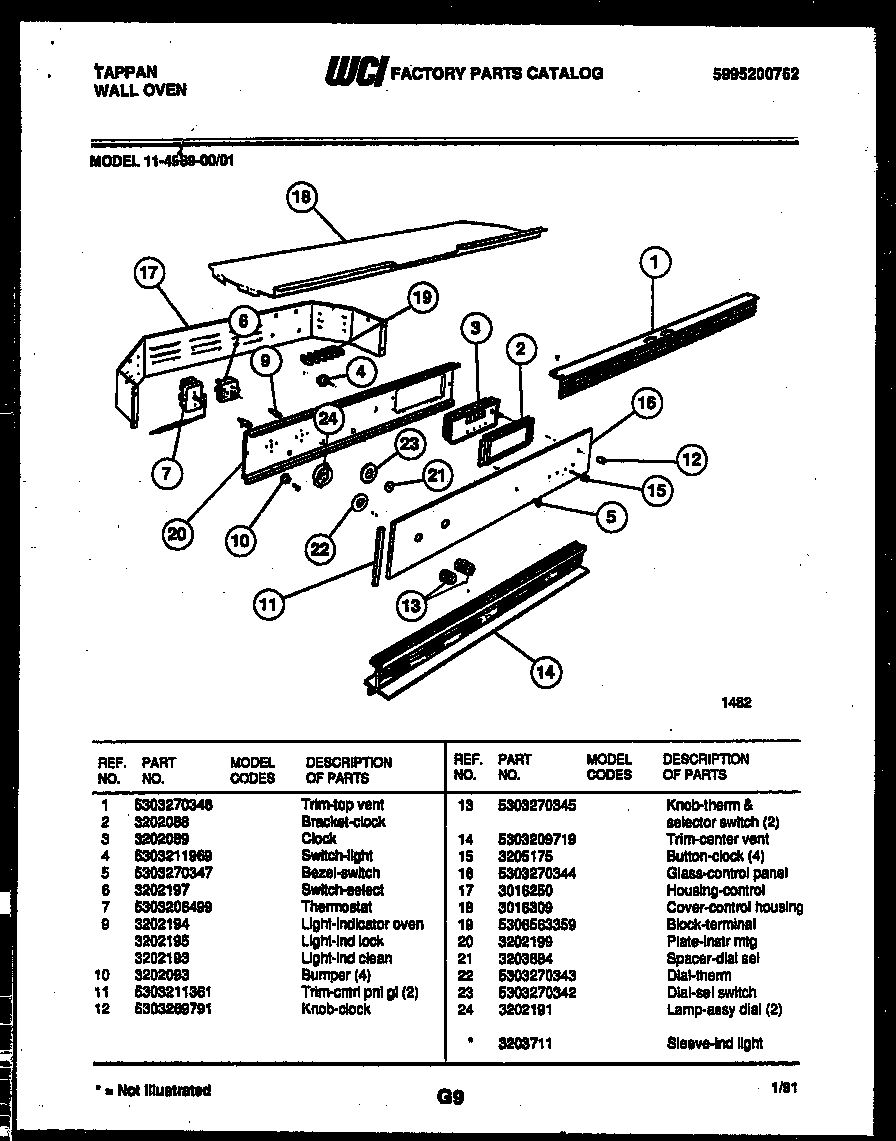

11-4989-00-01 02 – CONTROL PANEL

11-4989-00-01 02 – CONTROL PANEL

Written by

in

11-4989-00-01 02 – CONTROL PANEL

Products

PositionProduct
*43380SLEEVE-IND IT (4)
1WCI 5303270346
2WCI 3202088
3WCI 3202089
4SWITCH – FLUOR LIGHT & OVEN LIGHT (2)
5WCI 5303270347
6WCI 3202197
7WCI 5303206499
9BWCI 3202193
9LIGHT-IND- OVEN (2)
9AWCI 3202195
10WCI 3202093
11TRIM-CONT PANEL GLASS (2)
12KNOB-TIMER
13WCI 5303270345
14WCI 5303209719
15WCI 3205175
16WCI 5303270344
17WCI 3016250
18COVER – CONT HOUSING
195304409888 Frigidaire Oven Terminal Block with Hardware
20PLATE – INST MTG
21WCI 3203884
22WCI 5303270343
23WCI 5303270342
24LAMP ASSY.-DIAL (3)
