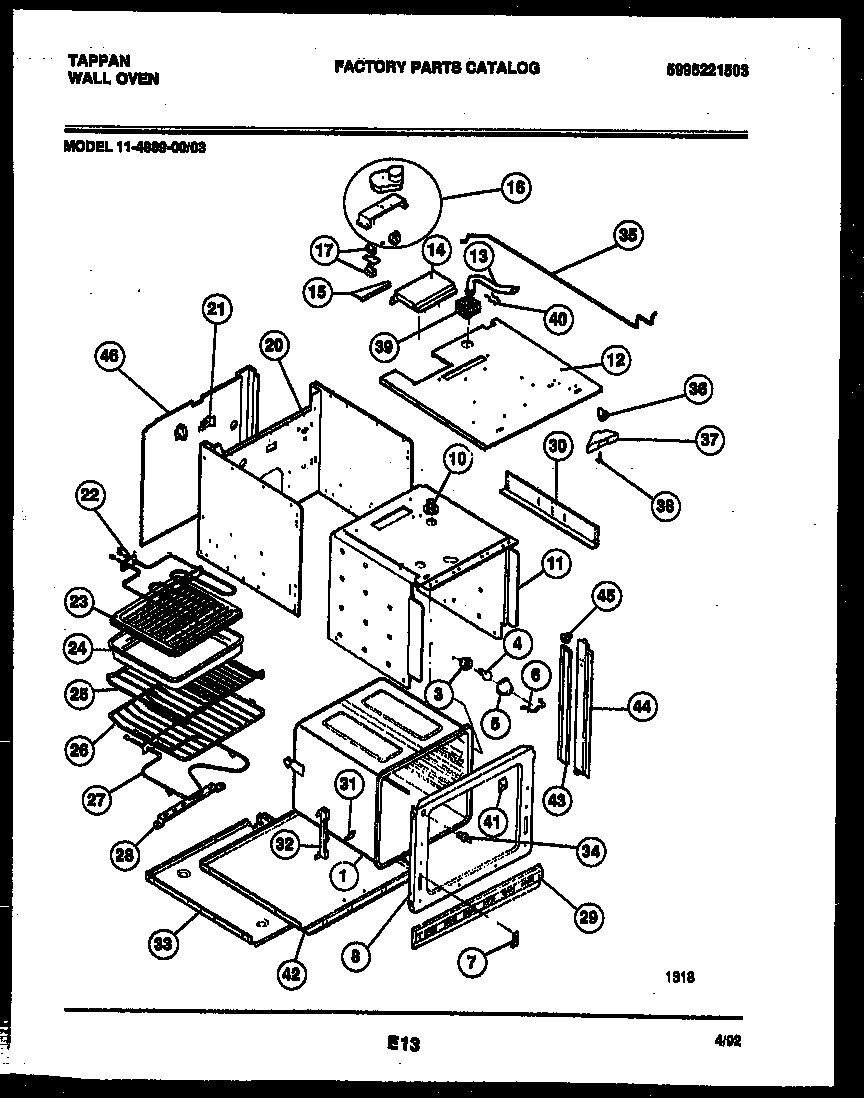

11-4989-00-03 04 – BODY PARTS

Products

Position	Product
*71253	PLUG BUTTON (NON-ILLUSTRATED)
*71252	5303284616 Frigidaire Range Bulb Clip Thermostat
*71252	INSULATION-WRAP
*71253	WCI 3019069
*71252	INSULATION – BACK (NON-ILLUSTRATED)
*71253	WCI 191S018F235
*71253	HOUSING-DOOR LATCH
1	WCI 3016269
3	316116400 Frigidaire Oven Light Socket
4	316538904 Frigidaire Oven Lamp Light
5	5304524341 Frigidaire Lens
6	WIRE, GLASS RETAINER
7	WCI 3019063
8	WCI 3019070
10	TUBE-OVEN VENT
11	WCI 3016272
12	WCI 3016249
13	WCI 3016301
14	WCI 3016296
15	BRACKET-MOTOR MTG
16	WCI 5303016242
17	WCI 3202430
20	WCI 3016275
21	WCI 3016281
22	5303016247 Frigidaire Broil Element
23	WCI 3205234
24	WCI 3205539
25	318345216 Frigidaire Oven Rack
27	318255101 Frigidaire Oven Bake Element
28	WCI 3016248
29	WCI 3202627
30	SUPPORT-HEIGHT ADJUSTMENT (2)
31	WCI 3201632
32	WCI 3201631
33	WCI 3016277
34	318394803 Frigidaire Oven Switch
35	WCI 3016241
36	LATCH-DOOR
37	WCI 3016271
38	AXLE – HINGE (2)
39	WCI 3016302
40	Clip,insulator
41	WCI 3202082
42	SHIELD-INSUL BASE
43	WCI 3016279
43A	WCI 3016280
44	WCI 5303280270
45A	WCI 3202632
45	WCI 3202631
46	WCI 3016314
