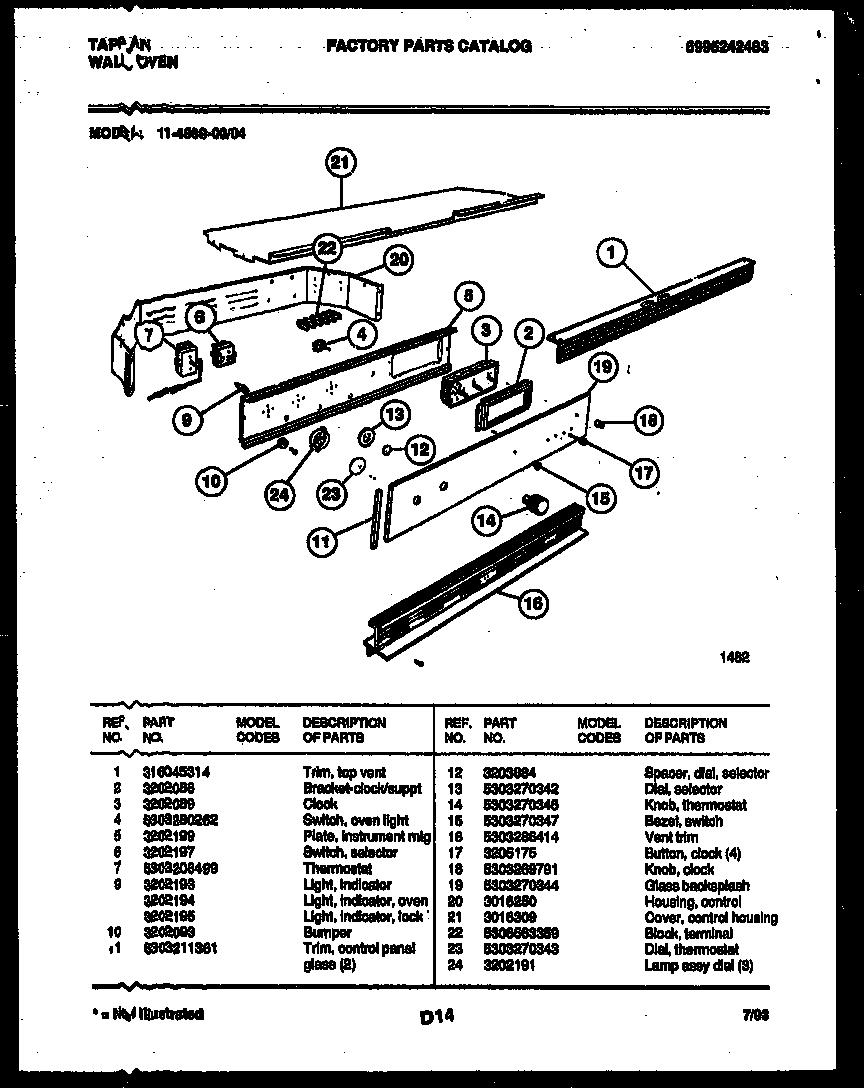

11-4989-00-04 02 – CONTROL PANEL

11-4989-00-04 02 – CONTROL PANEL

Written by

in

11-4989-00-04 02 – CONTROL PANEL

Products

PositionProduct
1WCI 316045314
2WCI 3202088
3WCI 3202089
4SWITCH-OVEN LIGHT, PUSH
5PLATE – INST MTG
6WCI 3202197
7WCI 5303206499
9WCI 3202193
9BWCI 3202195
9ALIGHT-IND- OVEN (2)
10WCI 3202093
11TRIM-CONT PANEL GLASS (2)
12WCI 3203884
13WCI 5303270342
14WCI 5303270345
15WCI 5303270347
16TRIM-VENT, WHITE
17WCI 3205175
18KNOB-TIMER
19WCI 5303270344
20WCI 3016250
21COVER – CONT HOUSING
225304409888 Frigidaire Oven Terminal Block with Hardware
23WCI 5303270343
24LAMP ASSY.-DIAL (3)
