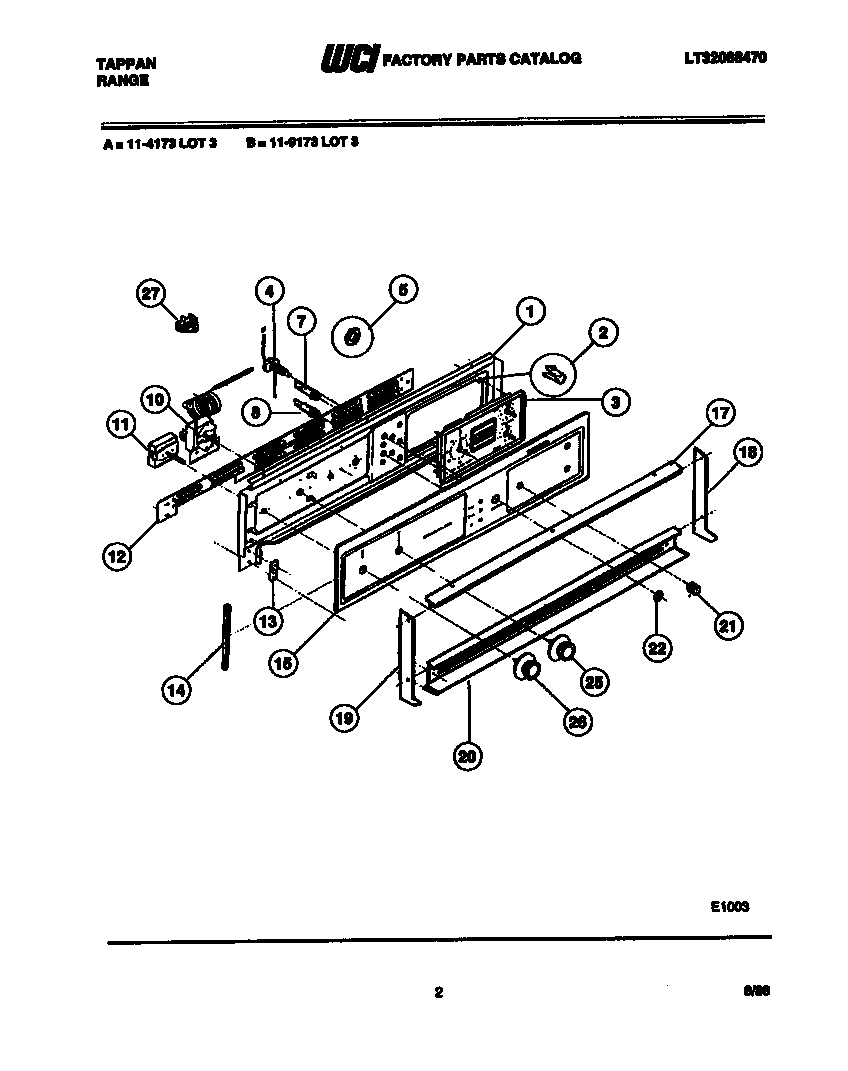

11-9173-00-03 02 – BACKGUARD

Products

Position	Product
1	WCI 3018769
2	FSTNR-CLOCK
3	WCI 148T149P15
4	SWITCH OV LT
5	HEX NUT SWITCH MTG
5A	5303288565 Frigidaire Screw
7	INDICATOR LITE (250V RED) LOCK
8	INDICATOR LITE (125V RED) OVEN & CLEAN (2)
10	WCI 720T058P02
11	SWITCH-SELECTOR 6 POS.
12	WCI 3014012
13	ANGLE-CONTROL PANEL MTG. (2)
14	TRIM-CONTROL PANEL ENDS (2)
15	WCI 277T163P50
17	WCI 233T098P01
18	WCI 233T106P02
19	WCI 233T106P01
20	WCI 233T099P01
20B	SCREW END CAP 8A X 3/8 (2) (NON-ILLUSTRATED)
20A	5303300265 Frigidaire Oven Screw
21	KNOB-CLOCK
22	WCI 045T064P04
25	KNOB-THERMOSTAT SELF CLEANING
26	KNOB-SELECTOR SWITCH 6 POS SELF CLEANING
27	FUSE-THERMO CUTOUT
