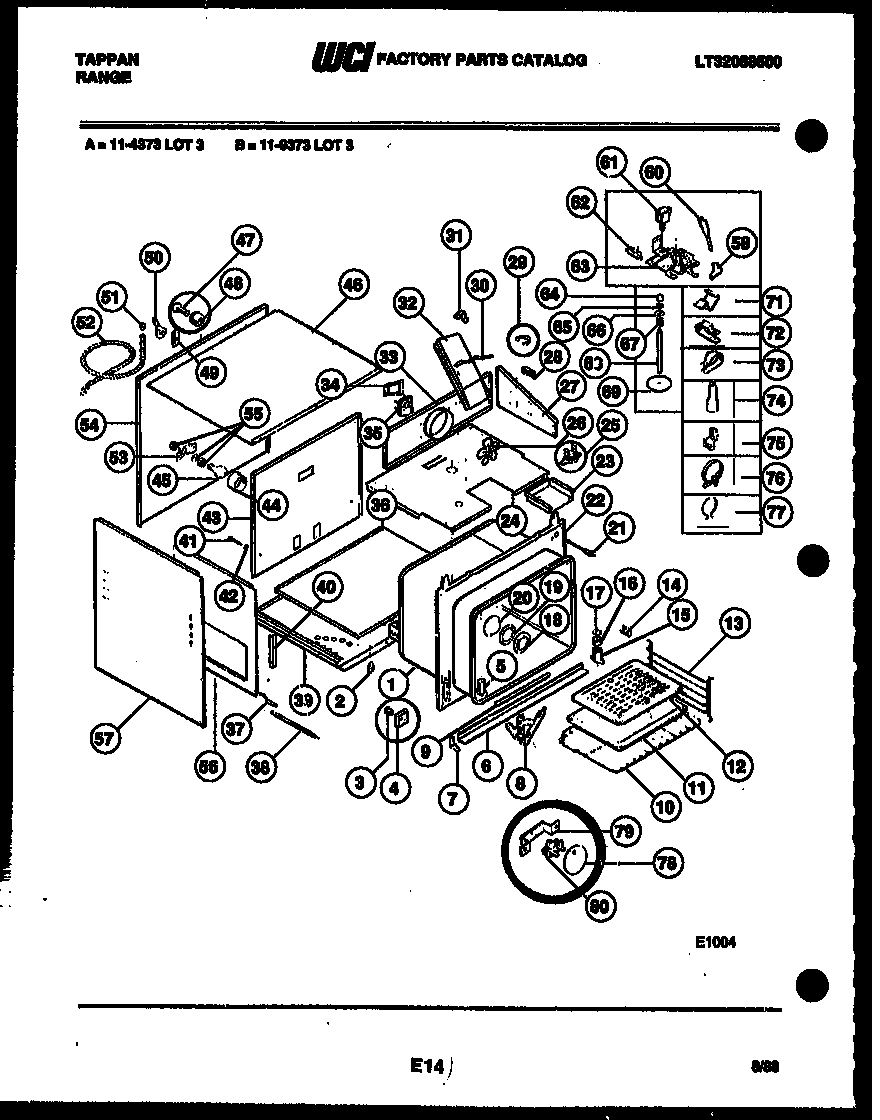

11-9373-00-03 05 – BODY PARTS

Products

Position	Product
1	LINER-OVEN
2	FASTENER-14A U-TYPE OVEN TO INNER BACK MOUNTING (2)
3	GROMMET-SPACER MTG (4)
4	WCI 665T092P01
5	TUBE-OVEN FRONT
6	WCI 233T100P02
7B	SCREW END CAP 8A X 3/8 (2) (NON-ILLUSTRATED)
7A	WCI 233T107P02
7	WCI 233T107P01
8A	WCI 117T014S10
8	WCI 117T014S09
8B	KIT-DOOR ADJUSTMNT (NON-ILLUSTRATED)
8C	SCREW-EXTRUSION MTG (8A X 1/2“ PH TR)(B/I TRIM KIT) (10)(NOT ILLUSTRATED)
9	SHIELD-OVEN DOOR-BTM.
10	WCI 591T038P09
11	PAN, BROILER
12	INSERT-BROILR PAN LOT 2,3
13	GLIDE-OVEN RACK (2)
14	BRACKET-RACK GLIDE (4)
15	TUBE-VENT-CATALYST
16	WCI 244T048P02
17	WCI 612T079P02
18	COLLAR-LENS MTG
19	WCI 269T040P05
20	LENS-LIGHT COVER
21	WCI 695T128P01
22	FRONT-FRAME (INCLUDE REF. 3 & 4)
23	BOX-LATCH
24	SHIELD-WOOL-TOP
25	WCI 695T095P08
26A	WCI 636T079R01
26	WCI 3011668
27A	WCI 024T079F02-18
27	WCI 024T079F01-18
28	WCI 709T008P03
29	WCI 612T059P01
30	WCI 3018770
31	WCI 072T517F01
32	WCI 211T004S05
33	COVER-INSTRUMENT-RR
34	WCI 072T274F01
35	WCI 463T079P03
36	WCI 3011483
37	WCI 072T476F01
38	SPRING-DOOR CAM (2)
39	WCI 3200364
40	WCI 024T080F01-18
43	WCI 805T009F05-18
