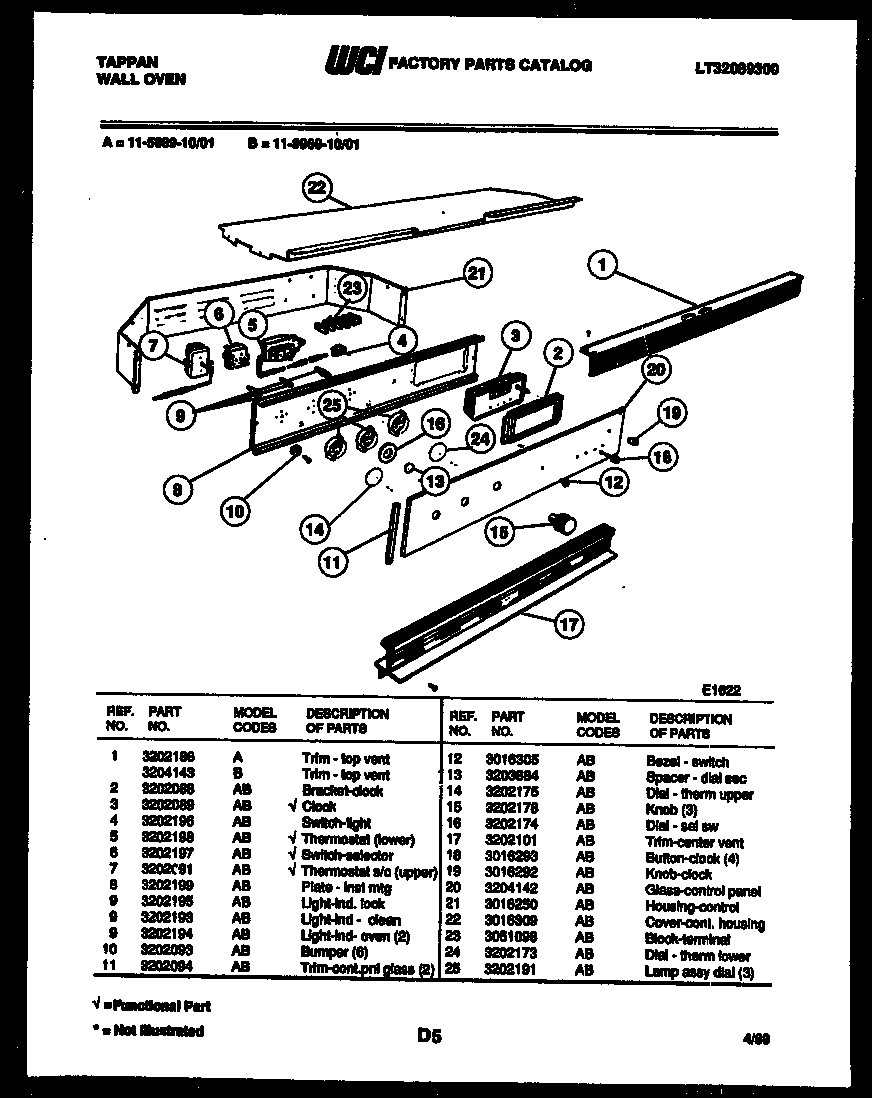

11-9969-00-01 02 – CONTROL PANEL

11-9969-00-01 02 – CONTROL PANEL

Written by

in

11-9969-00-01 02 – CONTROL PANEL

Products

PositionProduct
1WCI 3204143
2WCI 3202088
3WCI 3202089
4WCI 3202196
5WCI 3202198
6WCI 3202197
7WCI 3202091
8PLATE – INST MTG
9WCI 3202195
9LIGHT-IND- OVEN (2)
9WCI 3202193
10WCI 3202093
11TRIM-CONT. PANEL GLASS (2)
12WCI 3016305
13WCI 3203884
14DIAL – THERM UPPER
15KNOB (3)
16DIAL-SEL. SW.
17WCI 3202101
18BUTTON-CLOCK
19WCI 3016292
20WCI 3204142
21WCI 3016250
22COVER – CONT HOUSING
235304409888 Frigidaire Oven Terminal Block with Hardware
24DIAL – THERM LOWER
25LAMP ASSY.-DIAL (3)
