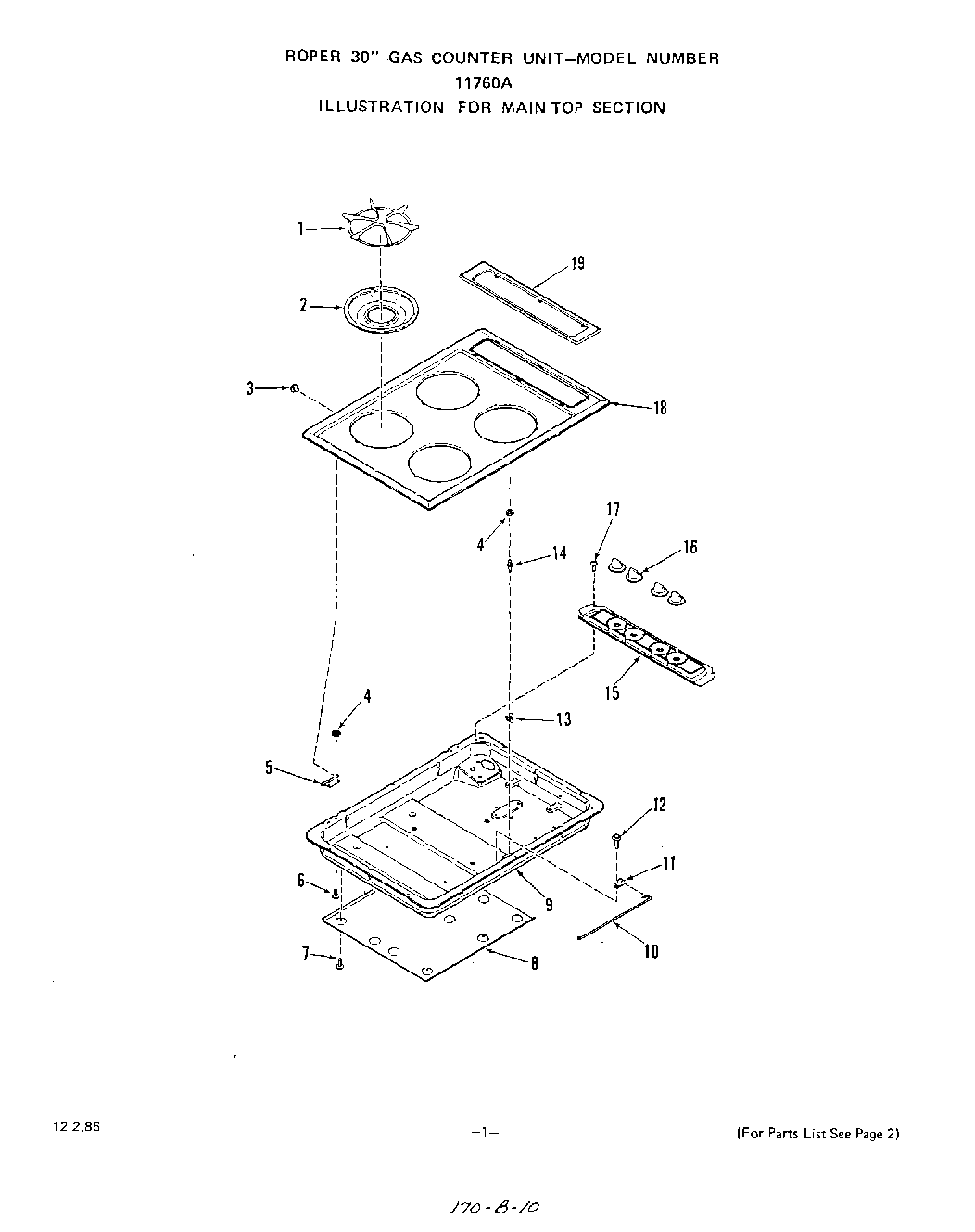

| 1 | Top Grate (4 Required) |
| 2 | Aeration Pan 15252A, 3A Models |
| 3 | Screw 6-32x1/4`` |
| 4 | Keps Nut 8-32 |
| 5 | Hinge-Main Top |
| 6 | Screw 8-32x1/4`` |
| 7 | Screw 10 - 32 x 1/4`` |
| 8 | Burner Box Shield |
| 9 | Box-Burner |
| 10 | Main Top Support Rod |
| 11 | Clip |
| 12 | WP112432 Whirlpool Nut Assembly |
| 13 | Catch-Strike |
| 14 | Strike-Broiler Door |
| 15 | Control Panel |
| 16 | Gas Valve Knob |
| 17 | Screw 6-32x3/8`` |
| 18 | Main Top (Avocado) |
| 18 | Main Top (Almond) |
| 18 | Main Top (Toast) |
| 18 | Main Top (Wheat) |
| 18 | Main Top (Platinum) |
| 18 | Main Top (Coffee) |
| 18 | Main Top (White) |
| 18 | Chrome |
| 19 | Bezel-Control |
