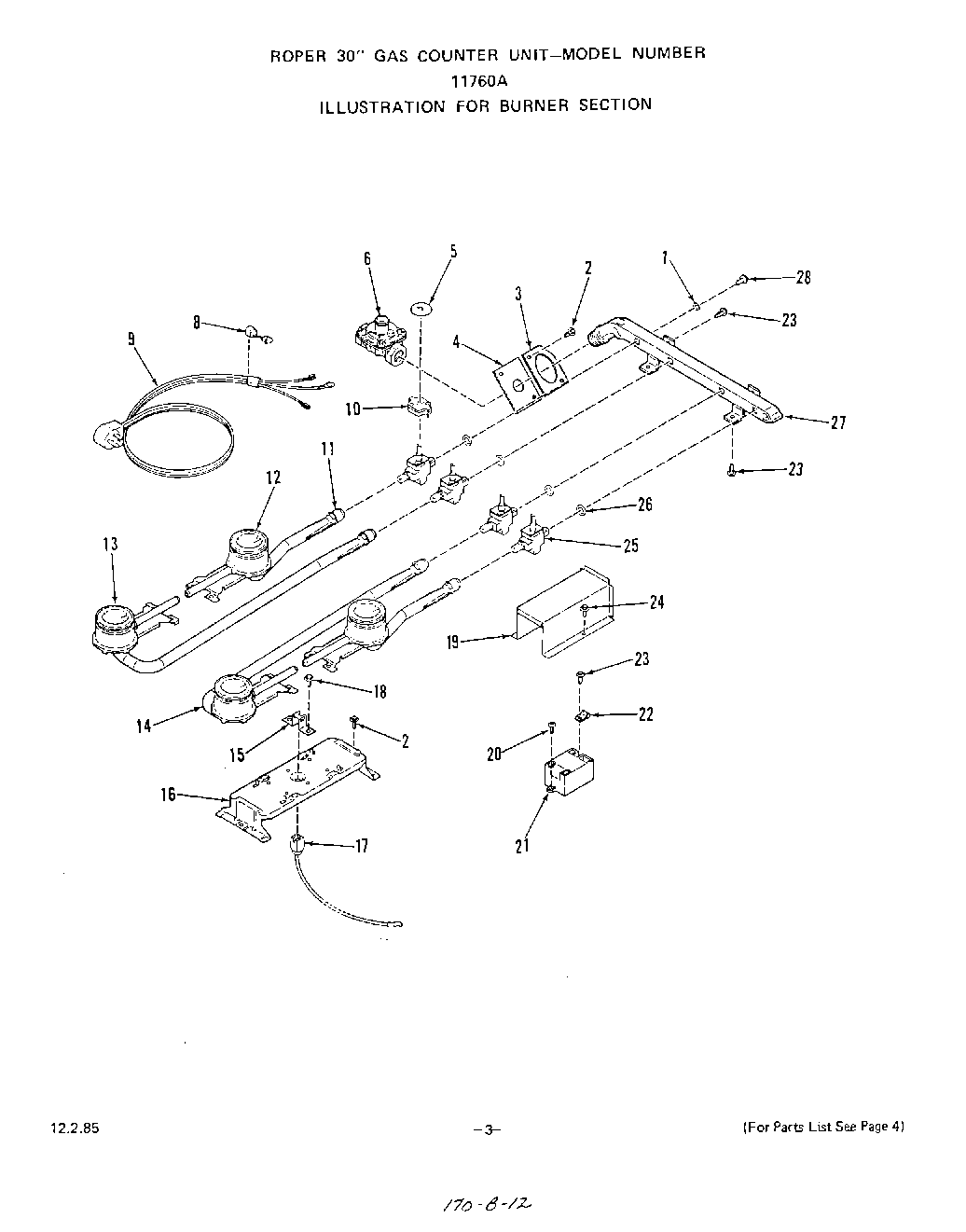

1176W0A 03 – SECTION

Products

Position	Product
1	Silicone Rubber Gasket (For Key 26)
2	Screw 10 – 32 x 1/4“
3	Manifold Seal
4	Manifold Seal Retainer
5	Shield – Gas Value (4 Req)
6	Pressure Regulator
8	280050 Whirlpool Rear Panel
9	Cord w/Plug
10	C27570 Models
11	Air Shutter
12	Burner-Top Asm (Right Front & Rear)
13	Burner-Top Asm (Left Rear)
14	Burner-Top Asm (Left Front)
15	panel, side l.h. (almond panel, side r.h.)
16	Support-Top Burner
17	Right
18	Screw 10-16×7/16“
19	Cover-Module Wire
20	Screw 6-32×3/8“
21	Spark Module
22	WPL 109266
23	WPL 295850
24	Screw 10 – 32 x 7/16“
25	Gas Valve
26	Silicone Rubber Gasket
27	Pipe-Manifold
28	Mounting Screw (Inc`s 86)
