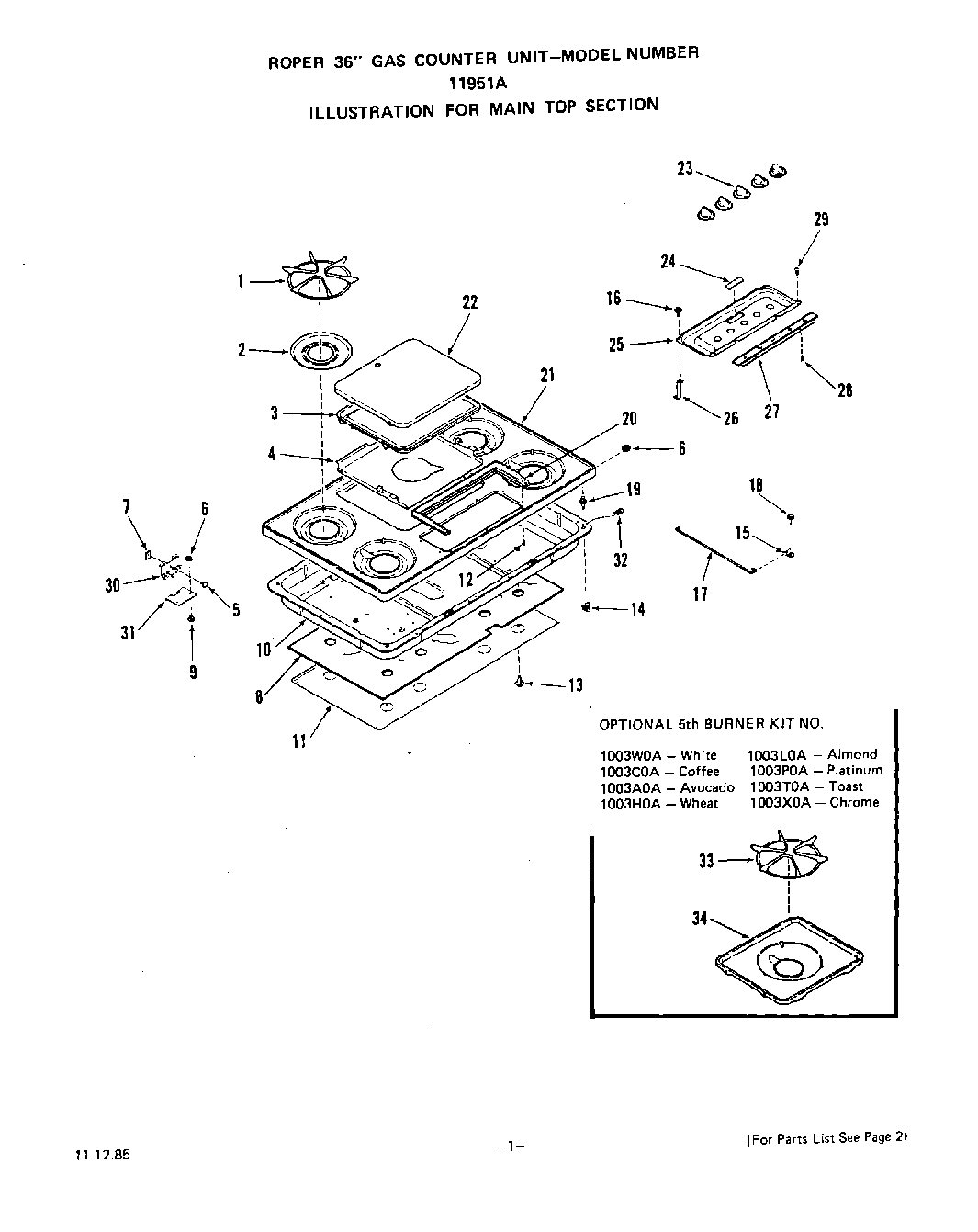

1195W1A 02 – SECTION

Products

Position	Product
2	Spill Bowl (4 Required)
3	Griddle Plate
4	Bracket, Control Mounting
5	Screw 10 – 32 x 7/16“
6	Keps Nut 8-32
7	Speed Nut
8	Insulation
9	Screw 8-32×1/4“
10	Burner Box
11	Shield-Burner Box
13	WPL 295850
14	Catch-Main Top Strike (2 Required)
15	Clip
16	Screw 10 – 32 x 1/4“
17	Support-Main Top
18	Screw 10-32×3/8“
19	Strike-Main Top (2 Required)
20	Shell Assembly (Coffee)
21	Main Top
21	C2757XO
21	C2757TO Chrome
21	Bracket, Control Mounting
21	C2757WO Coffee
21	C2757CO Avocado
21	C2757AO Golden Wheat
21	C2757HO Almond
21	C2757LO Platinum
22	Griddle Cover (Coffee 1633C1A, C2A)
22	Griddle Cover (Almond 1633L1A, L2A)
22	Griddle Cover (Avocado 1633A1A, A2A)
22	Griddle Cover (White 1633W1A, W2A)
22	Chrome
22	Platinum
22	Toast
22	Griddle Cover
22	Griddle Cover (Golden Wheat 1633H1A, H2A)
23	5 Req.
24	Name Plate
25	Motor Fan (Alternate)
26	Bracket-Control Panel (2 Req)
27	Shell Assembly (Almond)
28	Screw 7-32×5/16“(2 Req) All 2101 Models
29	WPL 97220
30	Upper Leaf-Hinge (Lt. or Rt.)
31	Lower Leaf-Hinge (Lt. or Rt.)
32	Washer
33	Top Grate (4 Required)
34	Griddle Aeration Pan (Optional)
34	WPL 325417
34	Aeration Pan-Griddle (Coffee)
34	Aeration Pan-Griddle (Golden Whe
34	Platinum
34	Toast
34	Chrome
34	Aeration Pan-Griddle (Avocado)
34	Aeration Pan-Griddle (White)
