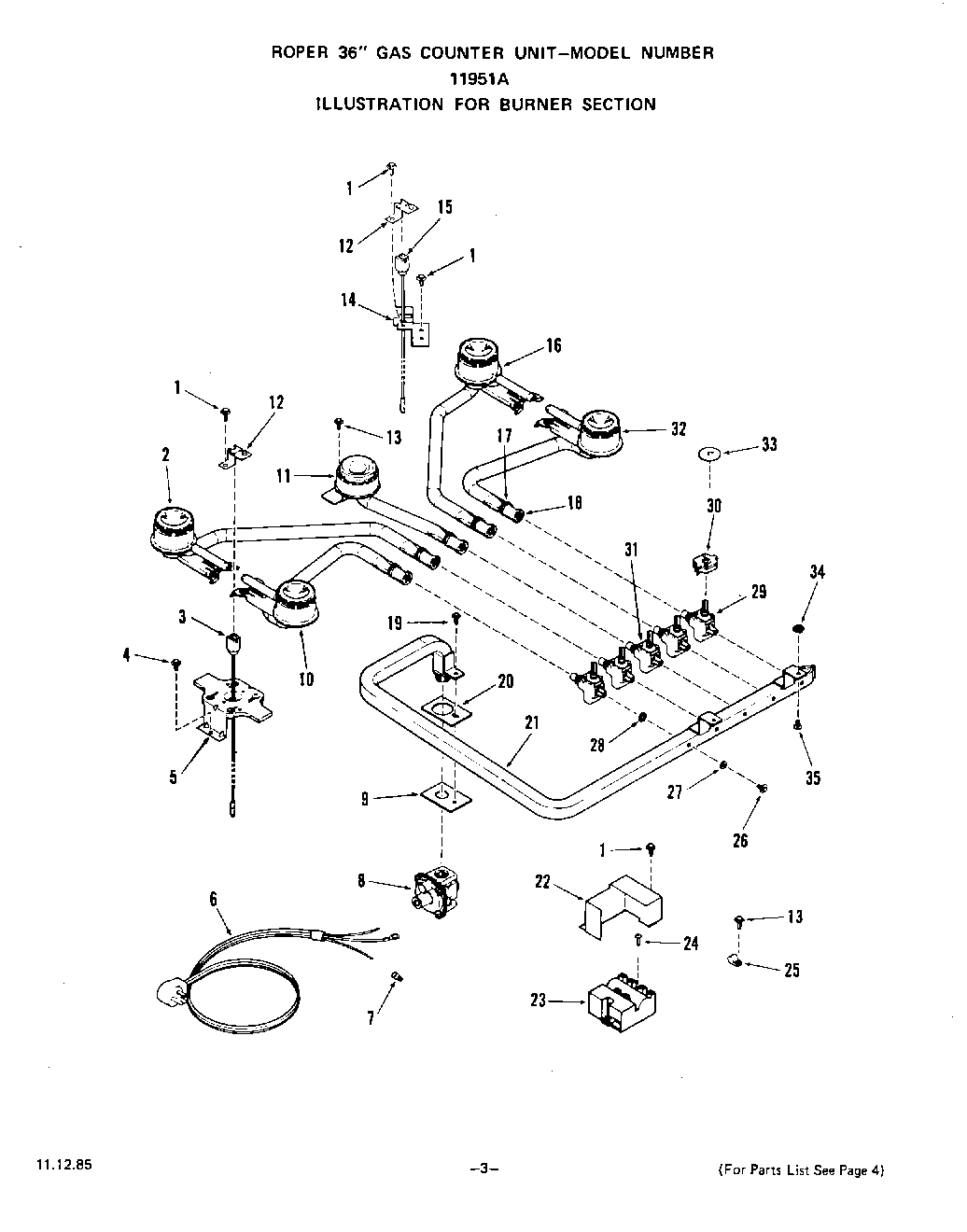

| WPL ARI7435A18 |
| 1 | Screw 10 - 32 x 7/16`` |
| 2 | Top Burner Assembly (Lt. Rear) |
| 3 | Panel, Side L.H. (Toast) |
| 3 | Panel, Side L.H. (Platinum Panel, Side R.H.) |
| 3 | Electrode-Spark Igniter |
| 4 | WP112432 Whirlpool Nut Assembly |
| 5 | Support-Top Burner |
| 5 | Right |
| 5 | Left |
| 6 | Cord w/Plug |
| 7 | Wire Connector (2 Required) |
| 8 | Pressure Regulator |
| 9 | Seal-Manifold |
| 10 | Top Burner Assembly (Lt. Front) |
| 11 | C27570 Models |
| 12 | panel, side l.h. (almond panel, side r.h.) |
| 13 | WPL 295850 |
| 14 | C27570 Models |
| 15 | Right |
| 16 | Flange Nut (4) |
| 17 | Stiffener-Oven Door Lining |
| 18 | Air Shutter |
| 19 | Screw 10 - 32 x 1/2`` |
| 20 | Retainer-Manifold Seal |
| 21 | C27570 Models |
| 22 | Wire Cover-Module |
| 23 | C27570 Models |
| 24 | Screw 6-20x3/8`` |
| 25 | WPL 109266 |
| 26 | Mounting Screw (Inc`s 86) |
| 27 | Gasket (For 81) |
| 28 | Silicone Rubber Gasket |
| 29 | Gas Valve (4 Req) |
| 30 | C27570 Models |
| 31 | Gas Valve-Griddle-C27570 Models |
| 32 | Gasket, Magnetron (Use W/Panasonic Magnetron) |
| 33 | Shield - Gas Value (4 Req) |
| 34 | Keps Nut 8-32 |
| 35 | Cushion (7) |
| 35 | WPL 313143 |
| 35 | Screw 8-32 x 3/8`` |
| 35 | WPL 313144 |
| 35 | WPL 321995 |
