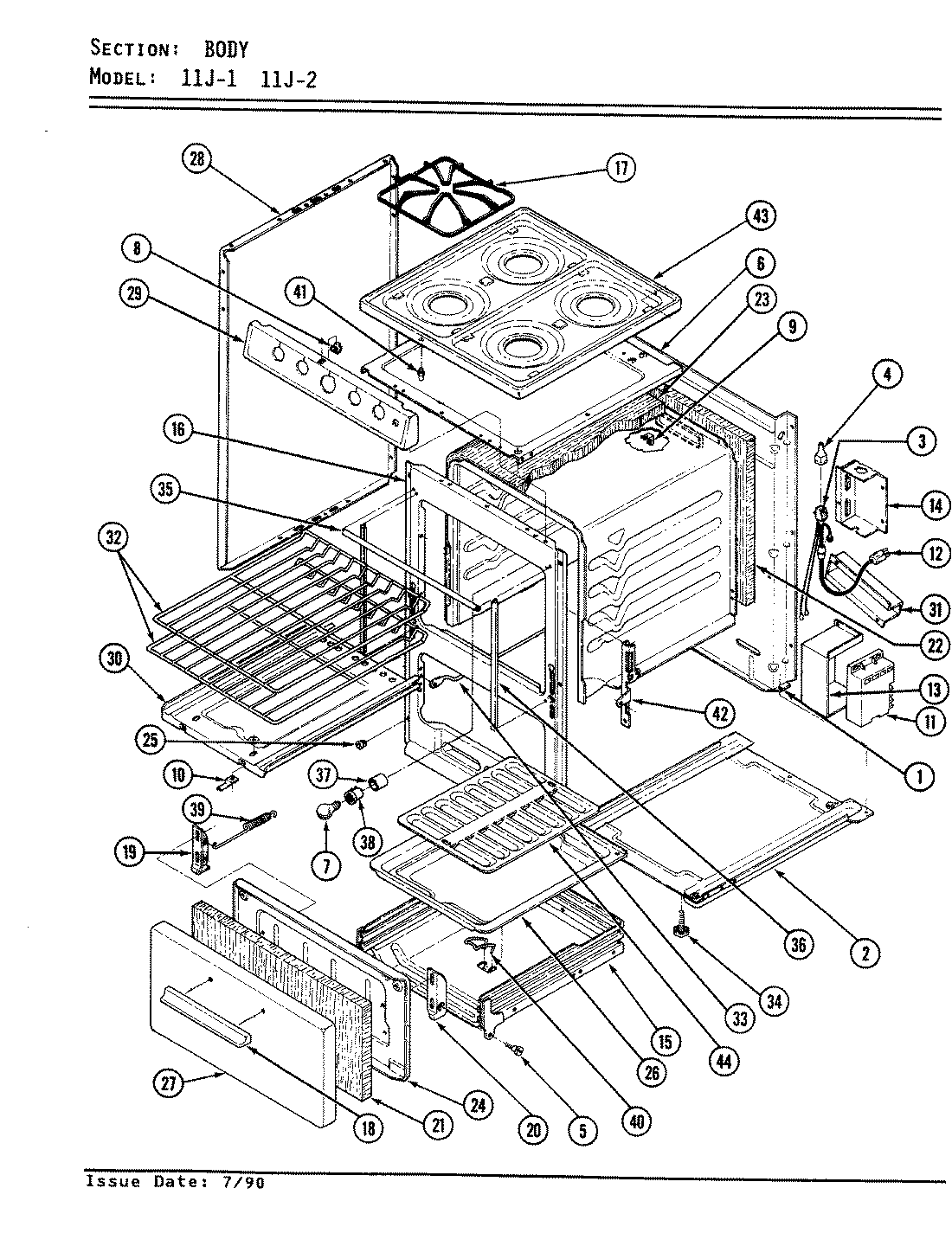

| 1 | MAY 4002W129-80 |
| 2 | MAY 4003F016-80 |
| 3 | MAY 7401P017-60 |
| 4 | MAY 7401P022-60 |
| 5 | MAY 7118P008-60 |
| 6 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 6 | MAY 7101P289-60 |
| 6 | MAY 4011F164-80 |
| 6 | MAY 3801F218-51 |
| 7 | MAY 7407P026-60 |
| 8 | MAY 8002P022-60 |
| 9 | MAY 7112P053-60 |
| 10 | MAY 3819F011-61 |
| 11 | MAY 7431P006-60 |
| 12 | MAY 7402P018-60 |
| 13 | MAY 4005F319-45 |
| 14 | MAY 4005F326-51 |
| 15 | MAY 3407W005-23 |
| 16 | MAY 2201W048-23 |
| 17 | MAY 2003W001-00 |
| 17 | MAY 2003W026-00 |
| 18 | MAY 7701P012-60 |
| 19 | MAY 3418F034-80 |
| 20 | 74002481 Whirlpool Screw |
| 20 | MAY 3418F035-80 |
| 21 | MAY 7002P067-60 |
| 22 | MAY 7002P091-60 |
| 23 | MAY 7002P083-60 |
| 24 | MAY 2404F022-23 |
| 25 | MAY 7103P080-60 |
| 26 | MAY 3401F016-23 |
| 28 | MAY 7101P061-60 |
| 30 | MAY 5720A003-23 |
| 31 | MAY 3830F001-51 |
| 32 | MAY 7801P019-60 |
| 33 | MAY 3808F008-61 |
| 33 | MAY 7101P068-60 |
| 33 | W10080180 Whirlpool Nut |
| 33 | MAY 3808F007-61 |
| 34 | MAY Y7101P25460 |
| 35 | MAY 7212P014-60 |
| 36 | MAY 7212P015-60 |
| 37 | MAY 3414F011-51 |
| 38 | MAY 7408P021-60 |
| 39 | MAY 7803P033-60 |
| 39 | MAY 7803P032-60 |
| 40 | MAY 7809P004-60 |
| 41 | MAY 8024P003-60 |
| 42 | MAY 3807F291-34 |
| 42 | MAY 7403P144-60 |
| 42 | MAY 7101P188-60 |
| 42 | WP7101P072-60 Whirlpool Screw |
| 42 | MAY 7103P071-60 |
| 42 | MAY 3807F290-34 |
| 44 | MAY 3413F007-23 |
