12-1063-23-05 05 – GAS CONTROL

12-1063-23-05 05 – GAS CONTROL

Written by

in

12-1063-23-05 05 – GAS CONTROL

Products

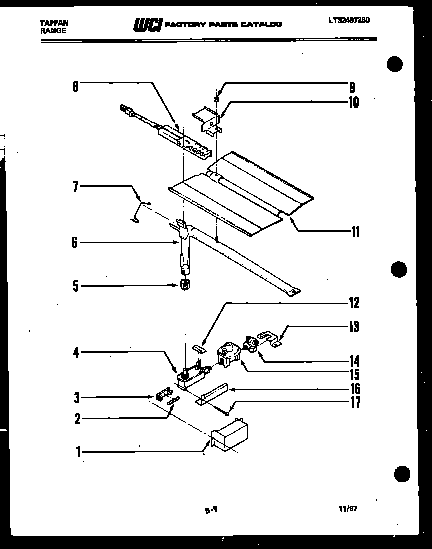

PositionProduct
1WCI 174T175F01
2FUSE-5A 250V
3WCI 597T023P01
4WCI 774T119P02
5MIXER-AIR-OVN BURNR
6WCI 079T025P14
6WCI 079T025P10
7RETAINER-OVN BURNR LOT 3
8IGNITER-OVN BURNER LOT 3
85303935066 Frigidaire Oven Flat Igniter 17" Leads
8AMICROWAVE FAN PLUG
95303013272 Frigidaire Oven Nut
10SHIELD-OVEN BOTTOM
11WCI 024T160F01
12WCI 711T030P01
13ASCREW-EXTRUSION MTG (8A X 1/2“ PH TR)(B/I TRIM KIT) (10)(NOT ILLUSTRATED)
13WCI 072T608F03
14WCI 774T079P04
15WCI 166T008P05
16WCI 072T611F01
17SCREW-SAFETY VALVE MTG 8A X 2“ PH TR HD (2) (NON-ILLUSTRATED)
