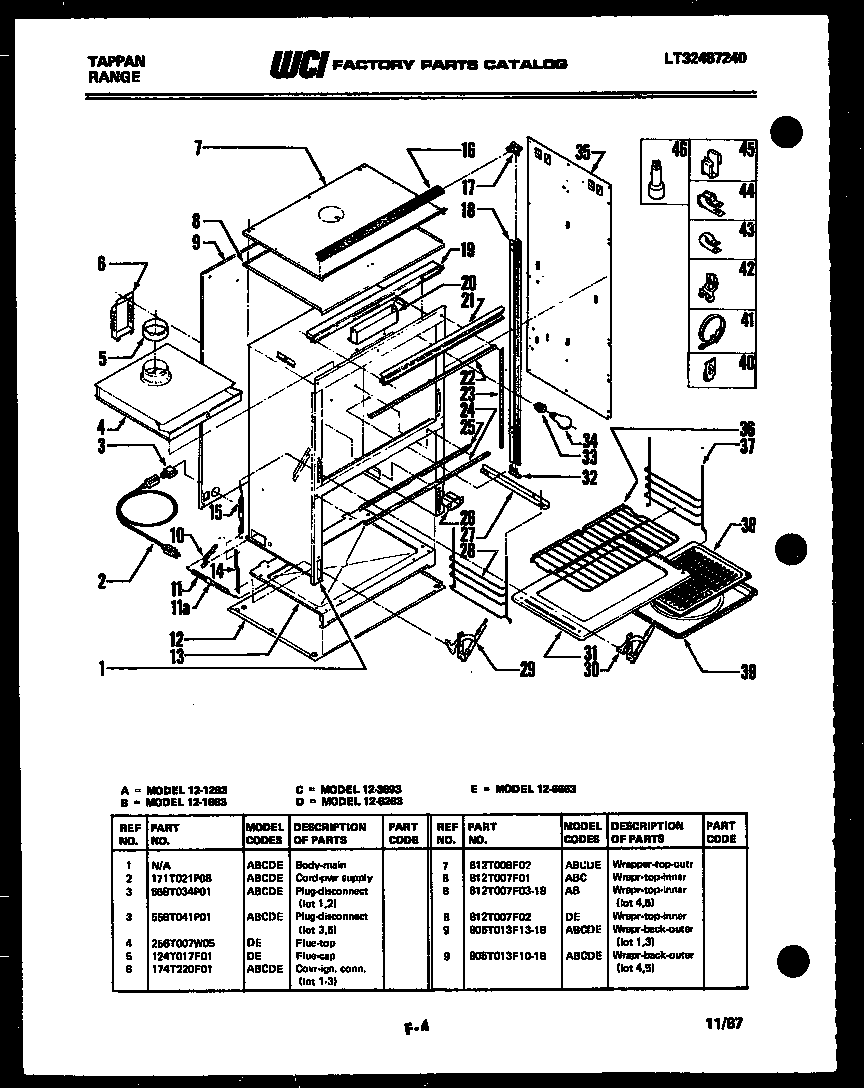

12-1663-00-01 06 – BODY PARTS

Products

Position	Product
*86085	INSULATION-WOOL (TOP & SIDES)
*86091	WCI 382T023F11CE
*86088	WCI 379T043F03
*86084	WCI 328T015P117
*86084	WCI 328T015P46
*86082	WCI 636T090P35
*86089	WCI 382T023F08CE
2	WCI 171T021P08
3	WCI 558T041P01
3	WCI 558T034P01
4	WCI 256T007W05
6	COVER-IGNITER
7	WRAPPER OUTER TOP
8	WRAPPER INNER TOP
8	WCI 812T007F03-18
9	WCI 805T013F13-18
9	WCI 805T013F10-18
10	WCI 072T476F01
11	WCI 675T041P05
12	WCI 036T034F04
13	WCI 060T006W04-86
13	WCI 060T006W04-89
13	WCI 060T006W04-87
14	WCI 072T476F02
15A	SLEEVE DR SPRING (2)
15	SPRING (2)
16	WCI 740T327P04
16	TRIM TOP
17A	SCREW END CAP 8A X 3/8 (2) (NON-ILLUSTRATED)
17	WCI 123T064P03
17	END CAP TOP (2)
18	WCI 740T328P14
18	WCI 740T328P13
19	FLUE BOX HORZ
20	FLUE BOX VERTICAL
21	WCI 740T411P04
21	WCI 740T411P01
22	WCI 647T081P04
23	SEAL DOOR SIDE (2)
24	WCI 647T069P07
25	WCI 655T142F07
26	TUBE-IGNITER MTG
27	WCI 008T309F01
28	WCI 280T052P01
29	WCI 117T014S03
29	WCI 117T014S04
29	WCI 117T014S09
29	WCI 117T014S10
30A	KIT-DOOR ADJUSTMNT (NON-ILLUSTRATED)
30	CAM-OVEN DOOR L
30B	SCREW-EXTRUSION MTG (8A X 1/2“ PH TR)(B/I TRIM KIT) (10)(NOT ILLUSTRATED)
30	CAM, OVN DR, RH
30	CAM, OVN DR, LH
30	CAM-OVEN DOOR R
31	WCI 058T015F10-87
31	WCI 058T015F10-86
31	WCI 058T015F10-89
32	END CAP BTM RH
32	END CAP BTM LH
33	WCI 662T012P12
33	SOCKET
34	316538904 Frigidaire Oven Lamp Light
35	WCI 809T010F08-18
36	WCI 591T059P01
36	RACK
37	GLIDE OV RACK (2)
38	INSERT-BROILR PAN LOT 1
38	INSERT-BROILER PAN (CHAR. GRAY W/ F)
38	INSERT-BROILR PAN LOT 2,3
39	PAN-BROILER (CHAR. GRAY W/ F)
39	PAN, BROILER
39	PAN-BROILER LOT 1
40	FASTENER-8AJ (2)
40	FASTNR-8A U-TYPE
41	5304464772 Frigidaire Refrigerator Wire Tie
42	5303284616 Frigidaire Range Bulb Clip Thermostat
43	FASTNR-WIRE CLAMP LOT 1
44	FASTNR-CLAMP-POWER CORD
45	FSTNR CABLE CLAMP
46	711T047P93 Frigidaire Oven Terminal
