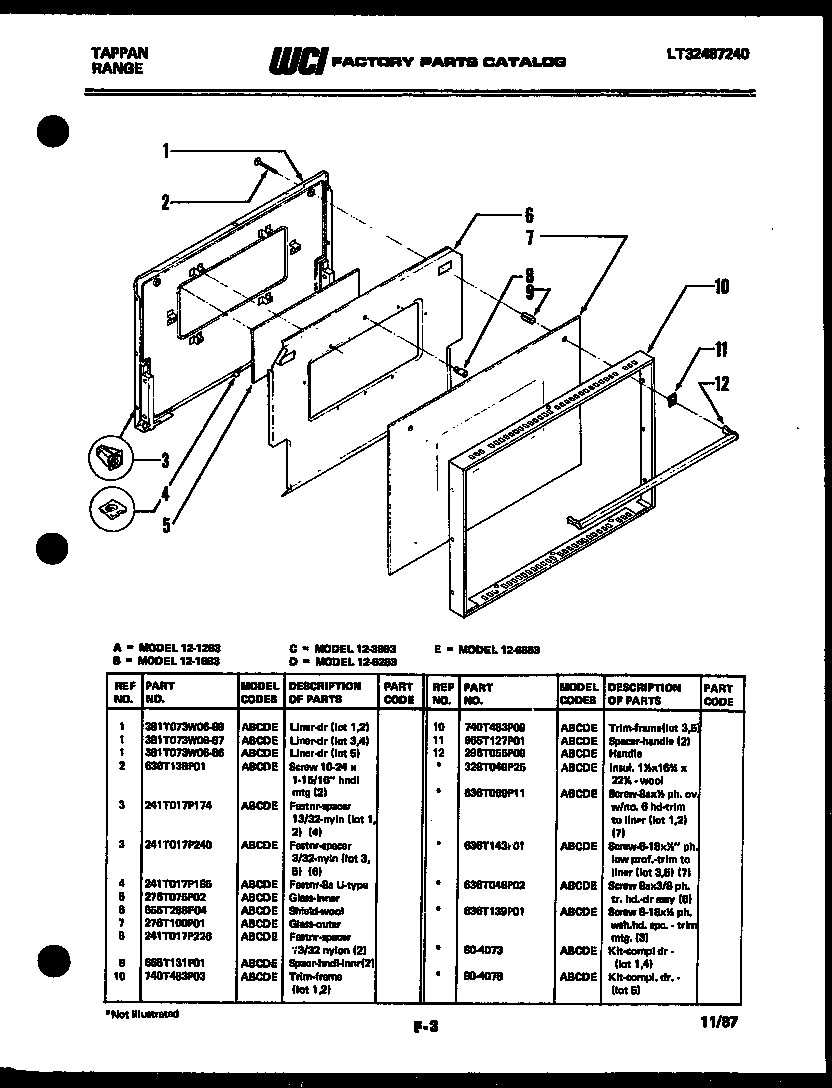

12-1663-23-01 05 – DOOR PARTS

Products

Position	Product
*86025	5303300265 Frigidaire Oven Screw
*86032	WCI 80-4073
*86032	WCI 80-4076
*86032	SCREW-DR ASSY 8-18 X 1/2`` PH WR HD SPC (3)
*86031	SCREW SW PNL. (7)
*86025	INSULATION (1 1/2 X 16-3/4 X 22 1/4``) WOOL (NON-ILLUSTRATED)
1	WCI 381T073W06-86
1	WCI 381T073W06-87
1	WCI 381T073W06-89
2	SCREW HANDLE MTG (2)
3	FASTNR-NYLN SPACR 3/32`` (5)
3	FASTNR-NYLON PUSH-IN SPACR (5)
4	FSTNR 8AU TYPE (3)
5	WCI 276T075P02
6	WCI 655T288F04
7	GLASS-OUTER
8	FASTENER-SPACER
9	SPACER, HANDLE MOUNTING
10	FRAME DOOR
10	FRAME DOOR
11	SPACER-HANDLE (2)
12	WCI 296T055P09
