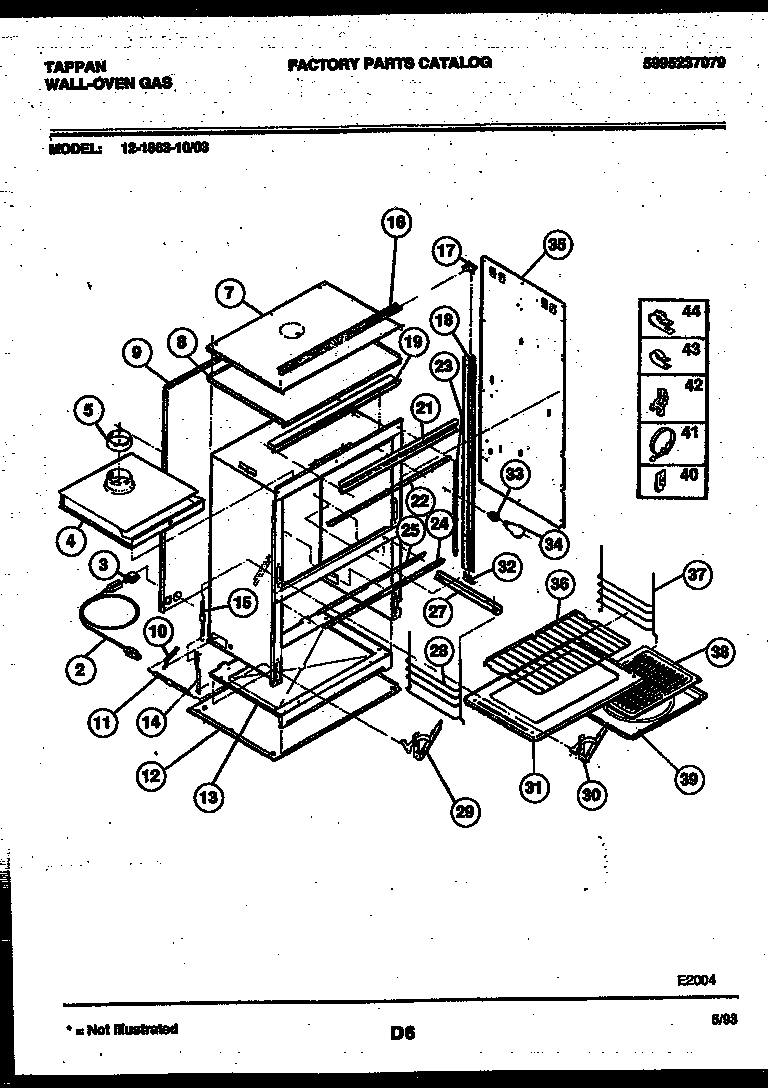

12-1863-00-03 05 – BODY PARTS

12-1863-00-03 05 – BODY PARTS

Written by

in

12-1863-00-03 05 – BODY PARTS

Products

PositionProduct
*85352INSULATION,TOP & SIDES
*85353INSULATION,OVEN BACK & TOP
*85352SCREW, 8-18 X 2.250, (2)
2WCI 5303295307
3WCI 5303295308
4FLUE
5WCI 5303298340
7WCI 3018718
8WCI 5303298317
9WCI 5303298319
10AWCI 5303298342
10BRACKET-SPRING ADJUST (2)
11SPRING-OVEN DOOR
12WCI 5303210187
13PANEL-OVEN BOTTOM
14WCI 5303295309
15ASLEEVE-SPRING (2)
15SPRING-OVEN DOOR,UPPER
16WCI 5303208053
17CAP-CORNER TOP (2)
17AWCI 5303298343
18AWCI 5303208056
18WCI 5303208054
19WCI 3205850
21WCI 5303295310
23SEAL-SIDE,BAKE OVEN
24SEAL-DOOR,BLACK ,TOP BROILER
25WCI 5303295312
27WCI 5303295313
28GLIDE-BROILER RACK
29Hinge Assy,LH lower
29Hinge Assy,oven door ,LH upper
30Hinge Assy,oven door ,RH upper
30WCI 5303208313
31PANEL-OVEN BOTTOM
32CAP-BOTTOM TRIM LH
32ACAP-BOTTOM TRIM RH
33SOCKET-LIGHT/LAMP, OVEN
34316538904 Frigidaire Oven Lamp Light
35WRAPPER-SIDE-OUTER-L&R
36AWCI 3201495
36WCI 08012158
37GLIDE-OVEN RACK
38BROILER GRILL
39BROILER PAN
403203010 Frigidaire Clip
41FASTENER, CLIP CABLE
425303284616 Frigidaire Range Bulb Clip Thermostat
43WCI 08067944
44CLAMP-POWER CORD
