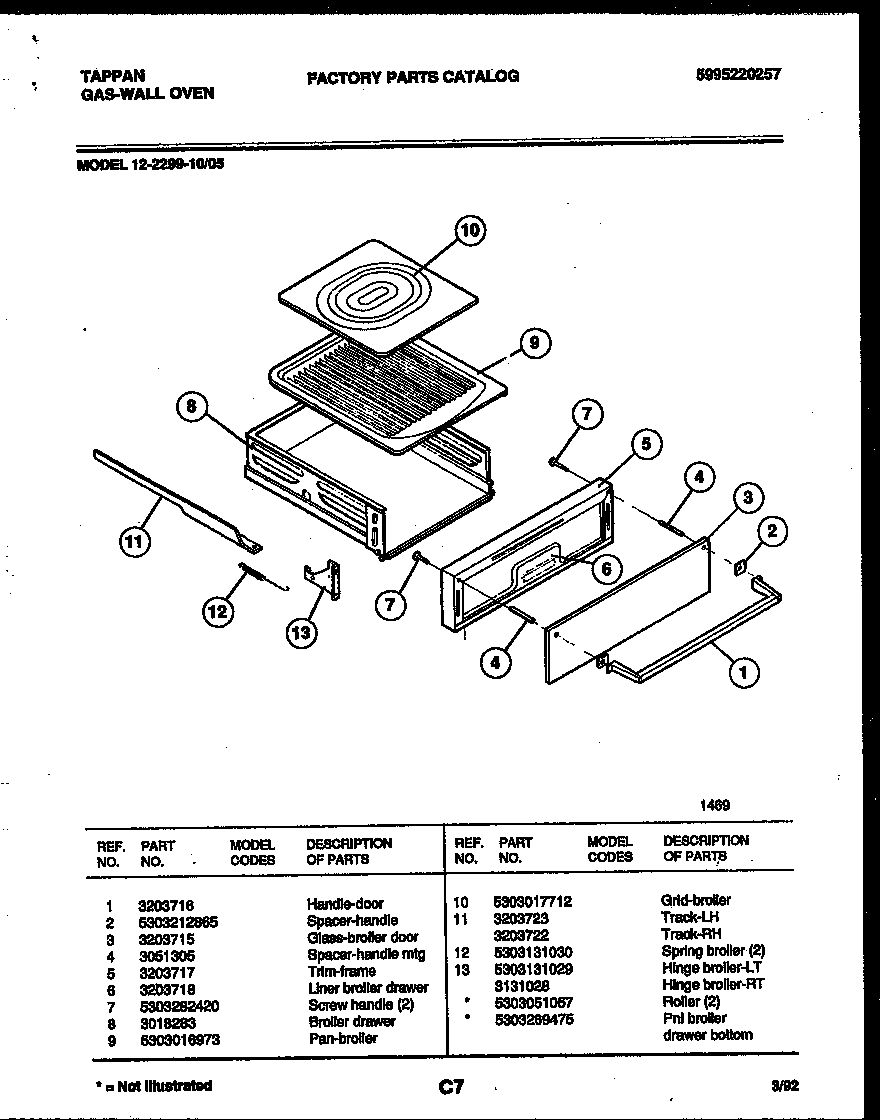

12-2299-10-05 05 – BROILER DRAWER PARTS

12-2299-10-05 05 – BROILER DRAWER PARTS

Written by

in

12-2299-10-05 05 – BROILER DRAWER PARTS

Products

PositionProduct
*67802PANEL-BROILER DWR BOTTOM
*67801ROLLER
1WCI 3203716
2WCI 5303212865
3GLASS-DRAWER, FRONT
4SUPPORT-FLU LIGHT RECEPT
5WCI 3203717
6LINER BROILER DWR.
7WCI 5303282420
85304504568 Frigidaire Drawer Assembly
9WCI 5303016973
10WCI 5303017712
113203723 Frigidaire Oven Rail
11A3203722 Frigidaire Oven Rail
12SPRING
13HINGE – LH
13AHINGE – RH
