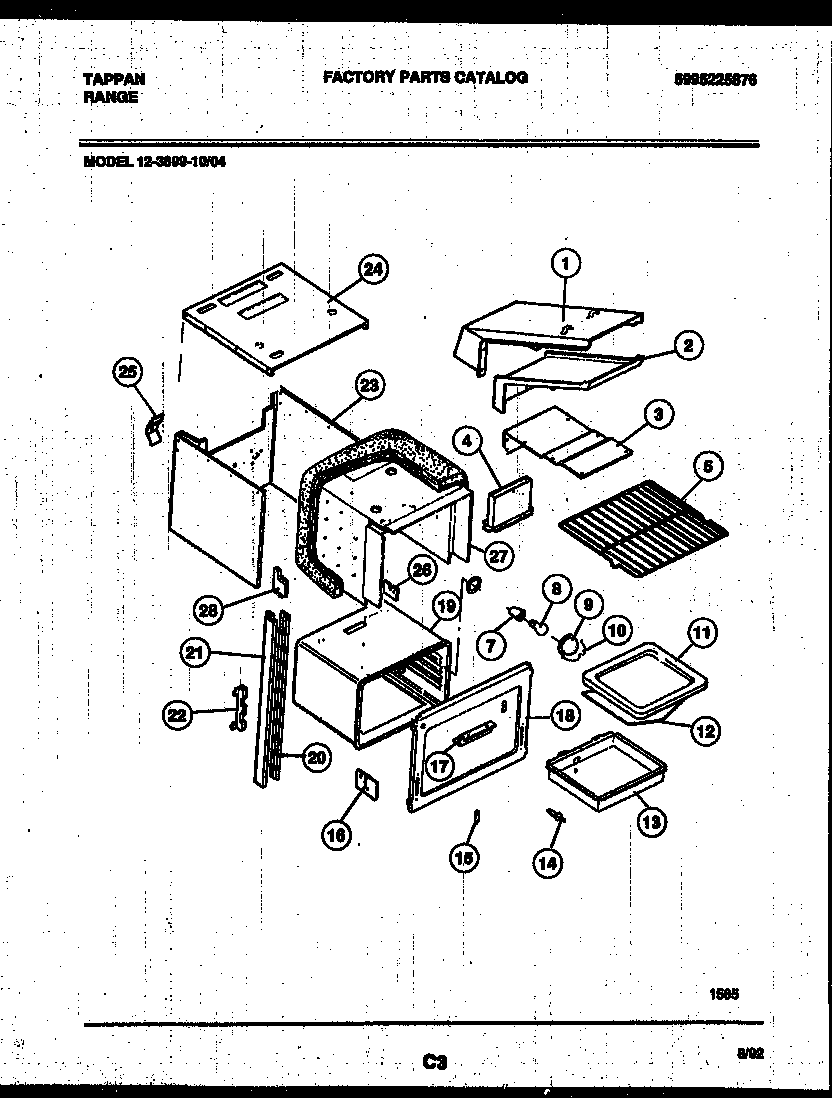

12-3699-00-04 05 – BODY PARTS

Products

Position	Product
*77303	BUTTON-PLUG
*77303	CP, B/G END LH, BLACK
1	SHIELD-FLUE COVER
2	WCI 3203725
3	SHIELD – FLUE BOTTOM
4	ADAPTER-FLUE
5	318345216 Frigidaire Oven Rack
7	316116400 Frigidaire Oven Light Socket
8	316538904 Frigidaire Oven Lamp Light
9	5304524341 Frigidaire Lens
10	WIRE, GLASS RETAINER
11	WCI 3203721
12	BAFFLE-OVEN BTTM
13	WCI 3204724
14	WCI 5301314211
15	WCI 3202082
16	WCI 3019063
17	SHIELD-VENT
18	WCI 3202463
19	WCI 3204783
20A	WCI 3203803
20	WCI 3203802
21	WCI 5303291238
22	WCI 3201631
23	WCI 3203861
24	WCI 3203690
25A	WCI 3202093
25	WCI 3016281
25D	5303284616 Frigidaire Range Bulb Clip Thermostat
25C	INSUL. ADAPTOR
25B	BRACKET-OVEN VENT
26	WCI 3203680
27	SHIELD-OVEN, TOP & SIDES
28A	END CAP, BLACK, LH
28	END CAP, BLACK, RH
