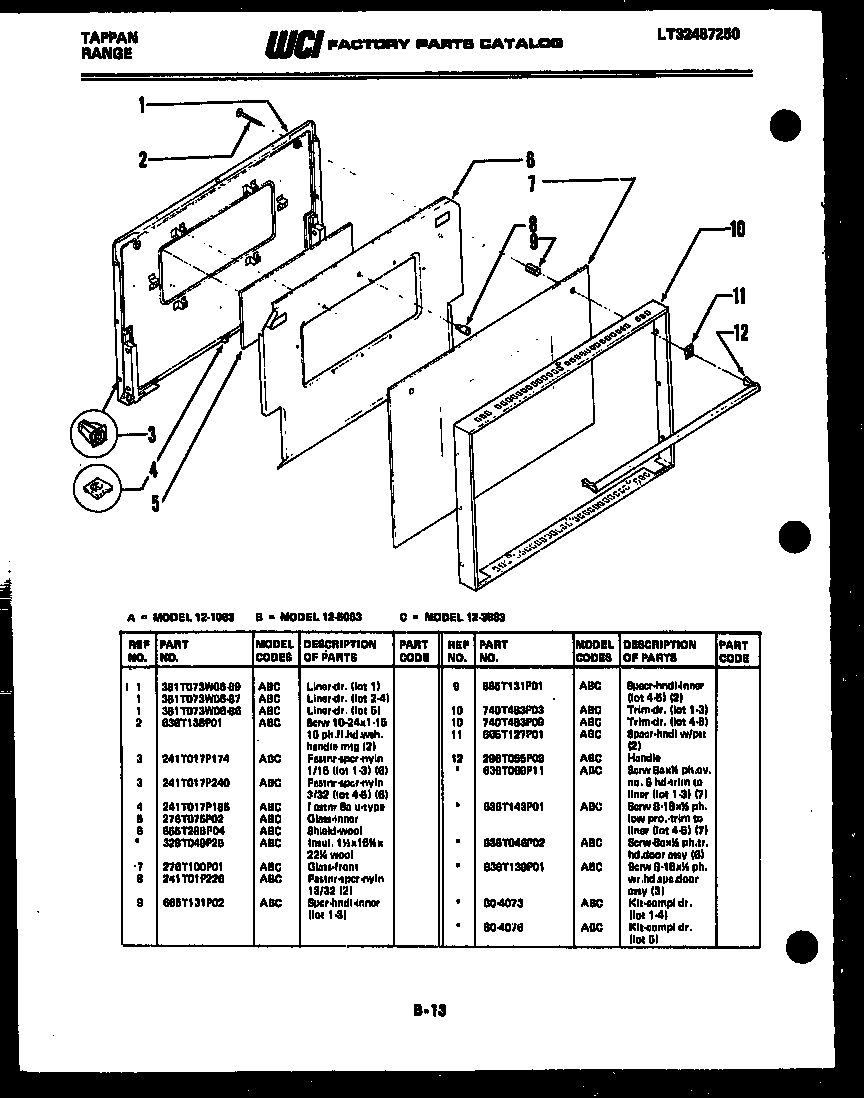

12-3883-00-01 07 – DOOR PARTS

Products

Position	Product
*81418	5303300265 Frigidaire Oven Screw
*81421	WCI 80-4076
*81421	WCI 80-4073
*81420	SCREW SW PNL. (7)
*81421	SCREW-DR ASSY 8-18 X 1/2“ PH WR HD SPC (3)
1	WCI 381T073W06-87
1	WCI 381T073W06-89
1	WCI 381T073W06-86
2	SCREW HANDLE MTG (2)
3	FASTNR-NYLN SPACR 3/32“ (5)
3	FASTNR-NYLON PUSH-IN SPACR (5)
4	FSTNR 8AU TYPE (3)
5	WCI 276T075P02
6	WCI 655T288F04
6A	INSULATION (1 1/2 X 16-3/4 X 22 1/4“) WOOL (NON-ILLUSTRATED)
7	GLASS-OUTER
8	WCI 241T01P226
9	SPACER, HANDLE MOUNTING
9	SPCR, TUBE HNDL (2)
10	FRAME DOOR
10	FRAME DOOR
11	SPACER-HANDLE (2)
12	WCI 296T055P09
