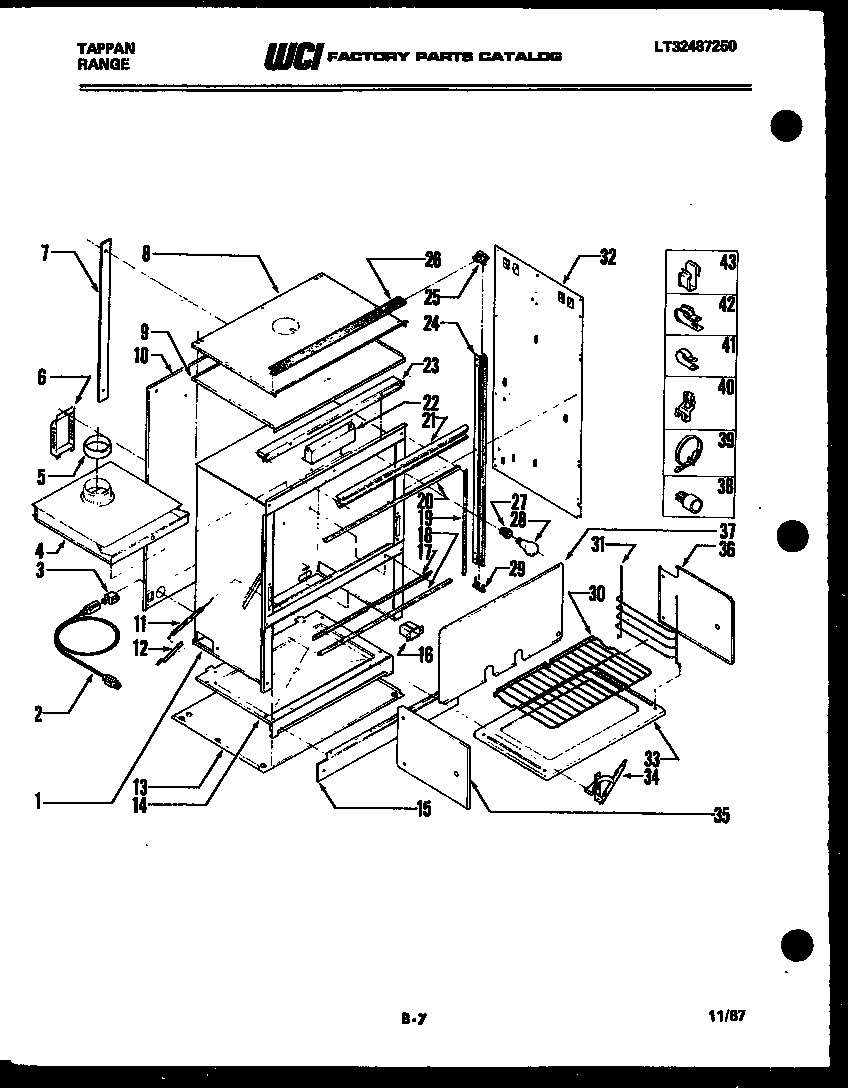

12-3883-23-01 04 – BODY PARTS

Products

PositionProduct
*81344WCI 328T015P93
*81341WCI 636T090P35
*81345INSULATION-WOOL (TOP & SIDES)
*81340FASTENER-8AJ (2)
*81347WCI 560T691P239
*81347WCI 560T691P224
*81344WCI 328T015P114
*81339711T047P93 Frigidaire Oven Terminal
*81344WCI 328T015P94
*81340FASTNR-8A U-TYPE
2WCI 171T021P08
3WCI 558T034P01
3WCI 558T041P01
4WCI 256T007W05
5CAP-FLUE
6COVER-IGNITER
7WCI 740T487F01-18
7ASCREW-DR ASSY 8A X 3/8“ PH TR HD (10)
8WRAPPER OUTER TOP
9WCI 812T007F02
10WCI 805T013W03-18
10WCI 805T013W02-18
11SPRING (2)
11ASLEEVE DR SPRING (2)
12WCI 072T476F03
13WCI 036T034F04
14WCI 060T006W04-86
14WCI 060T006W04-87
14WCI 060T006W04-89
15WCI 740T455F01
15WCI 740T455F02-18
16TUBE-IGNITER MTG
17WCI 655T142F07
18WCI 647T069P07
19SEAL DOOR SIDE (2)
20WCI 647T081P04
21WCI 740T411P05
21WCI 740T411P02
23WCI 252T020W03
24WCI 740T328P16
24WCI 740T328P15
25END CAP TOP (2)
26ASCREW END CAP 8A X 3/8 (2) (NON-ILLUSTRATED)
26TRIM TOP
26WCI 740T327P04
27SOCKET
27WCI 662T012P12
28316538904 Frigidaire Oven Lamp Light
29END CAP BTM LH
29END CAP BTM RH
30RACK
31GLIDE OV RACK (2)
32WCI 809T010F09-18
33WCI 058T015F10-89
33WCI 058T015F10-87
33WCI 058T015F10-86
34CAM-OVEN DOOR R
34CAM, OVN DR, LH
34CAM, OVN DR, RH
34AKIT-DOOR ADJUSTMNT (NON-ILLUSTRATED)
34BSCREW-EXTRUSION MTG (8A X 1/2“ PH TR)(B/I TRIM KIT) (10)(NOT ILLUSTRATED)
34CAM-OVEN DOOR L
35WCI 382T023F08-93
36WCI 382T023F11-93
37WCI 379T043F03-93
38WCI 241T017P97
395304464772 Frigidaire Refrigerator Wire Tie
405303284616 Frigidaire Range Bulb Clip Thermostat
41FASTNR-WIRE CLAMP LOT 1
42FASTNR-CLAMP-POWER CORD
43FSTNR CABLE CLAMP
