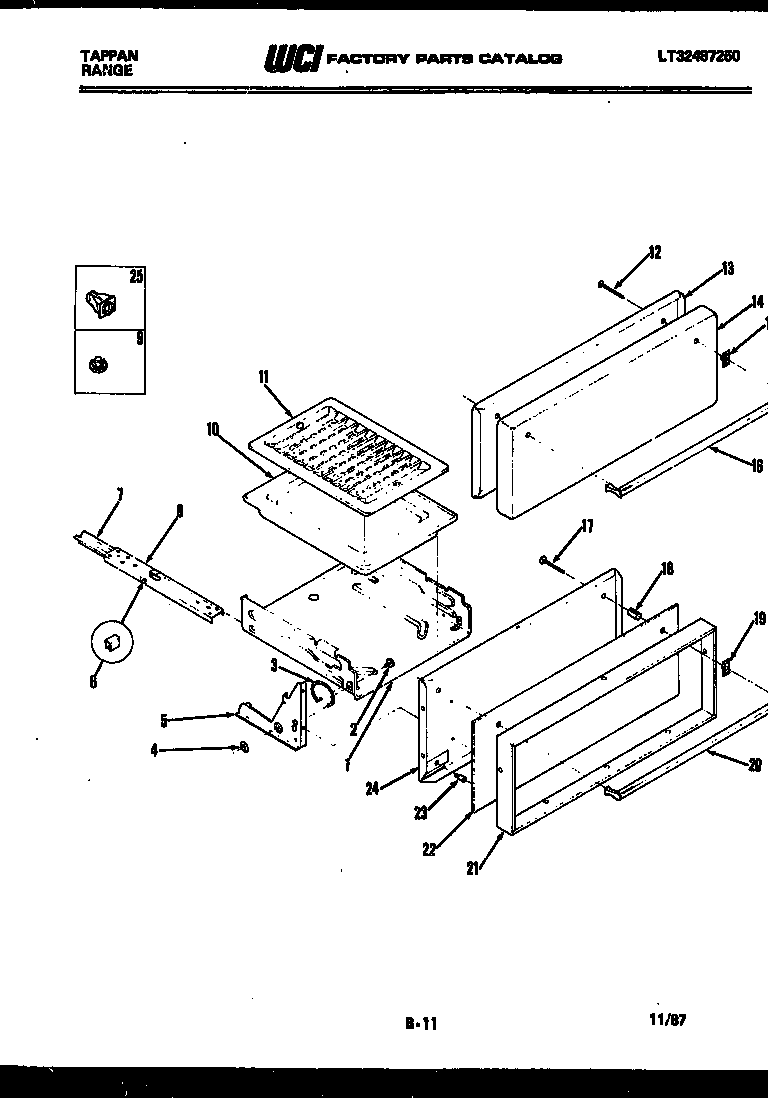

12-3883-66-01 06 – BROILER DRAWER AND DOOR PARTS

Products

Position	Product
*81407	5303300265 Frigidaire Oven Screw
*81409	SCREW-DR ASSY 8-18 X 1/2“ PH WR HD SPC (3)
1	DRAWR-BROILR-CHAR. GRAY (LOT 1-4)
1	DRAWR-BROILR-LOT 1
1	BODY, BROILER
2	PIN, HINGE (2)
3	SPRING-BROILR LH C-TYPE
3	SPRING-BROILR RH C-TYPE
4	FASTNR-PUSH NUT 1/4“ D STUD
5	WCI 072T659F04-08
5	WCI 072T659F03-08
5	WCI 072T659F02
5	WCI 072T659F01
6	BUTTON-GUIDE
7	CHANNEL-GLIDE-LOWER LOT 1
7	CHANNEL-GLIDE-LOWER LOT 2,3
8	CHANL-GLIDE UPPER LOT 1-9
8	CHANL-GLIDE UPPER LOT 11
9	BUTTON-GLIDE 27/64“ D.
10	PAN, BROILER
10	PAN-BROILER (CHAR. GRAY W/ F)
10	PAN-BROILER LOT 1
11	INSERT-BROILER PAN (CHAR. GRAY W/ F)
11B	SCREW DUCT (2) (NON-ILLUSTRATED)
11	WCI 80-4049
11	INSERT-BROILR PAN LOT 2,3
11A	SCREW-EXTRUSION MTG (8A X 1/2“ PH TR)(B/I TRIM KIT) (10)(NOT ILLUSTRATED)
11	WCI 80-4046
11	INSERT-BROILR PAN LOT 1
13	WCI 381T085F03-86
13	WCI 381T085F03-87
13	WCI 381T085F03-89
14	WCI 517T004W10-00
14	WCI 517T004W10-57
14	WCI 517T004W10-23
14	WCI 517T004W10-45
14	WCI 517T004W10-66
16	WCI 80-4053
16	WCI 296T055P04
16A	SCREW SW PNL. (7)
16	WCI 80-4056
17	SCREW HANDLE MTG (2)
18	SPCR, TUBE HNDL (2)
18	SPACER, HANDLE MOUNTING
19	SPACER-HANDLE (2)
20	WCI 296T055P09
21	WCI 740T483P04
21	WCI 740T483P10
22	WCI 276T102P01
23	FASTENER-SPACER (5/8“ NYLON) (5)
24	WCI 381T085W02-87
24	WCI 381T085W02-89
24	WCI 381T085W02-86
24A	WCI 328T015P22
25	FASTNR-NYLON PUSH-IN SPACR (5)
25	FASTNR-NYLN SPACR 3/32“ (5)
