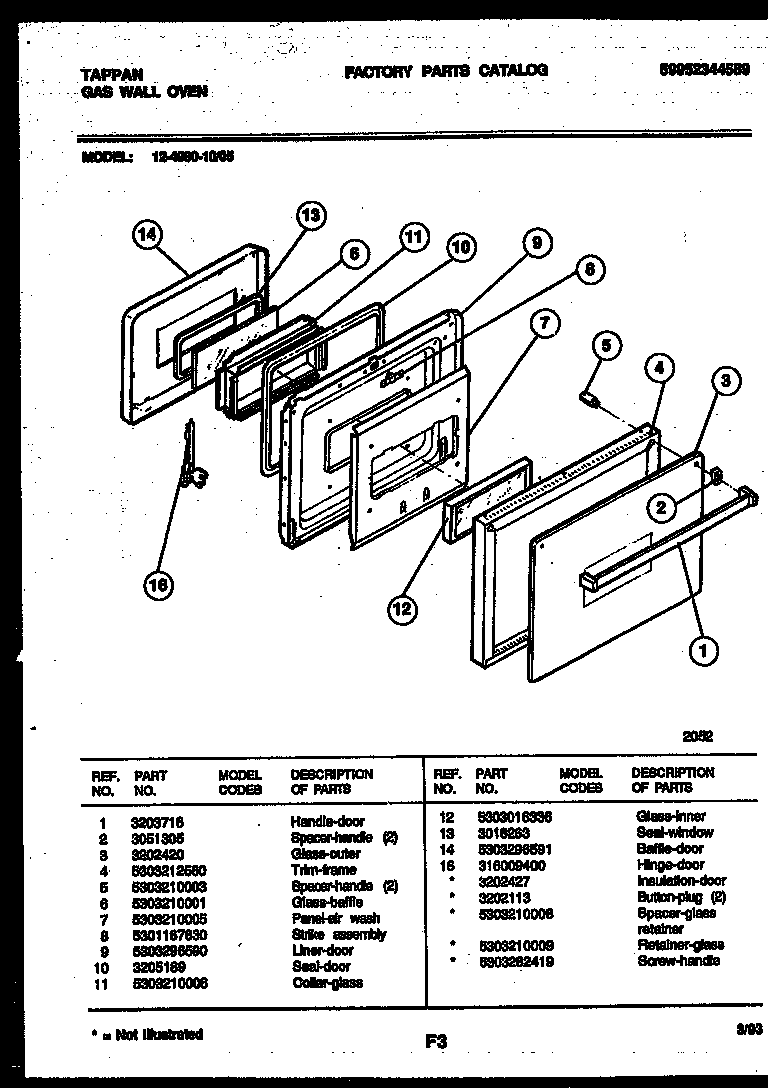

12-4980-00-05 03 – DOOR PARTS

12-4980-00-05 03 – DOOR PARTS

Written by

in

12-4980-00-05 03 – DOOR PARTS

Products

PositionProduct
*83925Plug,button
*83925WCI 5303210009
*83925SCREW, HANDLE
*83924WCI 3202427
*83925SPACER-GLASS
1WCI 3203716
2SUPPORT-FLU LIGHT RECEPT
3WCI 3202420
4WCI 5303212560
5SPACER-HANDLE MTG, (2)
6GLASS – BAFFLE (2)
7WCI 5303210005
8WCI 5301167830
9WCI 5303296590
10WCI 3205189
11WCI 5303210006
12GLASS-OVEN DOOR, HEAT BARRIER
13WCI 3016263
14WCI 5303296591
16WCI 316009400
