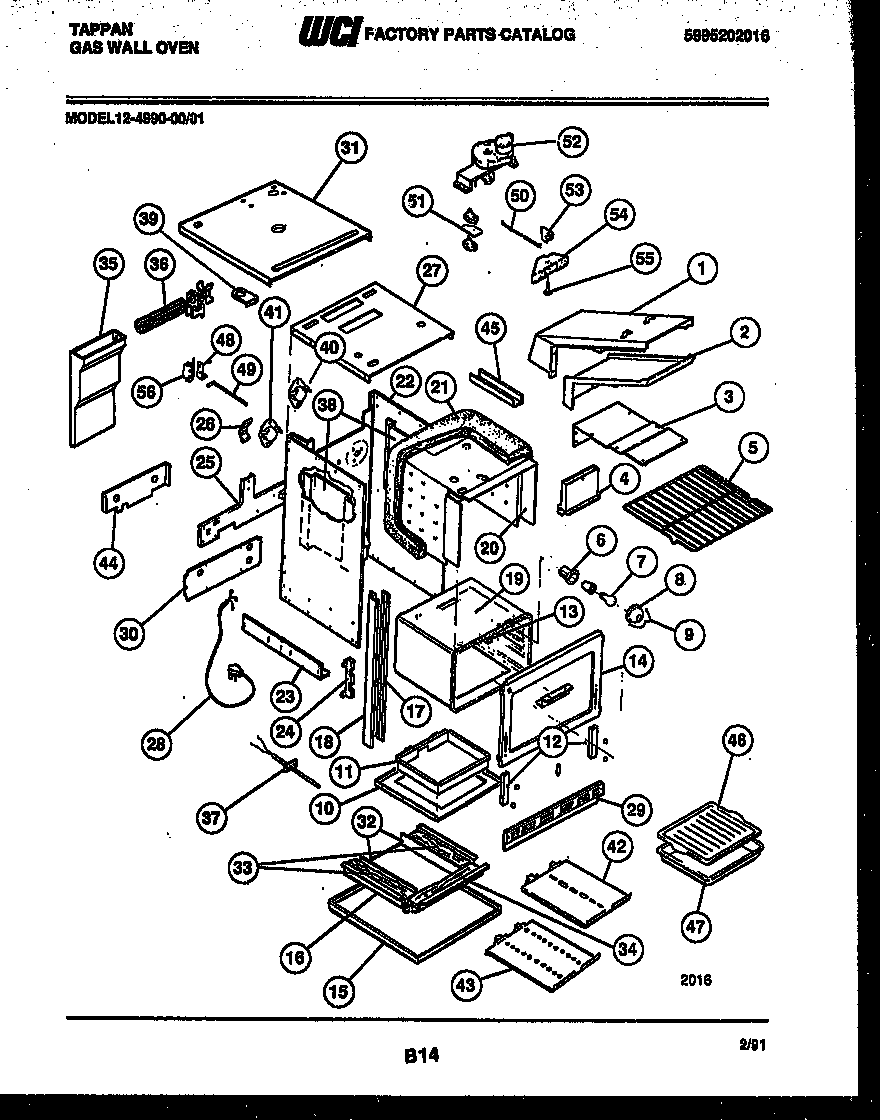

12-4990-00-01 06 – BODY PARTSadmin2025-04-26T08:34:47+00:0012-4990-00-01 06 – BODY PARTS
Products
| Position | Product |
|---|
| *45331 | WCI 19100260004 |
| *45331 | Bracket,light switch |
| 1 | SHIELD-FLUE |
| 2 | WCI 3203725 |
| 3 | SHIELD - FLUE BOTTOM |
| 4 | ADAPTER-FLUE |
| 5 | WCI 3202442 |
| 6 | 316116400 Frigidaire Oven Light Socket |
| 7 | 316538904 Frigidaire Oven Lamp Light |
| 8 | 5304524341 Frigidaire Lens |
| 9 | WIRE, GLASS RETAINER |
| 10 | BOTTOM - OVEN |
| 11 | WCI 5303210700 |
| 12 | WCI 3203688 |
| 13 | WCI 3202082 |
| 14 | WCI 3202449 |
| 15 | WCI 3202447 |
| 16 | WCI 5303210706 |
| 17A | TRIM-SIDE, INNER, RH |
| 17 | TRIM-SIDE, INNER, LH |
| 18 | WCI 5303271086 |
| 19 | WCI 5303210715 |
| 20 | SHIELD-OVEN, TOP & SIDES |
| 21D | INSULATION, TOP & SIDES |
| 21B | WCI 5303210709 |
| 21C | WCI 5303210708 |
| 21 | INSULATION, OVEN BACK |
| 21A | INSULATION, OVEN TOP |
| 22 | WRAPPER, BACK & SIDES |
| 23 | SUPPORT-HEIGHT ADJUSTMENT (2) |
| 24 | WCI 3201631 |
| 25 | WCI 5303210721 |
| 26 | WCI 3204114 |
| 27 | WCI 5303210683 |
| 28 | WCI 3203699 |
| 29 | TRIM-BASE |
| 30 | COVER-ACCESS |
| 31 | WRAPPER, TOP |
| 32 | ANGLE-BURNER BOX |
| 33 | INSULATION-BOTTOM, SIDES, (2) |
| 34 | INSULATION-BOTTOM, TOP |
| 35 | DUCT-BLOWER |
| 36 | MOTOR-BLOWER |
| 37 | PROBE-OVEN TEMP |
| 38 | SHIELD-BODYSIDE |
| 39 | WCI 5303210842 |
| 40 | WCI 5303210645 |
| 41 | SWITCH-THERMO |
| 42 | SHIELD-INSULATION |
| 43 | SHIELD-HEAT, LOWER |
| 44 | WCI 5303210845 |
| 45 | SHIELD-INSULATION |
| 46 | WCI 5303019066 |
| 47 | WCI 5303207208 |
| 48 | WCI 3202384 |
| 49 | WCI 3202077 |
| 50 | WCI 3016241 |
| 51 | BRACKET-MOTOR MTG |
| 52 | WCI 5303210725 |
| 53 | LATCH-DOOR |
| 54 | HOUSING-DOOR LATCH |
| 55C | WCI 3019069 |
| 55 | AXLE - HINGE (2) |
| 55D | WCI 008T465F01 |
| 55B | INSULATION, OVEN BOTTOM |
| 55A | WCI 3201632 |
| 55E | SHIELD, BURNER BOX |
| 56 | WCI 5303211059 |
