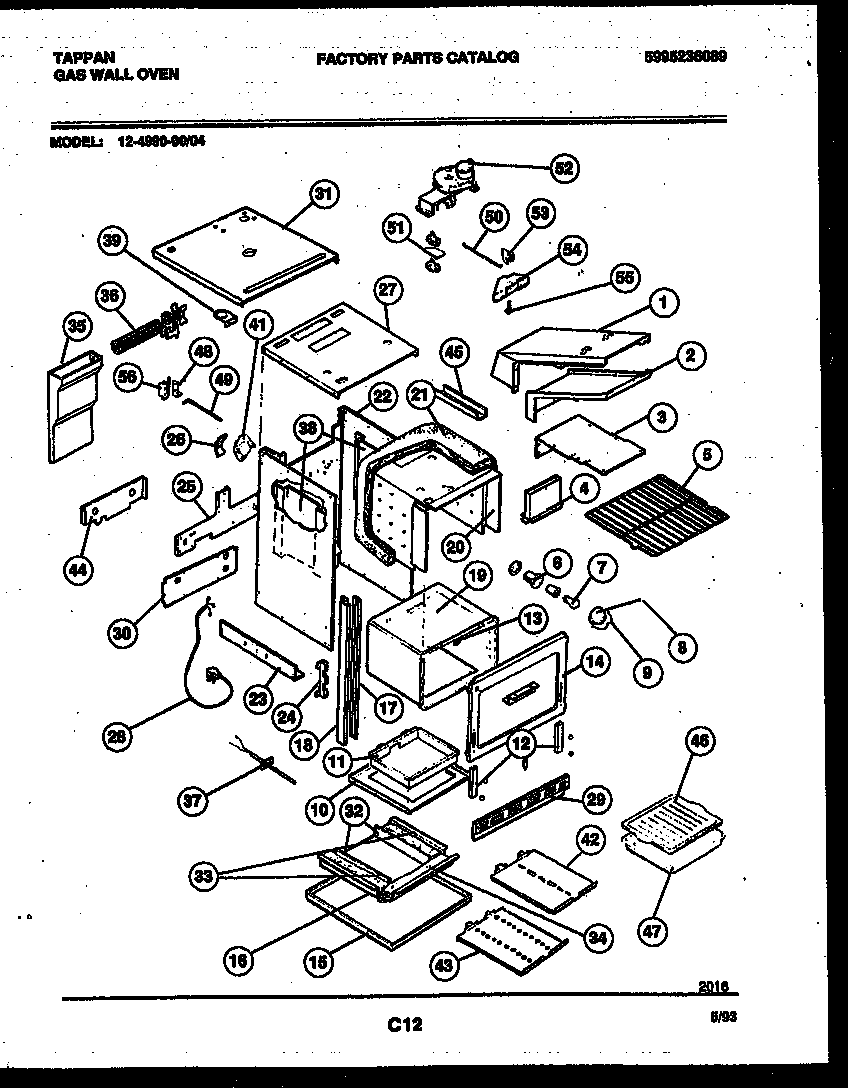

12-4990-00-04 06 – BODY PARTS

12-4990-00-04 06 – BODY PARTS

Written by

in

12-4990-00-04 06 – BODY PARTS

Products

PositionProduct
*85282WCI 3204114
*85282WCI 19100260005
1SHIELD-FLUE
2WCI 3203725
3SHIELD – FLUE BOTTOM
4ADAPTER-FLUE
5WCI 3202442
6SOCKET-LIGHT/LAMP, OVEN
7316538904 Frigidaire Oven Lamp Light
85304524341 Frigidaire Lens
9WIRE, GLASS RETAINER
10PANEL-OVEN BOTTOM
11WCI 5303210700
12WCI 3203688
14WCI 5303296326
15WCI 3202447
16WCI 5303210706
17ATRIM-SIDE, INNER, RH
17TRIM-SIDE, INNER, LH
18TRIM, SIDE OUTER (2)
19LINER-OVEN ASSY
20SHIELD-OVEN, TOP & SIDES
21BWCI 5303210709
21AINSULATION, OVEN TOP
21INSULATION, OVEN BACK
21CWCI 5303210708
21DINSULATION, TOP & SIDES
22WRAPPER, BACK & SIDES
23SUPPORT-HEIGHT ADJUSTMENT (2)
24WCI 3201631
25WCI 5303210721
26WCI 3016281
27WCI 5303210683
28WCI 3203699
29TRIM-BASE
30COVER-ACCESS
31WRAPPER, TOP
32ANGLES-SHIELD
33INSULATION-BOTTOM, SIDES, (2)
34INSULATION-BOTTOM, TOP
35DUCT-BLOWER
36MOTOR-BLOWER
37PROBE-OVEN TEMP
38SHIELD-BODYSIDE
39WCI 5303210842
41SWITCH-THERMO
42SHIELD-HEAT, LOWER
43SHIELD-INSULATION
44WCI 5303210845
45SHIELD-INSULATION
46BROILER GRILL
47BROILER PAN
48WCI 3202384
49WCI 3202077
50WCI 3016241
51BRACKET-MOTOR MTG
52WCI 5303269766
53LATCH-DOOR
55AXLE – HINGE (2)
55CHOUSING-DOOR LATCH
55ESHIELD, BURNER BOX
55DWCI 3019063
55BINSULATION, OVEN BOTTOM
55AWCI 3201632
56SWITCH – OVEN LIGHT
