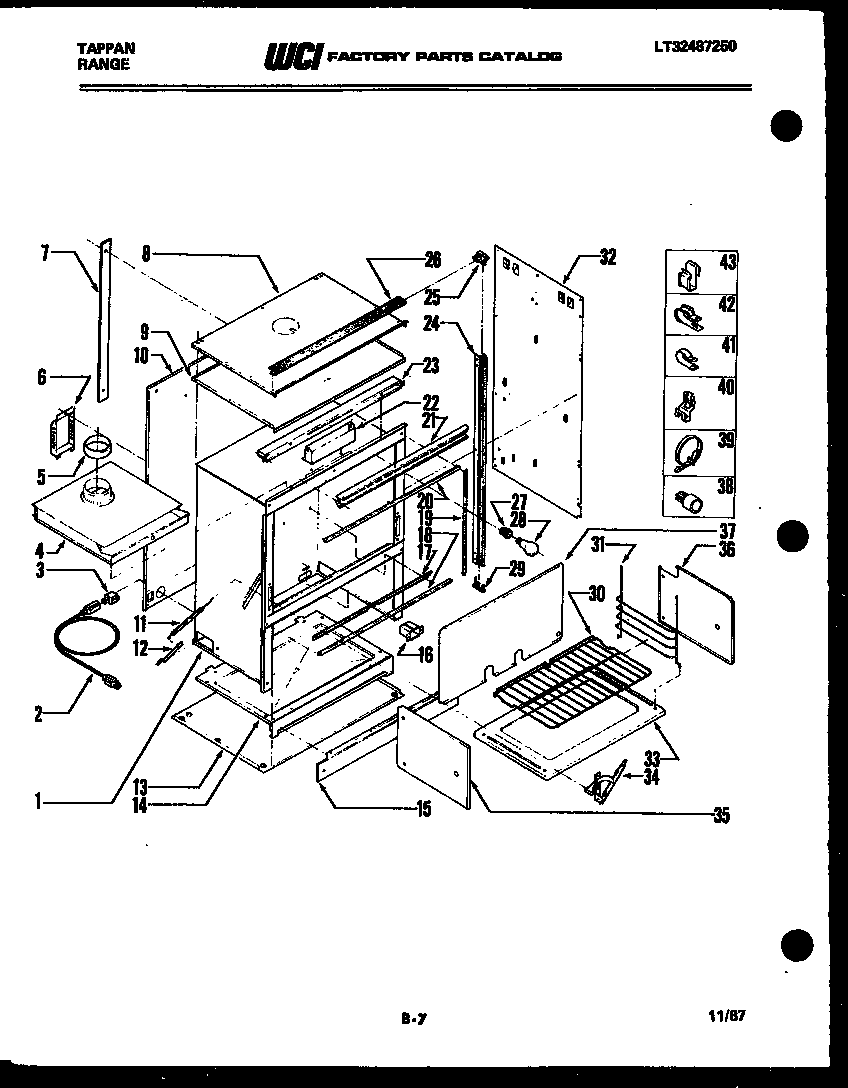

12-5063-66-05 04 – BODY PARTS

Products

Position	Product
*81340	FASTENER-8AJ (2)
*81342	WCI 328T015P91
*81341	WCI 636T090P35
*81343	WCI 328T015P115
*81343	WCI 328T015P92
*81340	FASTNR-8A U-TYPE
*81345	WCI 560T691P223
*81346	WCI 560T691P238
*81339	711T047P93 Frigidaire Oven Terminal
2	WCI 171T021P08
3	WCI 558T041P01
3	WCI 558T034P01
6	COVER-IGNITER
7A	SCREW-DR ASSY 8A X 3/8“ PH TR HD (10)
7	WCI 740T487F01-18
8	WRAPPER OUTER TOP
9	WRAPPER INNER TOP
10	WCI 805T013W03-18
10	WCI 805T013W02-18
11A	SLEEVE DR SPRING (2)
11	SPRING (2)
12	WCI 072T476F03
13	WCI 036T034F04
14	WCI 060T006W04-86
14	WCI 060T006W04-89
14	WCI 060T006W04-87
15	WCI 740T455F01
15	WCI 740T455F02-18
16	TUBE-IGNITER MTG
17	WCI 655T142F07
18	WCI 647T069P07
19	SEAL DOOR SIDE (2)
20	WCI 647T081P04
21	WCI 740T411P01
21	WCI 740T411P04
22	FLUE BOX VERTICAL
23	FLUE BOX HORZ
24	WCI 740T328P15
24	WCI 740T328P16
25	END CAP TOP (2)
26	TRIM TOP
26A	SCREW END CAP 8A X 3/8 (2) (NON-ILLUSTRATED)
26	WCI 740T327P04
27	WCI 662T012P12
27	SOCKET
28	316538904 Frigidaire Oven Lamp Light
29	END CAP BTM RH
29	END CAP BTM LH
30	RACK
31	GLIDE OV RACK (2)
32	WCI 809T010F09-18
33	WCI 058T015F10-86
33	WCI 058T015F10-87
33	WCI 058T015F10-89
34	CAM, OVN DR, LH
34	CAM, OVN DR, RH
34A	KIT-DOOR ADJUSTMNT (NON-ILLUSTRATED)
34B	SCREW-EXTRUSION MTG (8A X 1/2“ PH TR)(B/I TRIM KIT) (10)(NOT ILLUSTRATED)
34	CAM-OVEN DOOR L
34	CAM-OVEN DOOR R
35	WCI 382T023F08-93
36	WCI 382T023F11-93
37	WCI 379T043F03-93
38	WCI 241T017P97
39	5304464772 Frigidaire Refrigerator Wire Tie
40	5303284616 Frigidaire Range Bulb Clip Thermostat
41	FASTNR-WIRE CLAMP LOT 1
42	FASTNR-CLAMP-POWER CORD
43	FSTNR CABLE CLAMP
