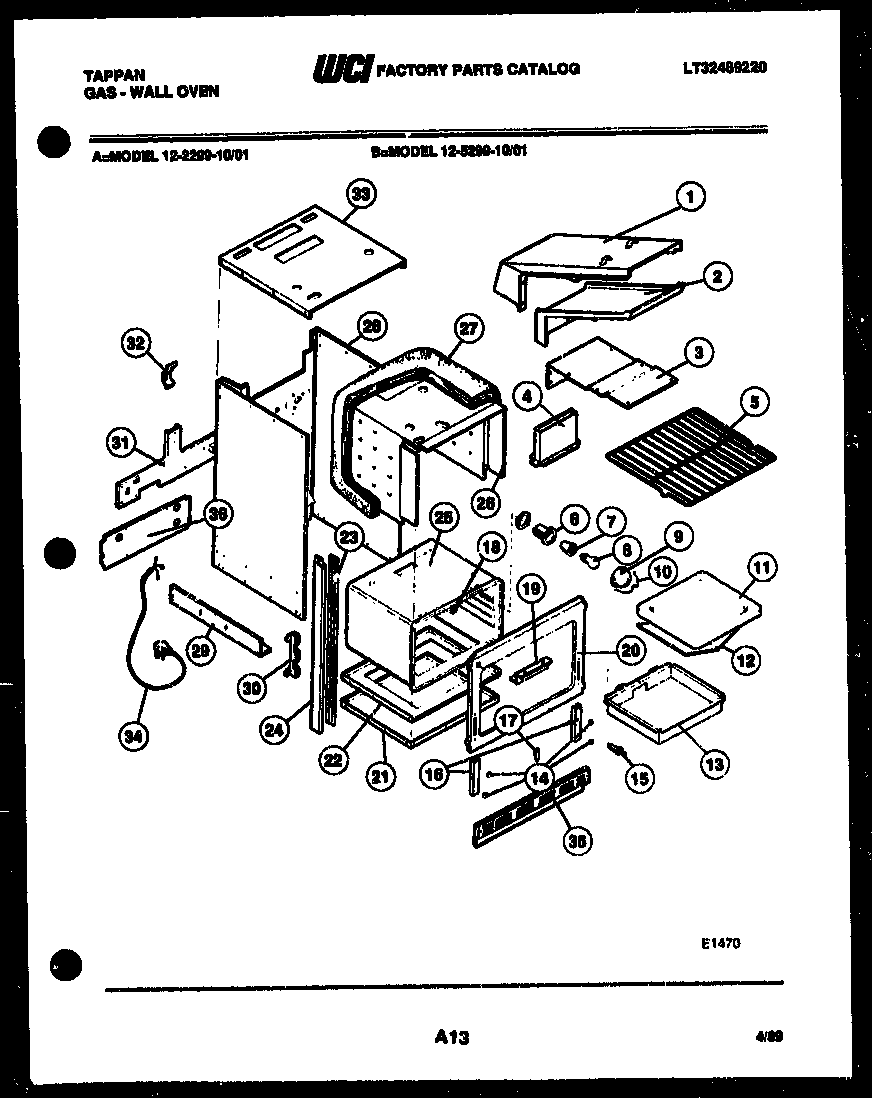

12-5299-00-01 06 – BODY PARTS

Products

Position	Product
*22135	CLIP CAPILLARY (2)
*22136	WCI 3203680
*22136	WCI 3201632
1	SHIELD-FLUE COVER
2	WCI 3203725
3	SHIELD – FLUE BOTTOM
4	ADAPTER-FLUE
5	318345216 Frigidaire Oven Rack
6	WCI 3016243
7	316116400 Frigidaire Oven Light Socket
8	316538904 Frigidaire Oven Lamp Light
9	5304524341 Frigidaire Lens
10	WCI 3016244
11	WCI 3203721
12	BAFFLE-OVEN BTTM
13	WCI 3203731
14	WCI 3203663
15	WCI 3051531
16	WCI 3203688
17	WCI 3019063
18	WCI 3202082
19	SHIELD-VENT
20	WCI 3202463
21	WCI 3202447
22	SHIELD-INSULAT. BASE
23A	TRIM-SIDE, INNER, RH
23	TRIM-SIDE, INNER, LH
24	WCI 3203666
25	WCI 3203727
26	SHIELD-OVEN, TOP & SIDES
27D	INSUL. WRAP.
27C	INSUL. OVEN BTTM.
27B	INSUL. ADAPTOR
27A	INSUL. TOP
27	WCI 3016319
28	WCI 3203689
29	SUPPORT-HEIGHT ADJUSTMENT (2)
30	WCI 3201631
31	BRKT. SAFETY VALVE
32	WCI 3016281
33	WCI 3203690
34	WCI 3203699
35	WCI 3202237
36	COVER-ACCESS
