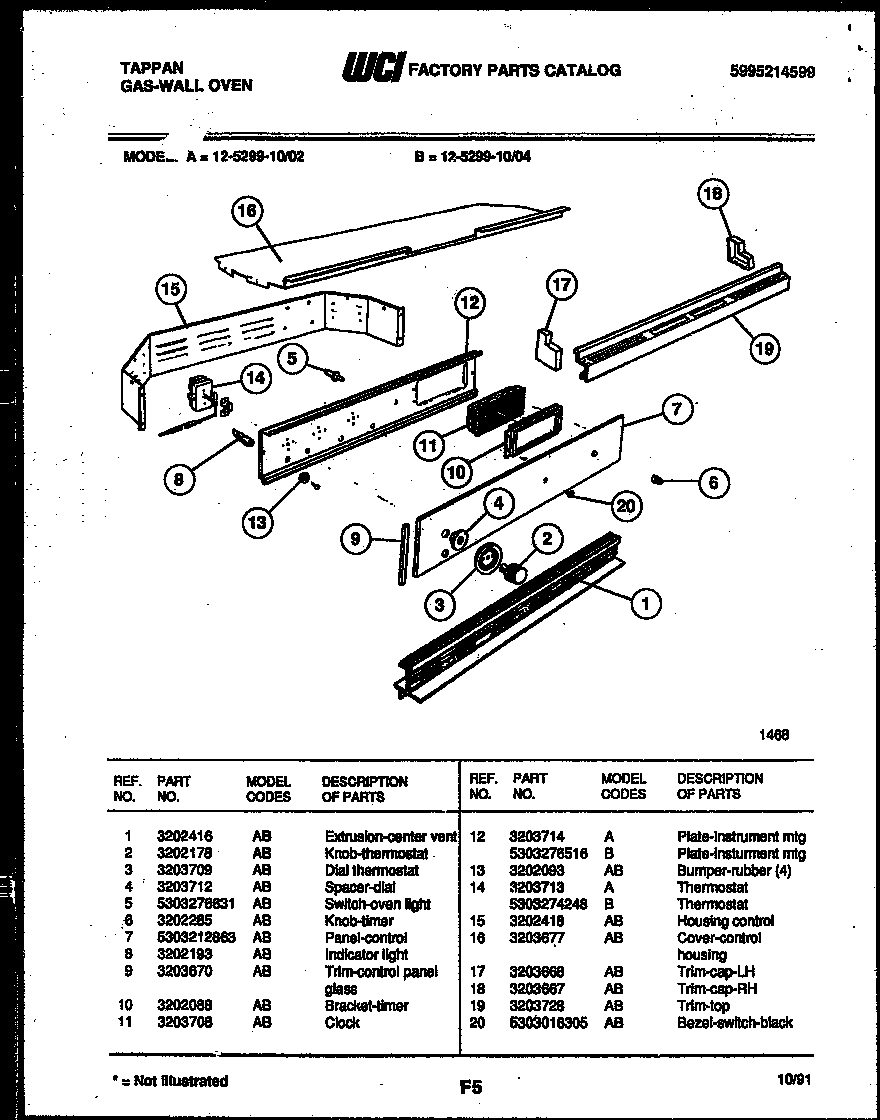

12-5299-00-04 02 – CONTROL PANEL

12-5299-00-04 02 – CONTROL PANEL

Written by

in

12-5299-00-04 02 – CONTROL PANEL

Products

PositionProduct
1TRIM-CENT. VENT
2KNOB (3)
3WCI 3203709
4SPACER-DIAL (3)
5WCI 5303276631
6KNOB-CLOCK
7WCI 5303212863
8WCI 3202193
9TRIM-CONT. PANEL GLASS (2)
10WCI 3202088
11WCI 3203708
12PLATE-INSTRUMENT MTG
13WCI 3202093
14WCI 5303274248
15HOUSING-CONT
16COVER-CONT. HOUSING
17WCI 3203668
18WCI 3203667
19TRIM-TOP
20WCI 5303016305
