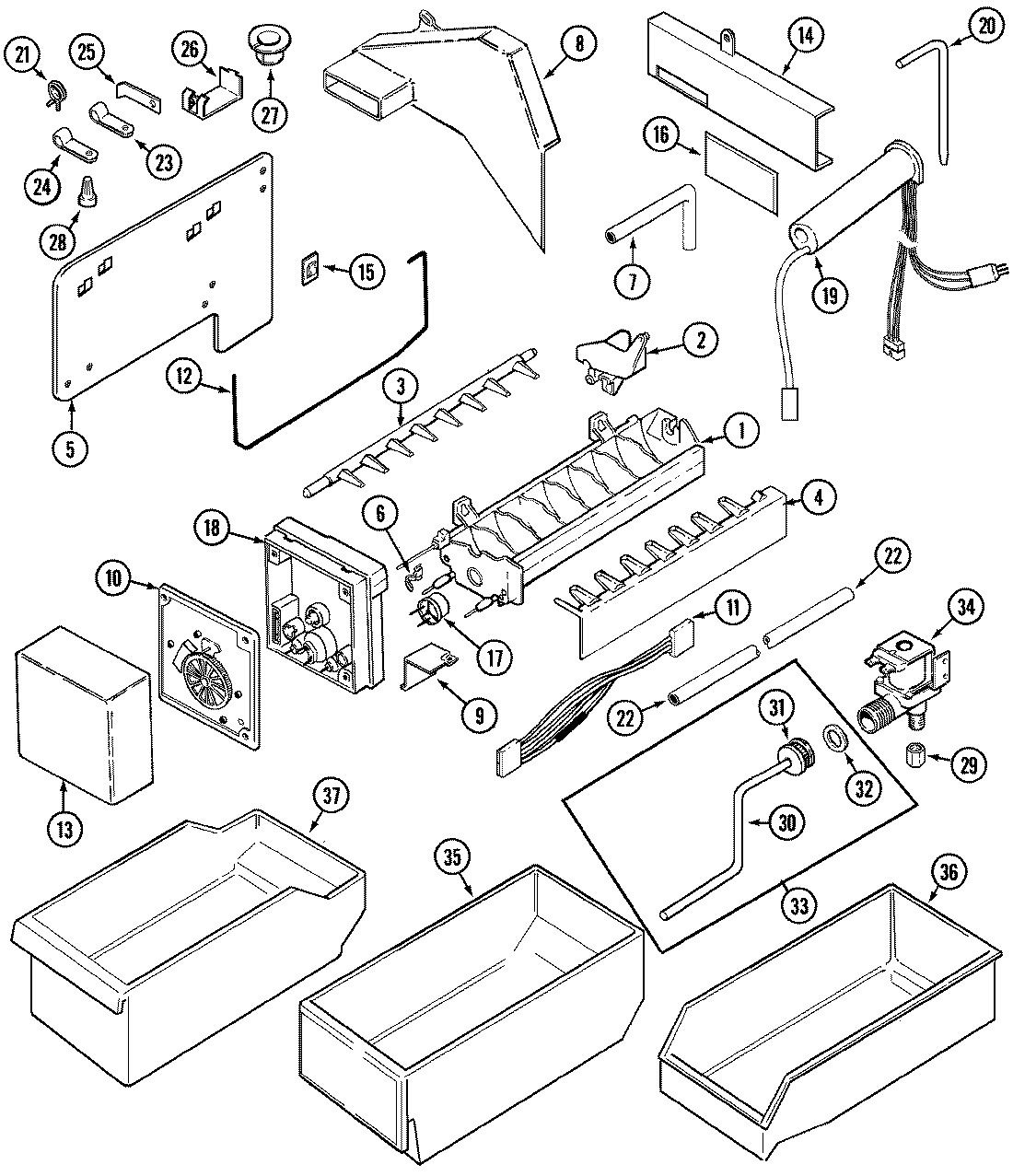

12001294 01 – ICE MAKER KIT (SIDE BY SIDE)

Products

Position	Product
1	D7824706Q Whirlpool Refrigerator Ice Maker Assembly
1	WP99003172 Whirlpool Silicone L
2	WP628356 Whirlpool Refrigerator Fill Cup
3	WP627843 Whirlpool Refrigerator Ejector Arm
4	WP2182124 Whirlpool Refrigerator Stripper Arm
5	MAY 61001600
5	MAY 61001596
6	WP2315522 Whirlpool Refrigerator Clip
7	MAY 61001592
8	MAY Y707113
8	MAY 70198-3
9	MAY 61001595
9	MAY 95108-1
9	BRACKET, MODULE & HEATER
9	MAY 61001594
10	MAY 95109-1
10	WP3387230 Whirlpool Screw
11	MAY 61001593
12	W11342242 Whirlpool Refrigerator Ice Level Arm
13	WPW10289690 Whirlpool Ice Maker Cover
14	MAY 61001597
15	MAY 67619-1
16	MAY 65706-1
17	WP627985 Whirlpool Icemaker Cycling Thermostat
17	MAY 95093-1
18	SCREW
18	WP2195914 Whirlpool Refrigerator Ice Maker Housing
19	MAY 58397-3
19	MAY 402068-103
20	MAY 66759-1
21	MAY 60333-1
22	WPB5705307 Whirlpool Refrigerator Tube
23	W10833902 Whirlpool Refrigerator Clamp
23	MAY 402019-103
24	MAY 23197-8
25	MAY 58443-1
25	W11380570 Whirlpool Microwave Screw
26	MAY 57112-1
27	MAY 53122-4
28	MAY 1555240
29	MAY 55996-5
29	MAY 401017-1
30	MAY 53855-4
31	MAY 24685-1
32	MAY Y013783
33	MAY RA95046-1
34	WP627018 Whirlpool Refrigerator Nut
35	MAY 65065-2
36	MAY 65068-4
37	MAY 66592-1
