12001302 01 – ICE MAKER KIT (TOP MOUNT)

12001302 01 – ICE MAKER KIT (TOP MOUNT)

Written by

in

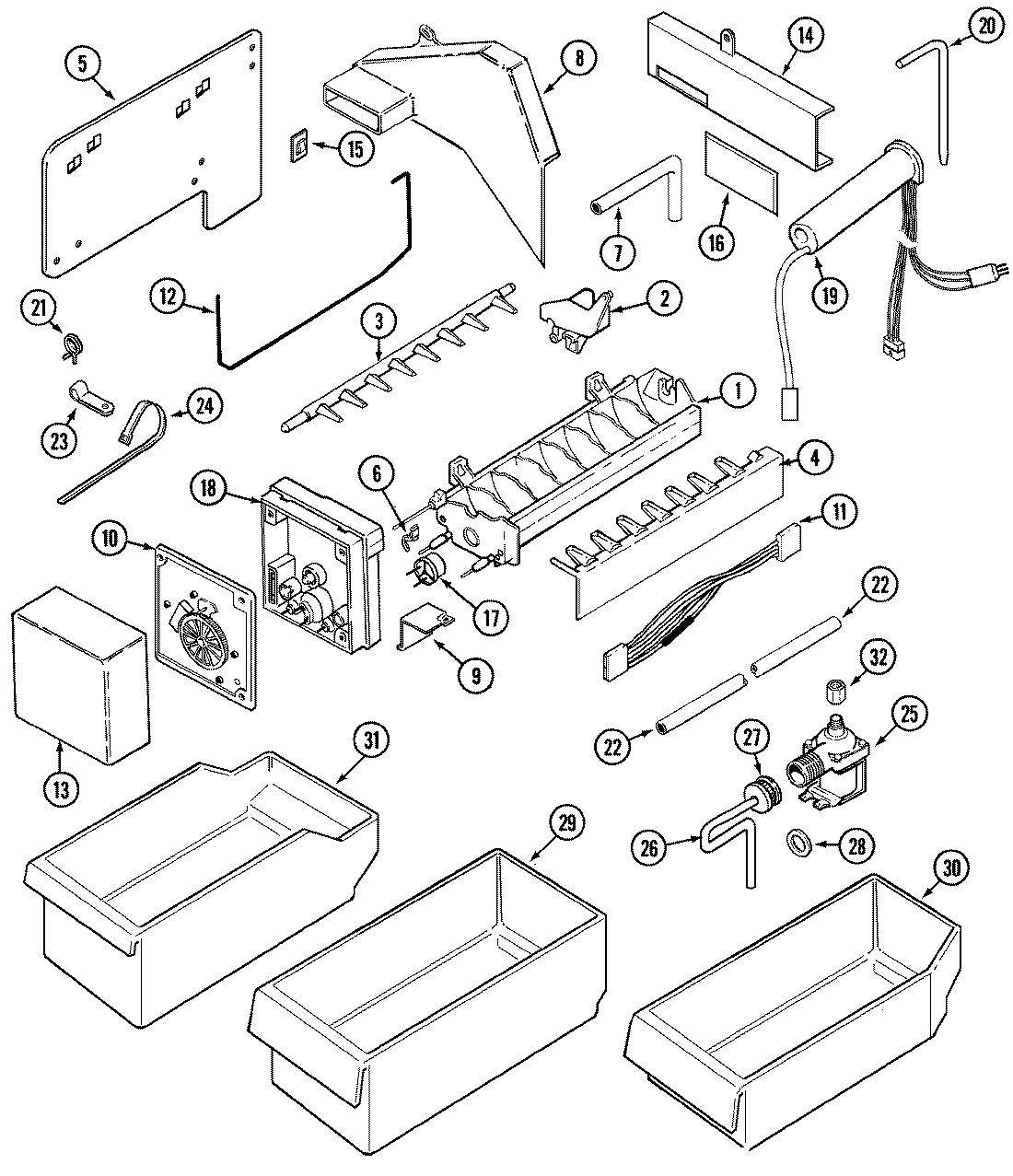

12001302 01 – ICE MAKER KIT (TOP MOUNT)

Products

PositionProduct
1WP99003172 Whirlpool Silicone L
1D7824706Q Whirlpool Refrigerator Ice Maker Assembly
2WP628356 Whirlpool Refrigerator Fill Cup
3WP627843 Whirlpool Refrigerator Ejector Arm
4WP2182124 Whirlpool Refrigerator Stripper Arm
5MAY 61001600
5MAY 61001596
6WP2315522 Whirlpool Refrigerator Clip
7MAY 61001592
8MAY 70198-3
8MAY Y707113
9MAY 61001594
9MAY 61001595
9MAY 95108-1
9BRACKET, MODULE & HEATER
10MAY 95109-1
10WP3387230 Whirlpool Screw
11MAY 61001593
12W11342242 Whirlpool Refrigerator Ice Level Arm
13WPW10289690 Whirlpool Ice Maker Cover
14MAY 61001597
15MAY 67619-1
16MAY 65706-1
17MAY 95093-1
17WP627985 Whirlpool Icemaker Cycling Thermostat
18SCREW
18WP2195914 Whirlpool Refrigerator Ice Maker Housing
19MAY 60198-1
19MAY 402068-103
20MAY 66759-1
21MAY 60333-1
22WPB5705307 Whirlpool Refrigerator Tube
23W10833902 Whirlpool Refrigerator Clamp
23MAY 402019-103
24MAY 66223-1
25MAY 401017-1
25MAY 60184-4
26MAY 60219-2
27MAY 24685-1
28MAY Y013783
29MAY 60588-1
30MAY 60653-1
31MAY 66592-1
32WP627018 Whirlpool Refrigerator Nut
