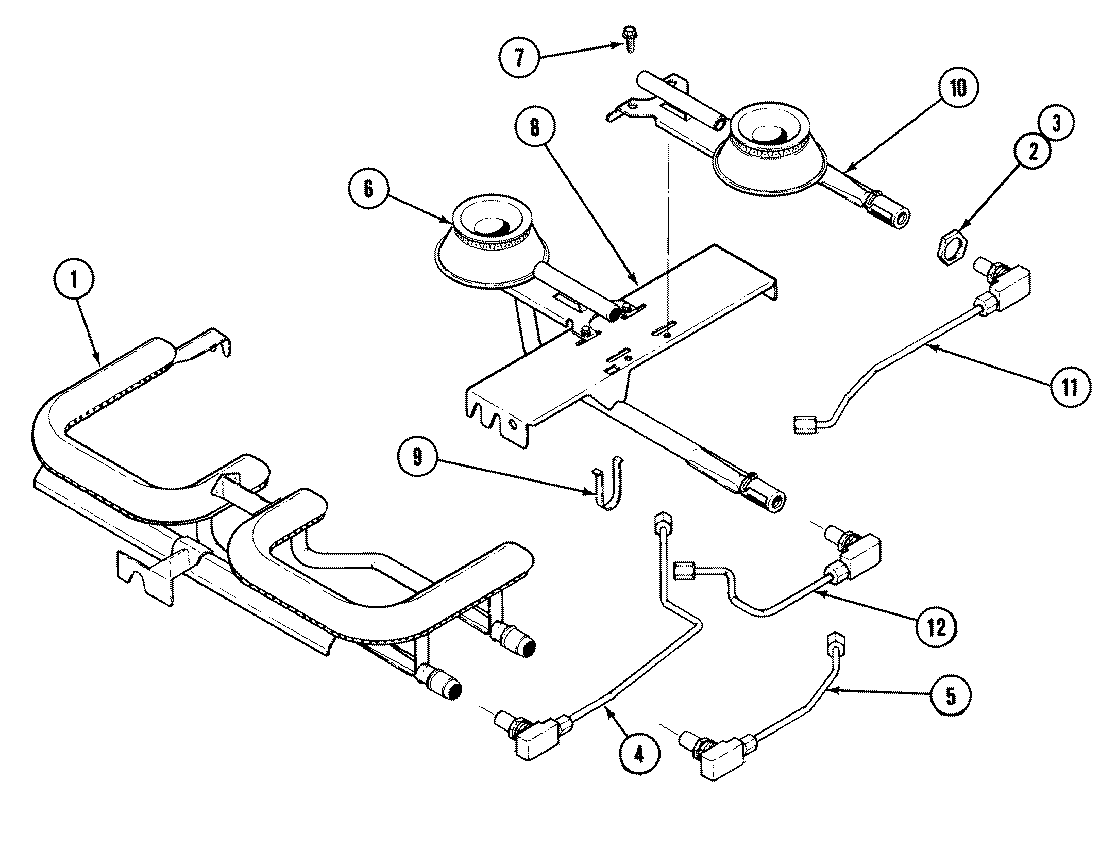

12103 02 – BURNER ASSEMBLY
Written by
in
12103 02 – BURNER ASSEMBLY
Products
Position
Product
1
Y712601 Whirlpool Burner Grille
1
MAY Y712301
2
MAY Y704977
2
MAY Y704588
3
MAY Y704947
3
MAY 704328
4
MAY 704701
4
MAY Y705162
5
MAY Y705163
5
MAY Y704702
6
MAY Y704518
7
WP90767 Whirlpool Screw
8
WP3801F403-80 Whirlpool Bracket
9
MAY 704549
10
MAY Y704517
11
MAY 704700
11
MAY Y705165
12
MAY 704699
12
MAY Y705164
←
