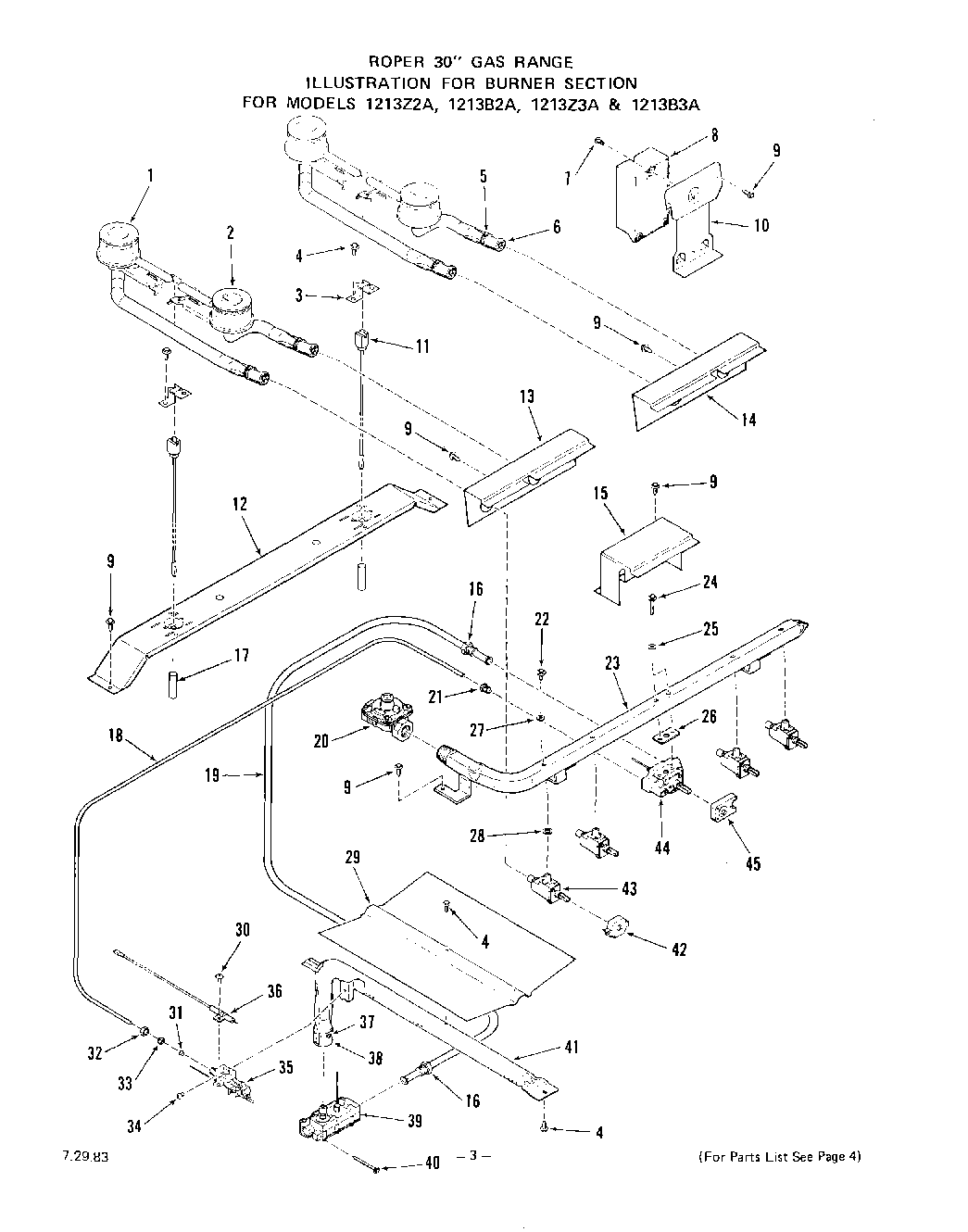

1213^2A 04 – BODY

Products

Position	Product
1	Rear Top Burner-Lt. or Rt. (Inc`s 64 & 65)
2	Front Top Burner-Lt. or Rt. (Inc`s 64 & 65)
3	panel, side l.h. (almond panel, side r.h.)
4	WPL 316365
5	Adjustment Screw-Air Shutter
6	Air Shutter
7	Screw 6-32 x 1/2“
8	Module – Spark Igniter
9	WP112432 Whirlpool Nut Assembly
10	Support-Spark Igniter
11	Panel, Side L.H. (Platinum Panel, Side R.H.)
11	Electrode-Spark Igniter
11	Right
12	Support-Top Burner
13	Valve Cover-Lt.-All Models Except 14633A Models
14	Valve Cover-Rt.-All Models Except 14633A Models
15	Wire Cover-Ov. Therm.-All Models Except 14633A Models
16	Inverted Nut 3/8“
17	Sleeve-Igniter Wire (Lt. or Rt.)
18	Tubing 3/16“
19	Tubing 3/8“
20	Pressure Regulator
21	Loxit Nut 3/16“
22	Mounting Screw (Inc`s 86)
23	Manifold Pipe
24	Mounting Screw (2 Req. for 114)
25	Gasket (For 83)
26	Silicone Rubber Gasket
27	Gasket (For 81)
28	Silicone Rubber Gasket
29	Baffle – Oven Burner
30	Screw 6-32 x 5/16“
31	Orifice Cup Only (For 94)
32	Compression Nut 3/16“
33	Compression Ball Sleeve 3/16“
34	Screw 10-24×1/4“
35	Pilot Only (Inc`s 90)
36	Electrode – Oven Spark Igniter
37	Adjustment Screw -Air Shutter
38	Air Shutter
39	Control Valve (Inc`s 90 & 94)
40	Screw 10-32 x 2“
41	WPL 319255
42	Panel, Side L.H. (White)
43	Gas Valve – 4 Req.
44	WPL 318477
45	WPL 318432
