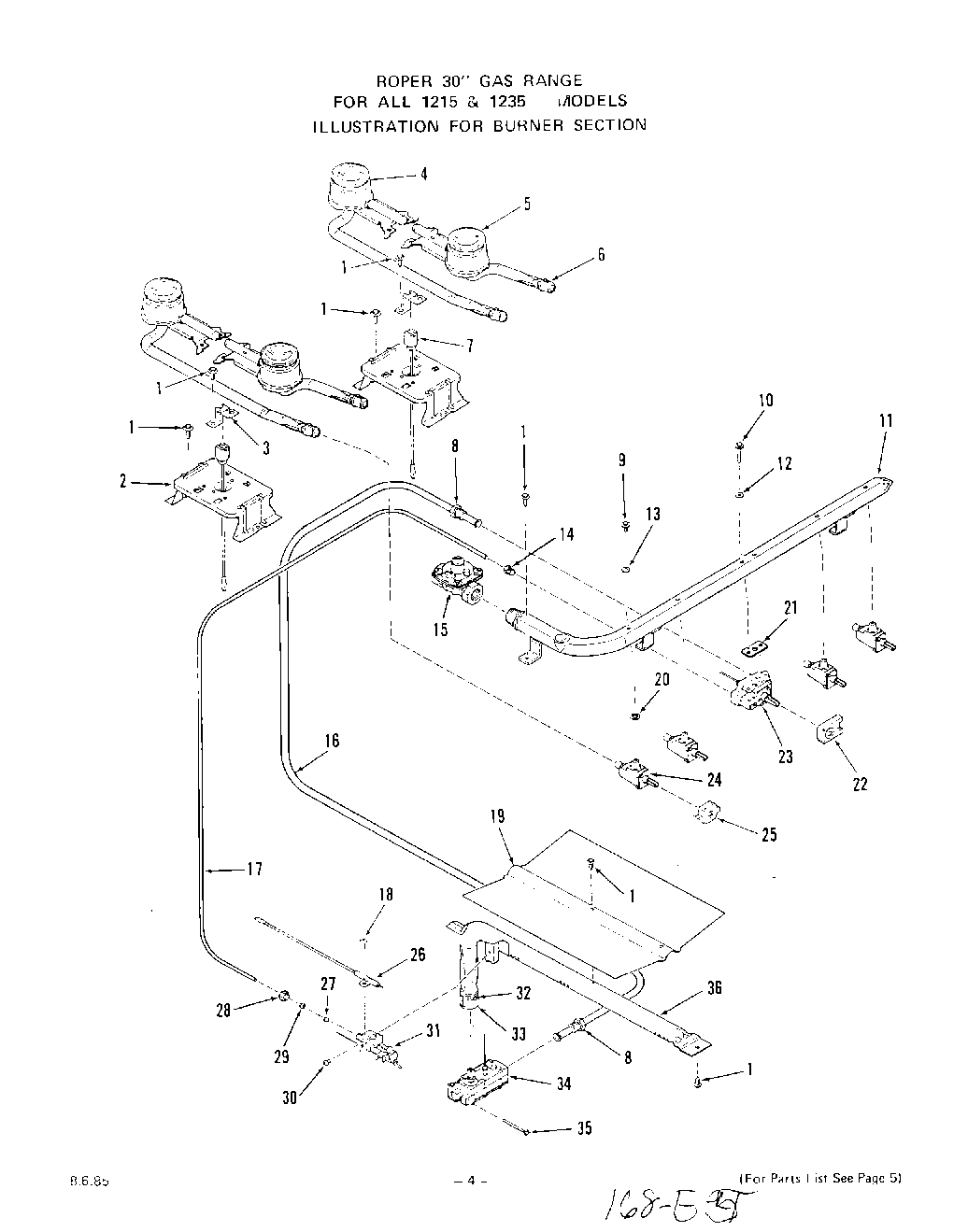

1213W1A 04 – BURNER

Products

Position	Product
1	Screw 10-16×7/16“
2	Support-Top Burner (Lt. or Rt.)
3	panel, side l.h. (almond panel, side r.h.)
4	Rear Top Burner-Rt. or Lt. (Inc`s. Key 4)
5	Front Top Burner-Rt. or Lt. (Inc`s.Key 4)
6	Air Shutter
7	Panel, Side L.H. (Platinum Panel, Side R.H.)
7	Electrode-Spark Igniter (Left)
8	Inverted Nut 3/8“
9	Mounting Screw (Inc`s 86)
10	Mounting Screw (2 Req. for 114)
11	Manifold Pipe
12	Gasket (For 83)
13	Silicone Rubber Gasket (For Key 26)
14	Loxit Nut 3/16“
15	Pressure Regulator
16	Tubing 3/8“
17	WP3149400 Whirlpool Oven Infinite Switch
18	Screw 6Ax3/8“
19	Baffle – Oven Burner
20	Silicone Rubber Gasket
21	Silicone Rubber Gasket
22	WPL 318432
23	Oven Thermostat (Inc`s. 21)
24	Gas Valve (4 Req, Inc`s 32)
24	Gas Valve (4 Req. – Inc`s. 20)
25	Switch-Gas Valve (4 Req)
25	Panel, Side L.H. (White)
26	Electrode-Oven Spark Igniter
27	Orifice Cup Only (For 94)
28	Compression Nut 3/16“
29	Compression Ball Sleeve 3/16“
30	Screw 10-24×1/4“
31	Pilot Only (Inc`s 90)
32	Adjustment Screw -Air Shutter
33	Air Shutter
34	Valve-Safety
35	Screw 10-32 x 2“
36	WPL 319255
