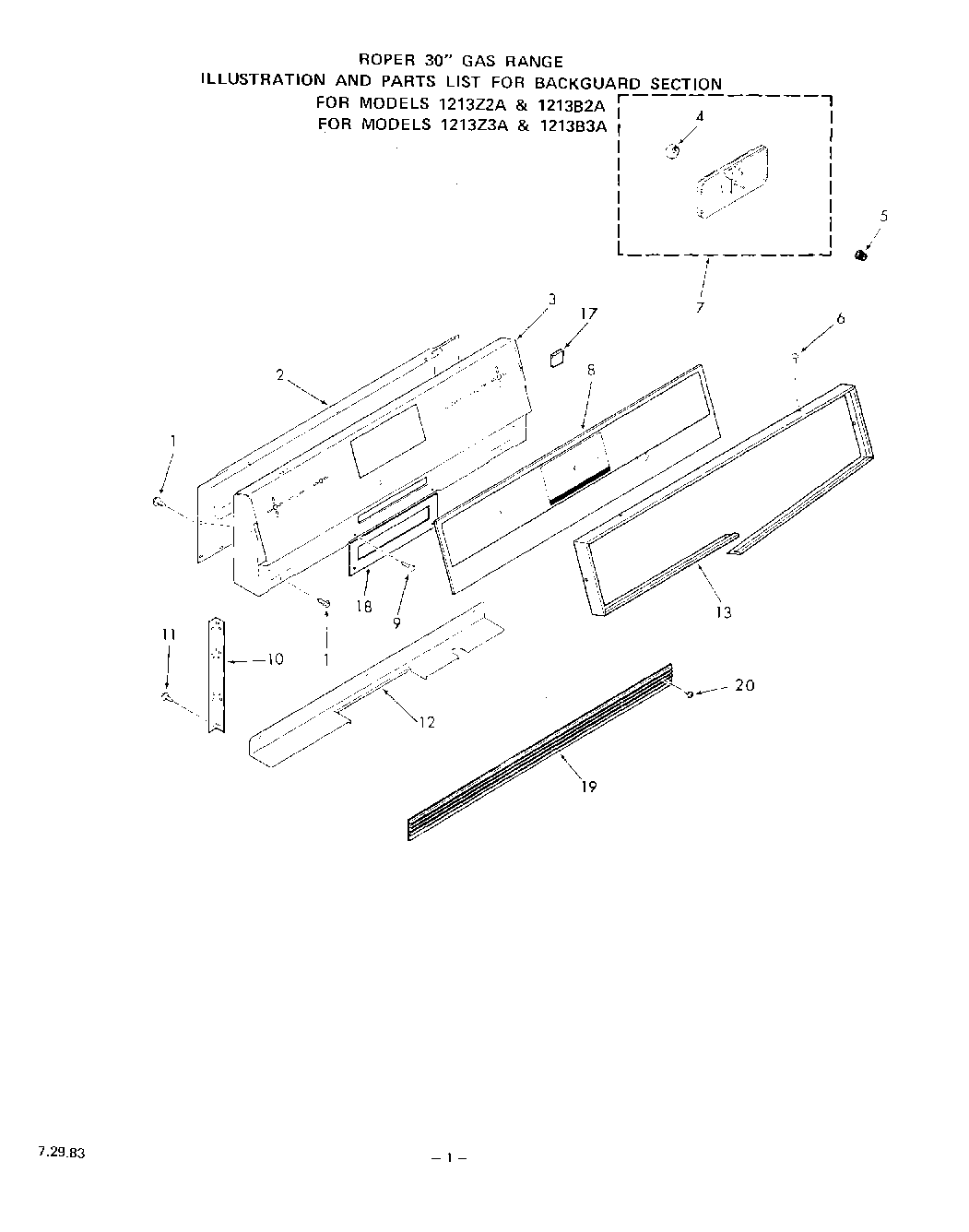

1213Z2A 02 – MAIN TOP

Products

Position	Product
2	Wire Cover-Backguard
3	Backguard Crosstie
3	Almond
3	White
4	Clock Motor
5	Knob-Clock
6	Screw 6-32×3/8“
7	22040A & 1A Models
8	Backguard Glass (All 1215 Models)
10	Support-Backguard (Lt. or Rt.)
11	WP112432 Whirlpool Nut Assembly
12	Bottom-Wire Cover
13	Bezel-Backguard
17	Space
18	Gasket-Flue Box
19	Bottom Trim-Backguard Crosstie
20	Screw 6-32 x 3/8“
