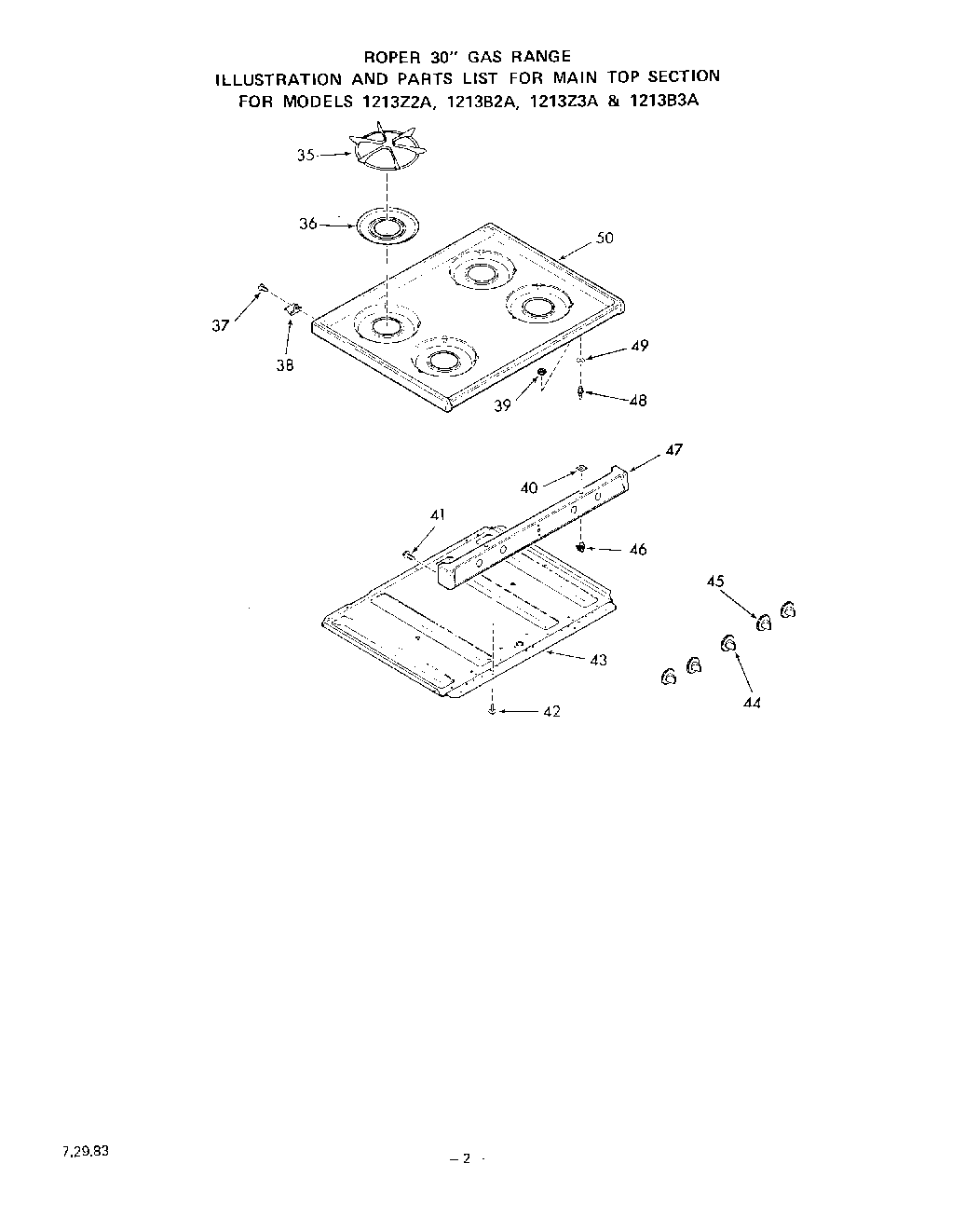

1213Z2A 03 – BURNER

Products

Position	Product
35	Top Grate (4 Required)
36	Spill Bowl
37	Screw 10-32×7/16“
38	Retainer-Main Top (2 Required)
39	Keps Nut 8-32
40	Washer
41	WP112432 Whirlpool Nut Assembly
42	Screw 10-32×3/8“
43	Burner Box Bottom
44	All 14630A Models
45	All 14630A Models
46	Catch-Main Top Strike (2 Required)
47	Manifold Panel
47	Almond
47	White
48	Strike-Main Top (2 Required)
49	Washer
50	Almond
50	White
50	Main Top
