1215W1A 02 – BACKGUARD

1215W1A 02 – BACKGUARD

Written by

in

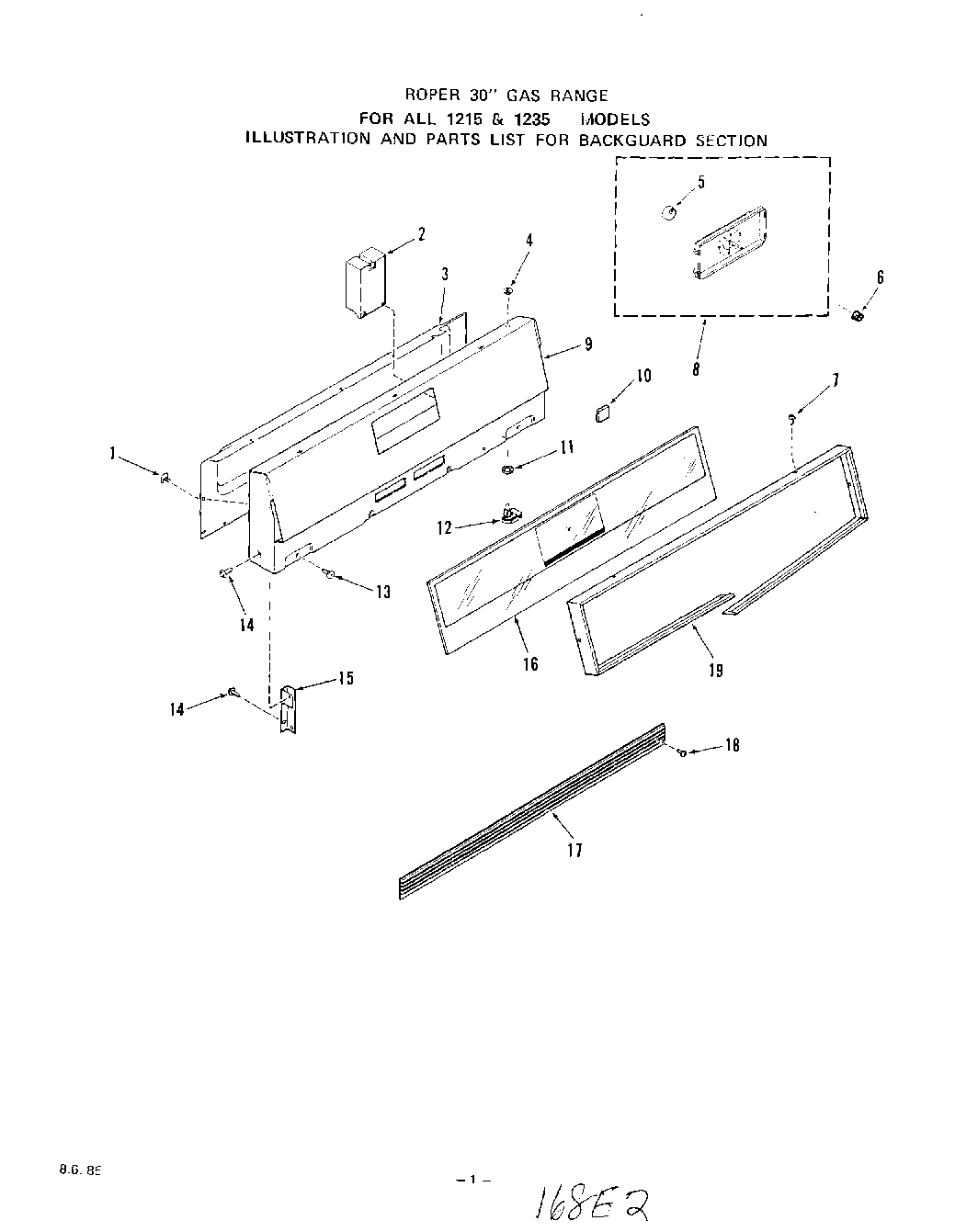

1215W1A 02 – BACKGUARD

Products

PositionProduct
1Clip
2Module – Spark Igniter
3Wire Cover-Backguard
4Knurled Nut
5Clock Motor
6Knob-Clock
7Screw 6-20×3/8“
8Clock (Inc`s. 5)
9Crosstie
10Space
11Lock Nut
12Push Switch-Oven Light
13Screw 10ABx1/2“
14Screw 10-16×7/16“
15Support-Backguard (Left)
15Support-Backguard (Right)
16Glass-Backguard
16Backguard Glass (All 1215 Models)
17Trim-Crosstie
18Screw 6-20×3/8“
19Bezel-Backguard
