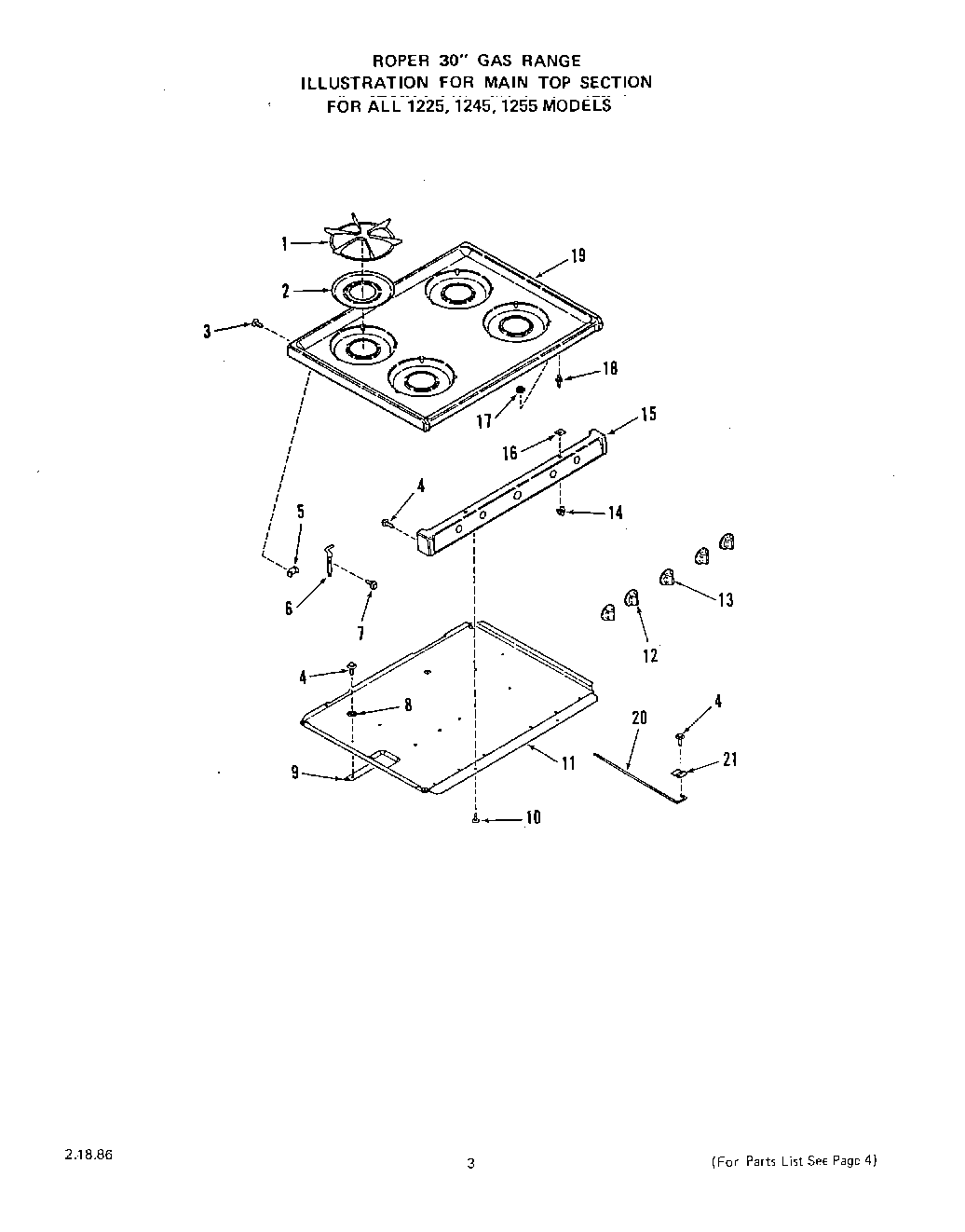

1225^2A 03 – GRIDDLE

Products

Position	Product
1	Top Grate (4 Required)
2	Spill Bowl
3	Screw-10-32×1/2“
4	Screw 10-16×7/16“
5	bracket-main top hinge (lt. or rt.)
6	Right
6	Hinge-Main Top
6	Left
7	WPL 321162
8	Washer
9	Stiffener-Burner Box Bottom
9	Rear Stiffener-Burner Box Bottom
9	Front Stiffener-Burner Box Bottom
10	Screw 10-32×3/8“
11	14351A & 14551A Models
11	14350A & 14550A Models
11	Bottom-Burner Box
12	Knob-Gas Valve (4 Req)
13	Knob-Thermostat
14	Catch-Main Top Strike (2 Required)
15	Manifold Panel
15	Manifold Panel (Golden Wheat)
15	Manifold Panel (Toast)
15	Manifold Panel (Platinum)
15	Coffee
15	Avocado
15	Manifold Panel (Almond)
15	Panel-Manifold (White)
16	Washer
17	Keps Nut 8-32
18	Strike-Main Top (2 Required)
19	Golden Wheat
19	Avocado
19	Coffee
19	White
19	Almond
19	Platinum
19	Toast
19	Main Top
20	Support Rod-Main Top
21	Clamp
