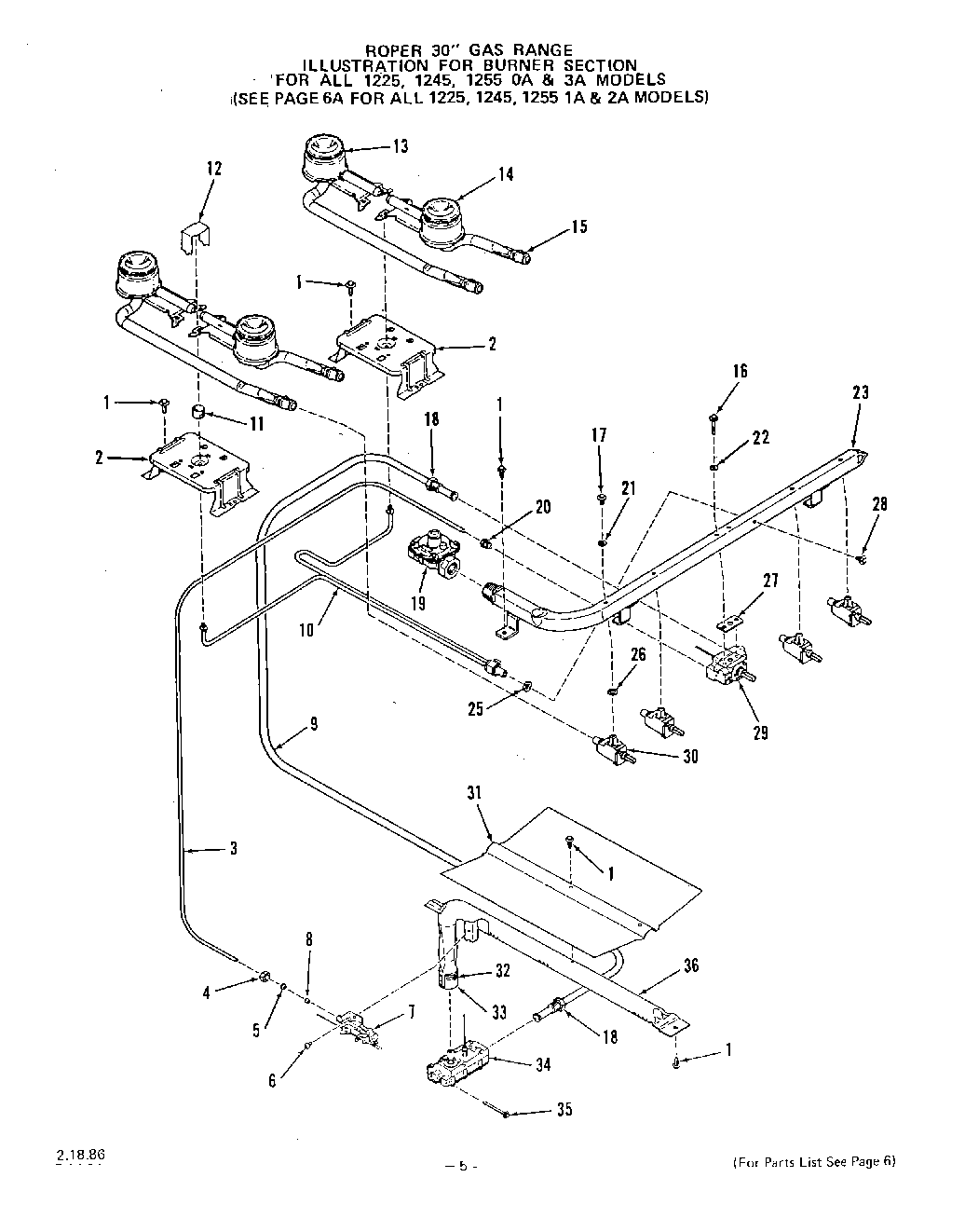

1225W1A 05 – SECTION

Products

Position	Product
1	Screw 10-16×7/16“
2	Support-Top Burner
3	Tubing 3/16“
4	Compression Nut 3/16“
5	Compression Ball Sleeve 3/16“
6	Screw 10-24×1/4“
7	Pilot Only (Inc`s 90)
8	Orifice Cup Only (For 94)
9	Tubing 3/8“
10	Pilot w/Filter
11	Pilot Cup (3 Req)
12	Top Pilot Shield (3 Req)
13	Rear Top Burner-Rt. or Lt. (Inc`s. Key 4)
14	Front Top Burner-Rt. or Lt. (Inc`s.Key 4)
15	Air Shutter
16	Mounting Screw (2 Req. for 114)
17	Mounting Screw (Inc`s 86)
18	Inverted Nut 3/8“
19	Pressure Regulator
20	Loxit Nut 3/16“
21	Gasket (For 81)
22	Gasket (For 83)
23	Manifold Pipe
25	Gasket
26	Silicone Rubber Gasket
27	Silicone Rubber Gasket
28	Mounting Screw 5/16-24
29	Oven Thermostat (Inc`s. 27)
30	Gas Valve (5 Req)
31	Baffle – Oven Burner
32	Adjustment Screw -Air Shutter
33	Air Shutter
34	Control Valve (Inc`s. 7,8)
35	Screw 10-32 x 2“
36	WPL 319255
