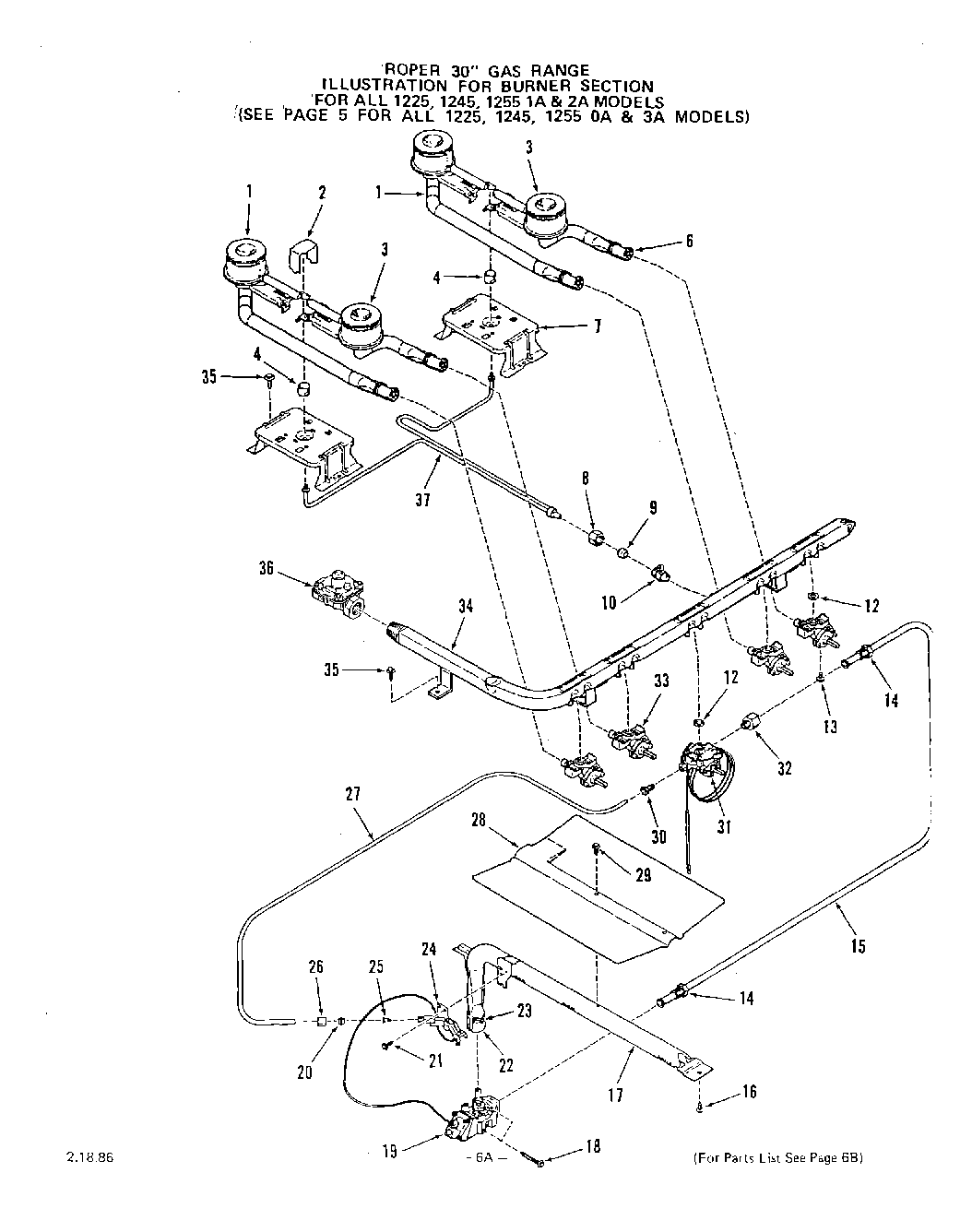

1225W1A 06 – BODY

Products

Position	Product
1	Rear Top Burner-Rt. or Lt. (Inc`s. Key 4)
2	Top Pilot Shield (3 Req)
3	Front Top Burner-Rt. or Lt. (Inc`s.Key 4)
4	Pilot Cup (3 Req)
6	Air Shutter
7	Support-Top Burner
8	Compression Nut 1/4“
9	Compression Ball Sleeve 1/4“
10	Filter-Top Pilot
12	Gasket
13	Bolt 10-24×5/16“ (10 Req)
14	Inverted Nut 3/8“
15	Tubing 3/8“ (Shut-Off to Control Valve)
17	Oven Burner (Inc`s. 21, 33 & 34)
18	Screw 10-32 x 2“
19	Control Valve (Inc. Keys 24 & 25)
20	Compression Ball Sleeve 3/16“
21	Screw 10-24×1/4“
22	Aid Shutter
23	Adjustment Screw-Air Shutter
24	Pilot Head (Inc`s. 24)
25	Orifice Cup Only
26	Compression Nut 3/16“
27	Tubing 3/16“ -Oven Therm. To Oven Control Pilot
28	Baffle – Oven Burner
30	Loxit Nut 3/16“
31	Oven Thermostat
32	Fitting-Straight 3/8“
33	Gas Valve (4 Req-Inc. Key 12)
34	Manifold Pipe
35	Screw 10-16×7/16“
36	Pressure Regulator
37	Pilot Tube (Inc. Keys 8 & 9)
